Door Control Unit User Manual
Updated until firmware 404p - 7 -

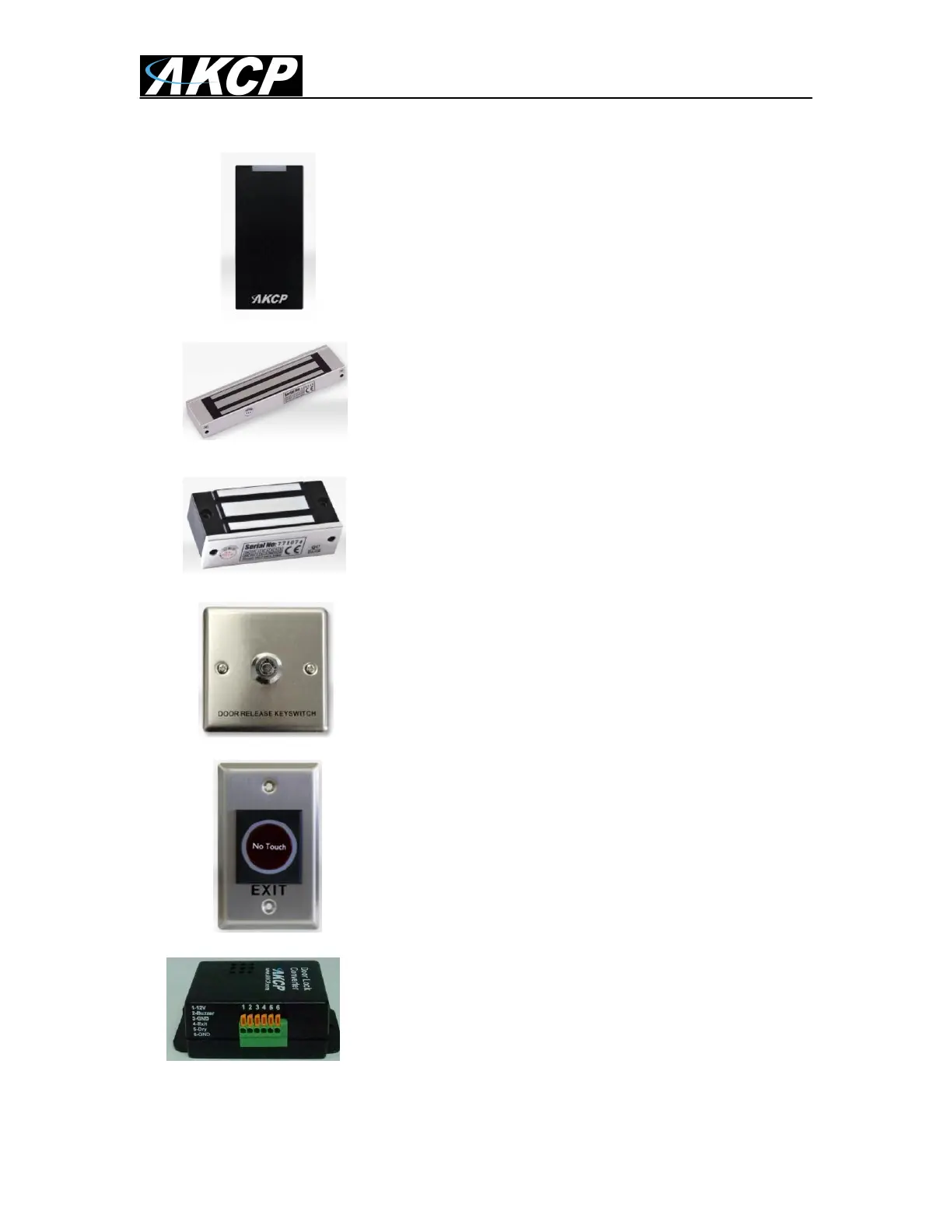

B) EM Card Reader = ACR04
Notes: The Electro Magnetic Card Readers are weather proof
and designed to be mounted outside or inside of your doors to
swipe your EM cards to gain entry and also clock in and out of
the Access Control system.
C) EM Door Lock = ACDL01
Notes: The Electro Magnetic Door Locks are mounted on your
door to control access. Because every door will be different
normally an additional custom made mounting bracket will be
required in most cases.
D) EM Cabinet Lock = ACDL02
Notes: The “mini” EM Door Lock is designed to be used with the
CCU or Cabinet Controller Unit. See more on this lock in the
CCU User Manual.
E) External Lock Override = ADCL10
Notes: The External Lock Override is mandatory for all Doors
that are controlled by the DCU. The secure over ride is controlled
with a key and cuts the power to door lock in case of a power
failure or other problem.
F) Infrared Sensor Exit Button = ACDB09
Notes: This Stainless Steel, Infrared door release button can be
used as a general exit release button or as an emergency
release switch. Includes the manual override switch.
G) Lock Converter Box
Notes: The Lock Converter Box controls the signals to the door
lock, the IR Exit Button, a remote exit button, an external buzzer
and the external lock override (see the diagram on page #10).
The remote exit button and external buzzer are not supplied by
AKCP.
