Akron Style User Manual

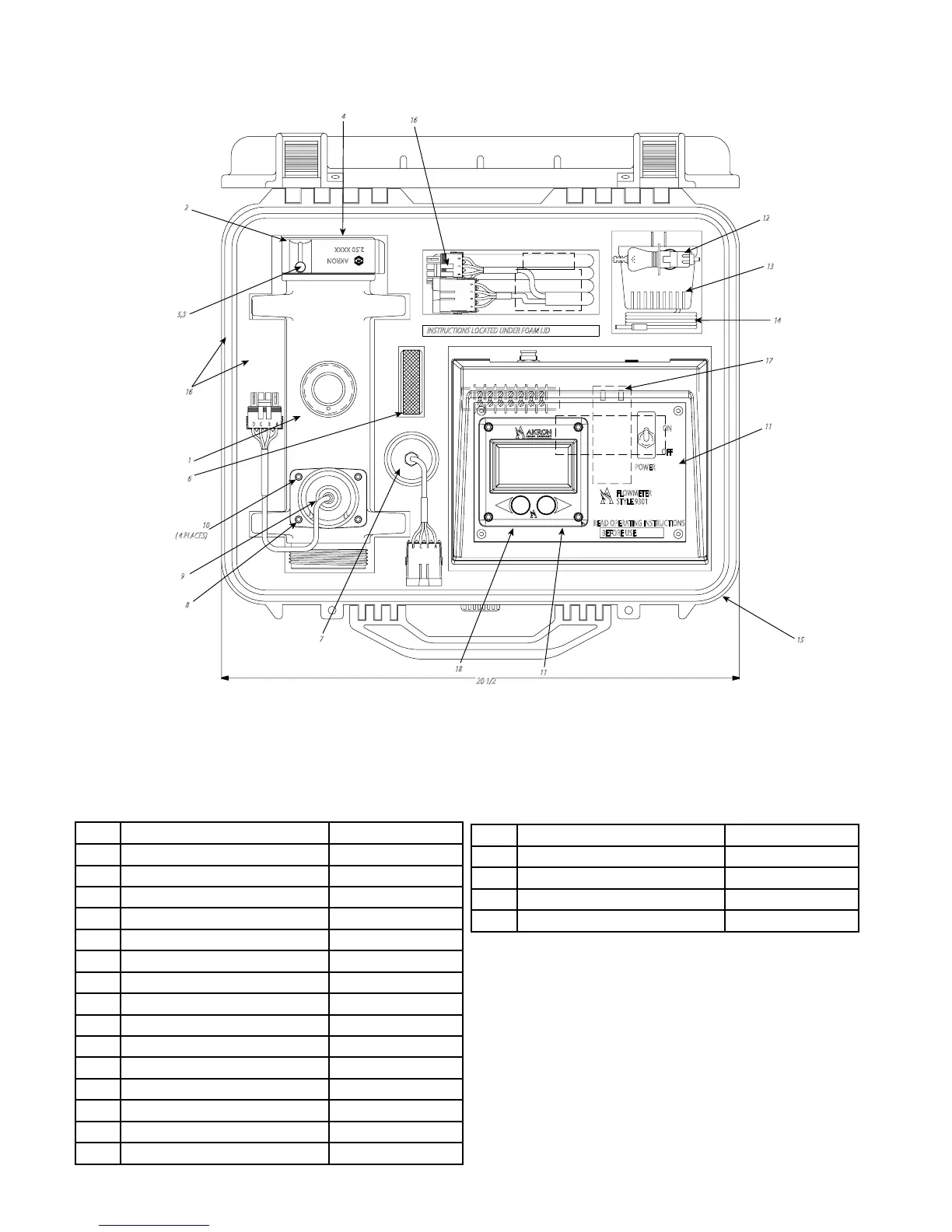

*Complete unit 93010101 as shown
m
2.50 XXXX
AKRON
1
6
16
4
2
5,3
12
13
14
11
15
7
18
11
16
17
INSTRUCTIONS LOCATED UNDER FOAM LID
D C B A
BCD
D C B A
ABCD
( 4 PLACES)
READ OPERATING INSTRUCTIONS
BEFORE USE.
POWER
ON
OFF
FLOWMETER
STYLE 9301
20 1/2
10
9
8
NO. ITEM PART NO
1 Body (2-1/2” NH) 115498
2 Swivel (2-1/2” NH) 101420
3 Swivel Plug 742023
4 Gasket 717043
5 Ball Bearings (39) *
6 Retaining Nut 115497
7 Flow Sensor 93000046
8 Pressure Transducer Guard 115499
9 Pressure Transducer 93000050
10 Screw (4) 765029
11 Control Unit (PSI/GPM) (LPM/kPa) 93151000
12 12VDC Vehicle Power Adapter 707390
13 110 VAC Charger 707386
13 240 VAC Charger 707497
14 Cable for Battery Charger 707387
NO. ITEM PART NO
15 Case & Inserts 707420
16 Pressure & Flow Cable 707385
-- Replacement Battery 93010026
-- Spacer 770330
* Packet of 50 Ball Bearings - P/N 109041
