Akron Style User Manual

READ OPERATING INSTRUCTIONS
BEFORE USE.
POWER
ON
OFF
9315
FLOW METER
FLOW CABLE
PRESSURE CABLE
YELLOW
BLACK
GRAY
BLACK
VIOLET
ORANGE
SHIELDS
BLACK (PIN 1)
WHITE (PIN 2)
RED (PIN 3)
GREEN (PIN 4)
BLACK (PIN 5)
WHITE (PIN 6)
RED (PIN 7)
POWER CABLE
+
+
+
-
-
-
BLACK
RED
POWER
ON / OFF
3
1 1/4
3/8
1
6
5
2
3
1011
8
13
14
15
16
4
12
7
8
12
11
9
5
10
8
8 3/8
10
4 45/64 REF
4 1/8
7
TERMINAL STRIP
STRIP JACKET 3 1/2 "
STRIP WIRES 1/4 "
CRIMP 22-18 GA. FORK
TERM TYP (7)
#9919 BELDEN 20 GA.
6" LG. STRIPPED 1/4 "
22-18 GA. FORK TERM
TYP (7)
RED WIRE
BLACK WIRE
BATTERY
17
18
19
FLOWMETER
STYLE 9301
20
21
27
22
23
24
25
29
28
26

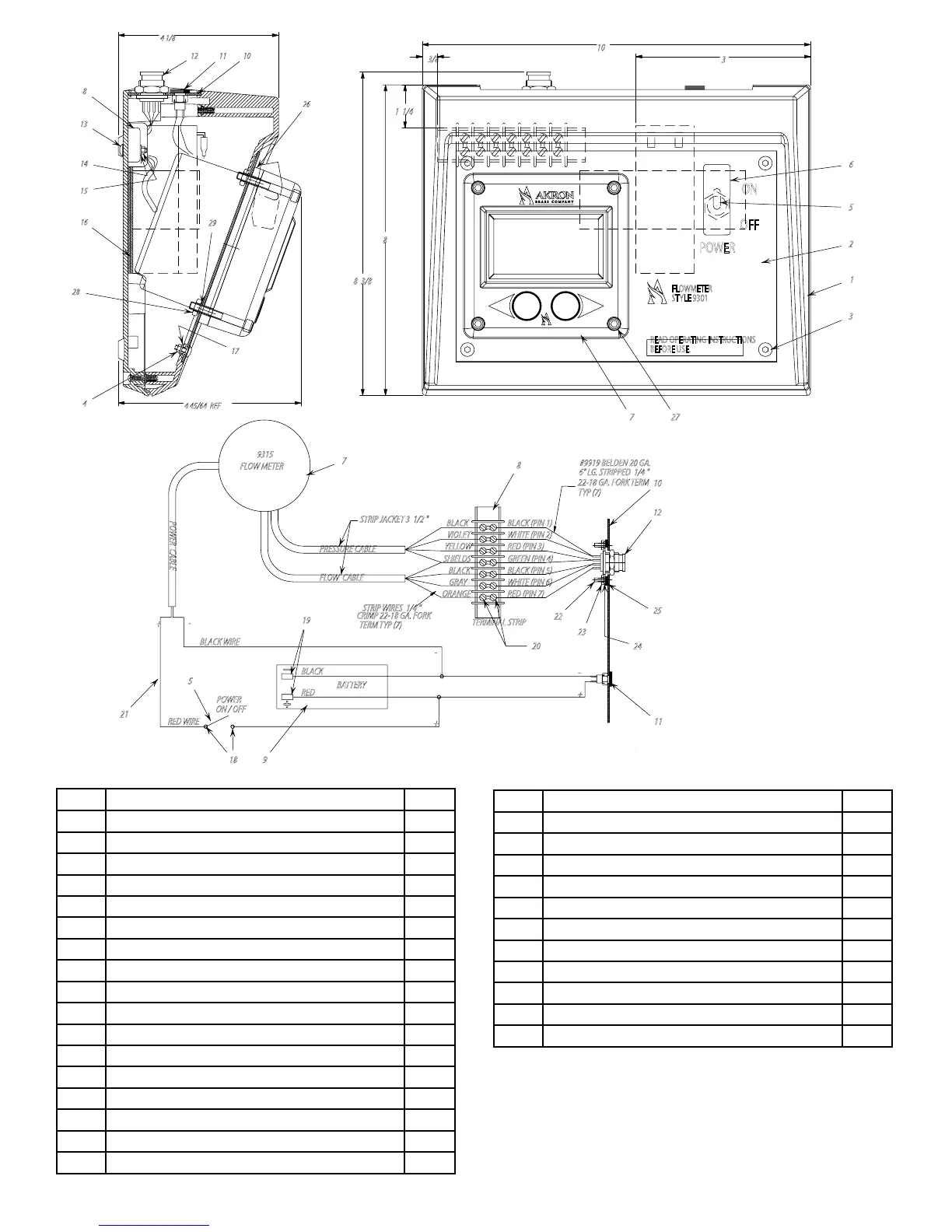

ITEM DESCRIPTION QTY
1 PLASTIC ENCLOSURE 1
2 FACE PLATE 1
3 SCREW 4
4 NUT 4
5 MICRO SWITCH 1
6 TOGGLE GUARD 1
7 CONTROLLER FLOW METER GPM/PSI, LPM/KPA 1
8 TERMINAL STRIP 1
9 12V BATTERY 1
10 REAR MOUNTING PLATE 1
11 JACK 1
12 PANEL PLUG 1
13 BUTTON HEAD CAP SCREW 2
14 SPLIT LOCK WASHER 2
15 NUT 2
16 VELCRO STRIP 18”
17 SPLIT LOCK WASHER 4
ITEM DESCRIPTION QTY
18 RING 2
19 FEMALE DIS 2
20 FORK TERMINALS 14
22 SCREW 4
23 NUT 4
24 SPLIT LOCK WASHER 4
25 SQUARE FLANGE ADAPTER 1
26 SPACER 1
27 WASHER 4
28 HEX NUT 4
29 SPLIT LOCK WASHER 4
