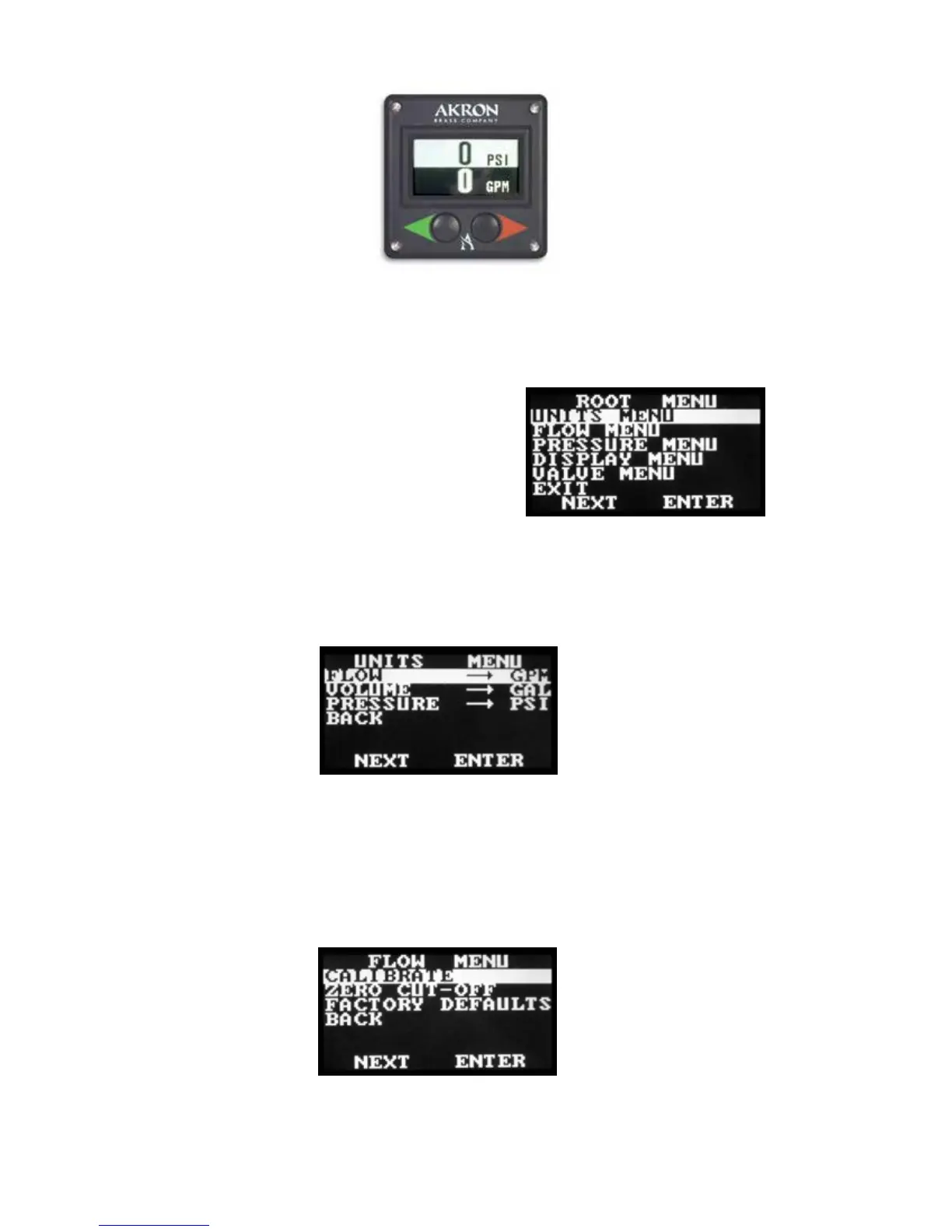

Once powered up a quick AKRON logo will appear, followed by a screen showing what device(s) have been connected.
Figure #1 shows Pressure Sensor and Flow Sensor connected.
To access the ROOT (MAIN) MENU, hold down both buttons for approximately 15 seconds to access the ROOT MENU.
Note: While holding both buttons TOTAL VOLUME will appear. This should be ignored during setup.
However, once owing, holding both buttons for approximately 2 seconds will provide the total ow since the last start up.
The ROOT (MAIN) MENU contains 5 Sub Menus:
Units Menu
Flow Menu
Pressure Menu
Display Menu
Valve Menu
Root Menu
To navigate through all menus the left button (SELECT) will highlight an individual line.
Once highlighted, the right button (ENTER) will open the selected menu.
EXPLANATION OF INDIVIDUAL MENU SCREENS
UNITS MENU
Units Menu
This Menu is used to select GPM or LPM, Gallons or Liters and PSI or kPa.
Example: With FLOW highlighted, press ENTER to choose between GPM and LPM. Once the correct selection is made, press NEXT to move to the next
menu item.
When nished, press NEXT to move to the BACK selection. Press ENTER to return to the ROOT (MAIN) MENU.
FLOW MENU
Flow Menu
The FLOW MENU provides the ability to set the pipe size and add a “zero cuto” for the ow.
SELECT the pipe size for the location of the Flow Sensor (normally 2.5").
To Next Page
