STEP 11
Turn o supply power before wiring ALL200. Turn o motor switch in square box. Wire motor switch
with 110V wiring (cannot wire to an arc fault breaker). e 110V motor feed must be kept separate from
110V light switch leg. Keep motor and light neutrals separate. e lift’s motor neutral is white and 14
gauge. Motor draws 2 amps or less at 110V. See Diagram G. https://youtu.be/7TIXOAAKvUM?t=25s
Never wire the ALL200 improperly. Make sure electricity is turned o when installing and/or
performing maintenance on the ALL200. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.
STEP 12
Turn o supply power before wiring ALL200. Turn o light switch in square box. Wire light switch with
110V wiring. e 110V light switch leg can not be used as motor feed. Keep light and motor neutrals
separate. e lift’s light neutral is white and 12 gauge. If wired properly, a dimmer may be used. Wire a
two-circuit light package on separate phases for lights (2 hots - 1 neutral). See Diagram G.
https://youtu.be/7TIXOAAKvUM?t=25s
Never wire the ALL200 improperly. Make sure electricity is turned o when installing and/or
performing maintenance on the ALL200. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.

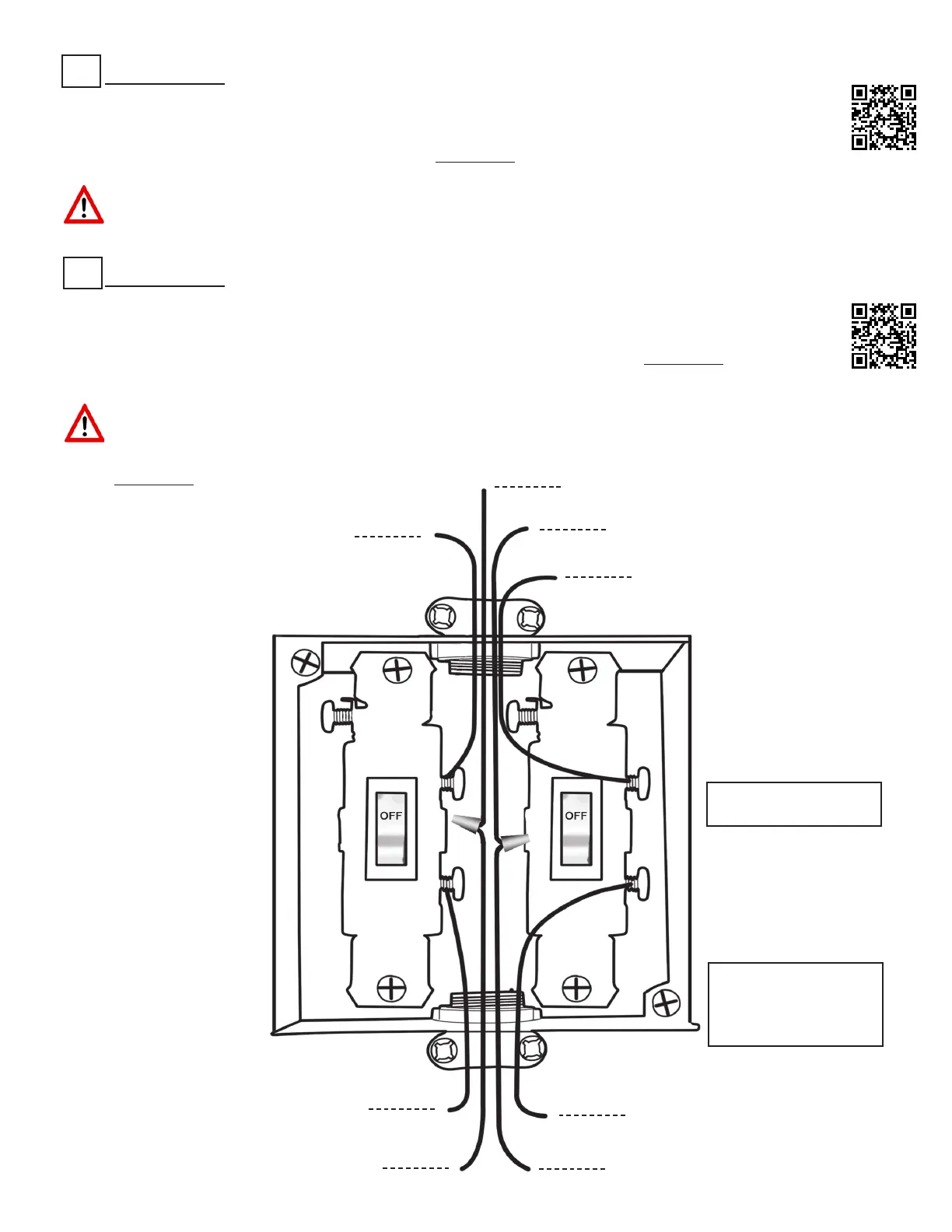

12 Gauge Light Neutral
14 Gauge Motor Neutral
14 Gauge Motor Hot
12 Gauge Light Hot
110V House Hot
For Motor
110V House Neutral
For Motor
110V House Neutral
for Light
110V House Hot
for Light
Diagram G
Light Motor
***Incoming feed for
motor circuit cannot be
wired to an Arc Fault
Breaker.***
***Motor draws 2 amps
or less at 110V***
To Next Page
