OPERATION

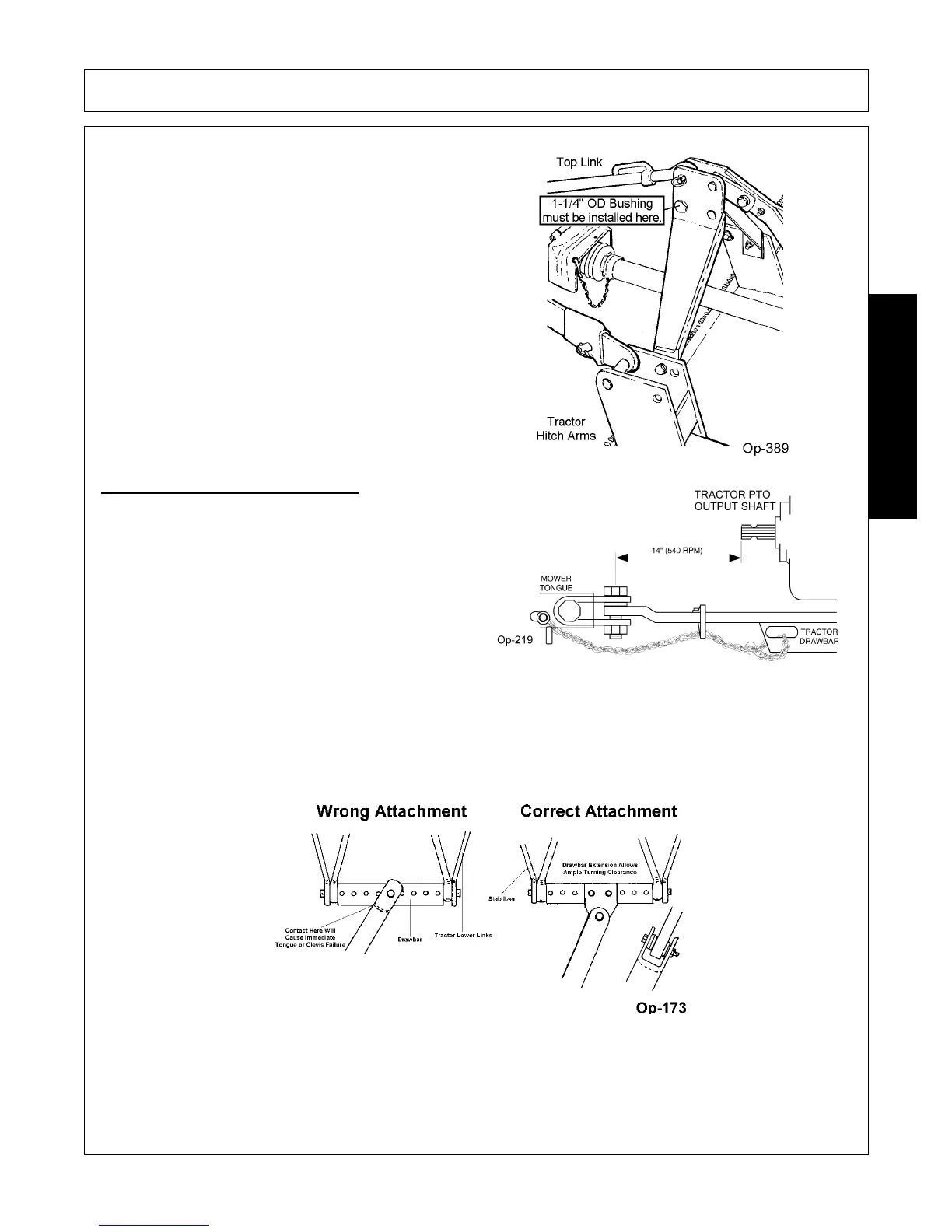

The optional Heavy-Duty CAT II-III Quick Hitch
can be mounted to tractor’s with either a CAT II or
III 3-Point hitch or tractor’s equipped with a CAT II
or III Quick Hitch.
3.5 Drawbar-Pull Type Mower
For equipment operating at 540 RPM, the tractor
drawbar must be positioned at a 14” distance from the
hitch point to the PTO shaft end for proper operation
and minimal wear to the driveline.
If attaching the mower tongue clevis to a 3-point hitch drawbar supported by the lower lift arms, the attaching
point must be extended past the main bar to allow for turning without binding the clevis and bar. Lift arm
stabilizers must be used with this type of drawbar to prevent the mower from swaying from side to side.
OPS-R- 0061
