Doorbell Transformer
Main Power Low Voltage AC
Digital Door Chime
Doorbell Button
Doorbell Transformer
Main Power Low Voltage AC
Power Resistor
(10 Ohm, 10 Watt)
Doorbell Camera
WARNING: This setup is designed for testing and demonstration purposes only. Failure to install a
resistor (10 Ohm, 10 Watt) when a chime is not present may result in damage to the doorbell camera.

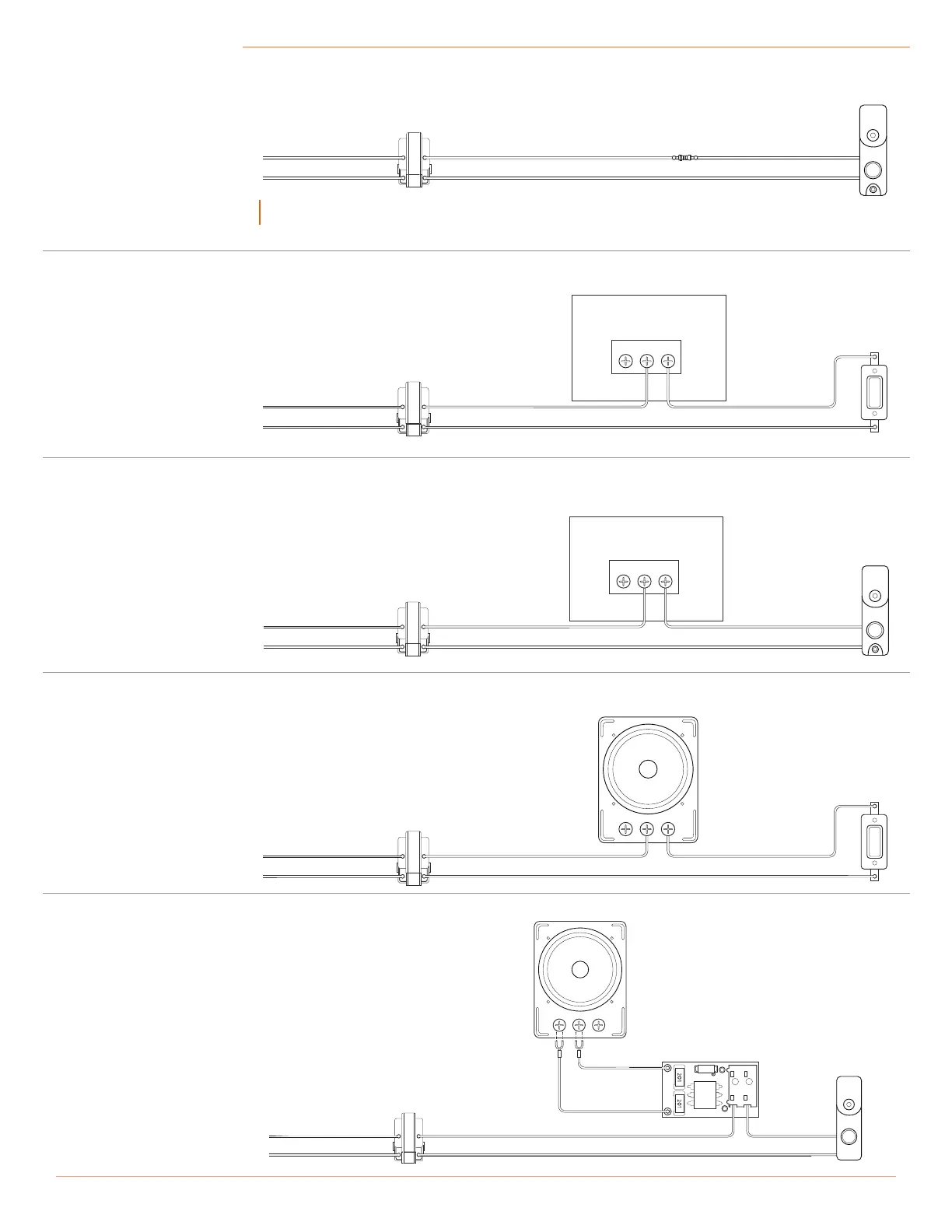

POWER CONFIGURATIONS
No Chime – With Doorbell Camera – Resistor Required*
Doorbell Transformer
Main Power Low Voltage AC
Mechanical Door Chime
Doorbell Button
Doorbell Transformer
Main Power Low Voltage AC
Mechanical Door Chime
Doorbell Camera
Digital Chime – Before Installation
Mechanical Chime - With Doorbell Camera
Doorbell Transformer
Main Power Low Voltage AC
Digital Door Chime
Digital Doorbell Adapter
Doorbell Camera
Mechanical Chime – Before Installation
Digital Chime–With Doorbell Camera
