Troubleshooting
1 No rinse/ush water :
• check the fuse
• press the “before use” button to check that power is being supplied to the
control panel and the ush pump (single system) or the solenoid valve (in case
of centralized systems)
2 Discharge pump not working :
• check the fuse
• turn to a minimum the trimmer shaft on the control panel back side and then
press the “after use” button, to check that power is being supplied to the control
panel and the discharge pump
• after verifying the previous points, inspect the discharge pump located under
the bowl in this way :
• disconnect the main supply from the bowl
• remove both oor locking screws from the bowl (the two screws
located on the rear side of the bowl)
• by using a screwdriver or a pipe wrench loosen the metal clamp
and remove the rubber coupling sleeve between bowl and pump
• check that the impeller may freely turn and no objects are trapped
inside the pump
• re-assemble the coupling sleeve, tighten the clamp and x the
bowl to the oor again
3 In case of repeated breakage of the fuse :
• follow the same instructions as Point 2
Technical specications
Voltage : 12/24 Volt DC
Flush pump consumption (single) : 9 A/ 4.5 A
Solenoid consumption (centralized) : 1 A / 0.5 A
Discharge pump consumption : 18 A/ 10 A
Flush pump : 1.2 m (4') self-priming, capacity 8 – 12, MAX 18
lt./min (2 – 3, MAX 5 USGPM).
Discharge pump : centrifugal, capacity 200 lt./min (53 USGPM).
Inlet pipe : rubber pipe minimum internal dia. 19 mm (¾")
Discharging head : 5 meters upright (16')
Discharge pipe : rubber pipe minimum internal dia. 25 mm (1")
RECOMMENDED 38 mm (1½").
2
6
3
5
4

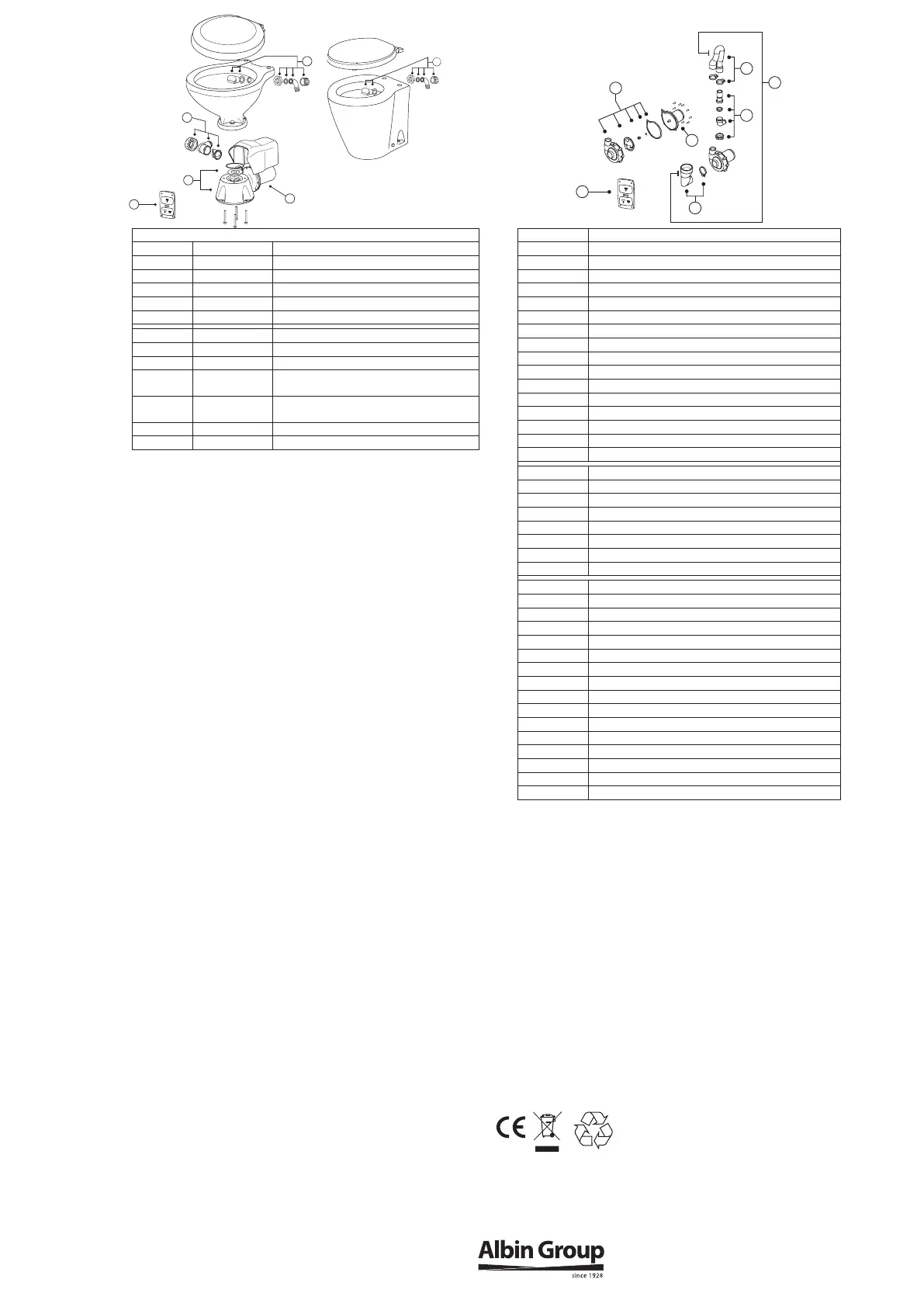

Common spares
part # Description
07-99-063 2 Base Group
07-99-040 3 Motor Group Silent El. 12V.
07-99-041 3 Motor Group Silent El. 24V.
07-99-064 4 Outlet Elbow
07-99-060 5 Intake Elbow
07-99-069 A Inlet Pump Group Design / Premium
07-99-082 B Motor Premium/Design Silent 12V
07-99-083 B Motor Premium/Design Silent 24V
07-99-074 C Outlet Elbow Electric/Design/
Premium Low
07-99-084 C Oulet Elbow Kit For Design Silent/
Premium
07-99-085 9, 11 Outlet Hose Kit For Design Silent
07-99-068 gaskets in A, C Complete Gasket Kit Design/Premium
part # Description
07-03-010 Silent Electric Compact 12V
07-99-035 Compact Seat
07-66-021 Silent Electric Conversion Kit 12V
07-99-054 Bowl Compact
07-03-011 Silent Electric Compact 24V
07-99-035 Compact Seat
07-66-022 Silent Electric Conversion Kit 24V
07-99-054 Bowl Compact
07-03-012 Silent Electric Comfort 12V
07-99-036 Comfort Seat
07-66-021 Silent Electric Conversion Kit 12V
07-99-056 Bowl Comfort
07-02-013 Silent Electric Evo Comfort 24V
07-99-036 Comfort Seat
07-66-022 Silent Electric Conversion Kit 24V
07-99-056 Bowl Comfort
07-03-045 Design Toilet Standard Silent 12V
07-99-035 Compact Seat
07-93-076 Design Silent Electric Conversion Kit 12V
07-99-67 Bowl Design Toilet
07-03-046 Design Toilet Standard Silent 24V
07-99-035 Compact Seat
07-93-077 Design Silent Electric Conversion Kit 24V
07-99-67 Bowl Design Toilet
07-04-014 Toilet Silent Premium 12V
07-99-037 Premium Seat SC
07-94-078 Bowl Premium Toilet
07-94-079 Comlete Pump Kit Premium 12V
07-04-015 Toilet Silent Premium 24V
07-99-037 Premium Seat SC
07-94-078 Bowl Premium Toilet
07-94-080 Comlete Pump Kit Premium 24V
07-04-016 Toilet Silent Premium Low 12V
07-99-037 Premium Seat SC
07-94-081 Bowl Premium Low Toilet
07-94-079 Comlete Pump Kit Premium 12V
07-04-017 Toilet Silent Premium Low 24V
07-99-037 Premium Seat SC
07-94-081 Bowl Premium Low Toilet
07-94-080 Comlete Pump Kit Premium 24V
Spare parts
Warranty
Two year limited warranty.
4
Silent Electric
Compact 12 V • 17 A 07-03-010
Compact 24 V • 8 A 07-03-011
Comfort 12 V • 17 A 07-03-012
Comfort 24 V • 8 A 07-03-013
Design Silent Electric
Design 12 V • 19 A 07-03-045
Design 24 V • 10 A 07-03-046
Premium
Electric Silent 12 V • 30 A 07-04-014
Electric Silent 24 V • 16 A 07-04-015
Electric Silent Low 12 V • 30 A 07-04-016
Electric Silent Low 24 V • 16 A 07-04-017
Waste handling & material recycling
At the product's end of life, please dispose of the product
according to applicable law. Where applicable, please disassemble
the product and recycle the parts according to material.
Albin Group AB
Kämpevägen 17
55302 Jönköping, Sweden
info@albin.group
www.albin.group
Silent Electric pump
Standard Electric pump
5
4
7
6
7
9
12
8
14
4
8
9
11
13
10
15
2
5
Silent Electric pump
Standard Electric pump
5
4
7
6
7
9
12
8
14
4
8
9
11
13
10
15
A
B
C
