Alcatel-Lucent 4080 IP-DECT
Installation Manual
8AL90850USAAed01 22

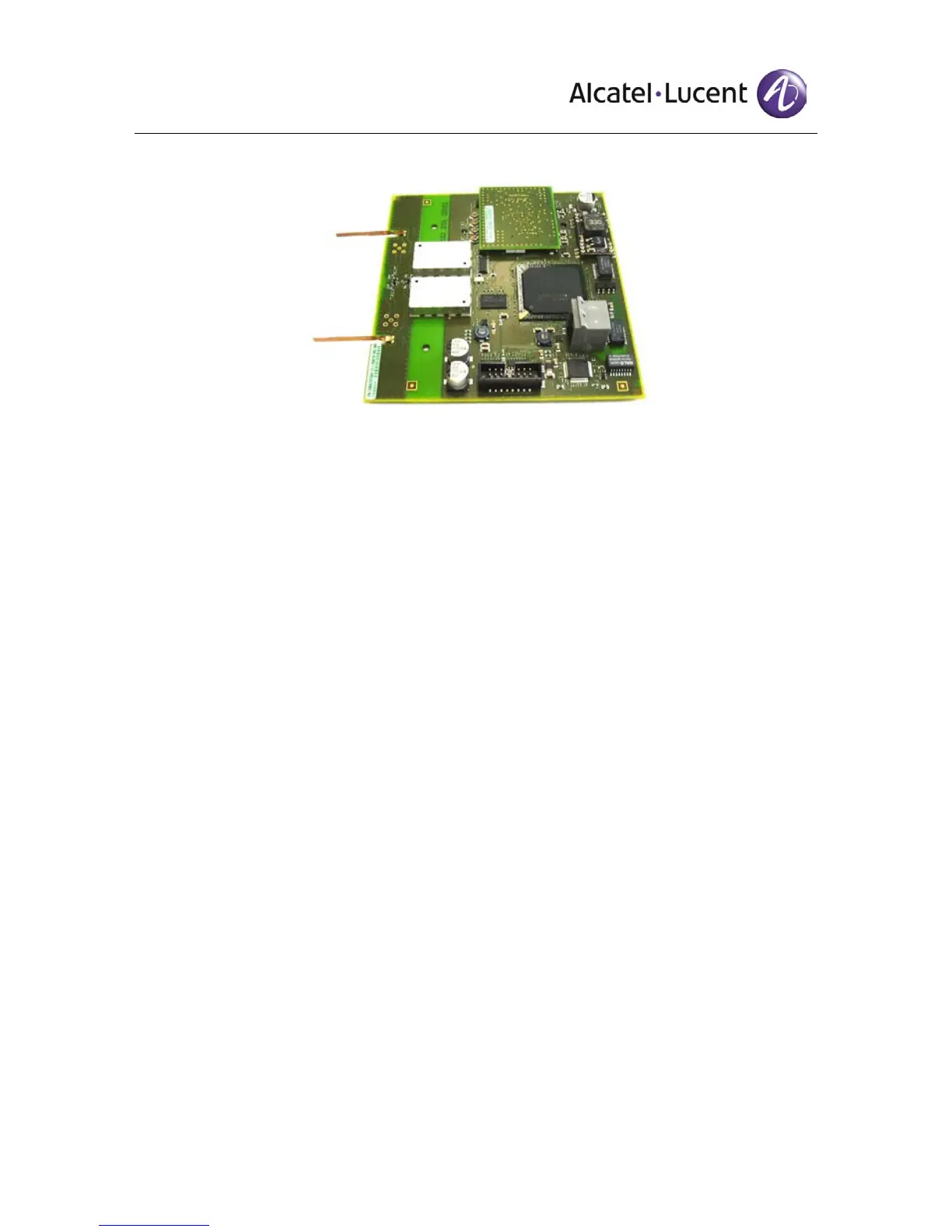

Figure 12. G.729 Daughter Board on the Main Board
7. Put the 4080 IP-DECT together in the opposite way, mounting the PWB into the
cabinet and assembling the cabinet. Do not forget to mount the two screws back
into the rear side of the cabinet.
