4 MOUNTING THE G.729 DAUGHTERBOARD
Follow the step-by-step procedure below, to install the G.729 daughter board.
PROCEDURE: “Adjusting the Antenna position”.
Actions
1. Make sure that you have the G.729 Daughter board.
2. Open the cabinet. Use steps 4 till 6 in Chapter 3
3. Take the PWB out of the cabinet.
Note: Mind the light conductor for the LEDs. It can drop off!

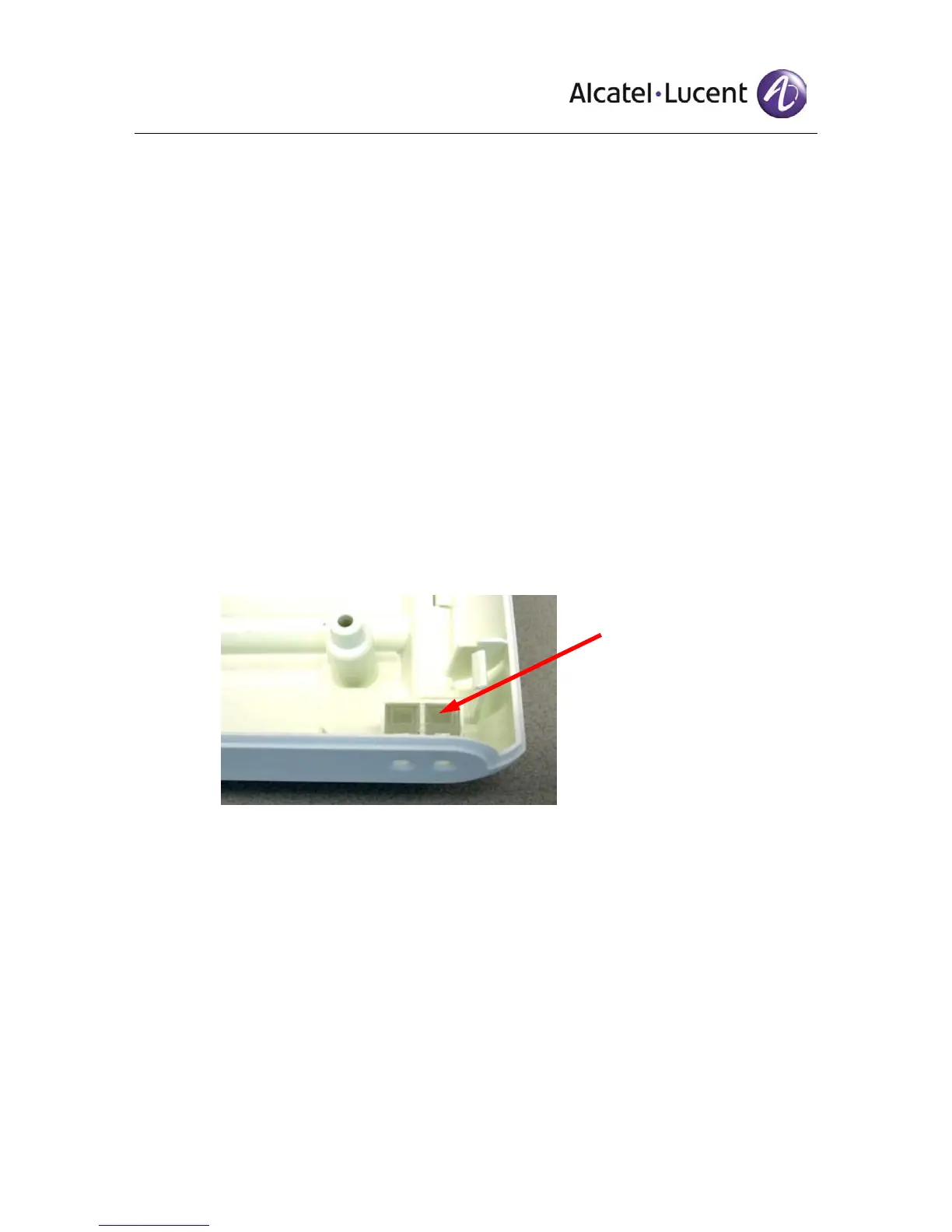

Figure 9. Light conductor for LEDs
4. Now you should have the 4080 IP-DECT PWB and the G.729 Daughter Board as
separate items.
5. Remove the protection foil from the sticky part on the G.729 Daughter Board.
LED Light conductor
