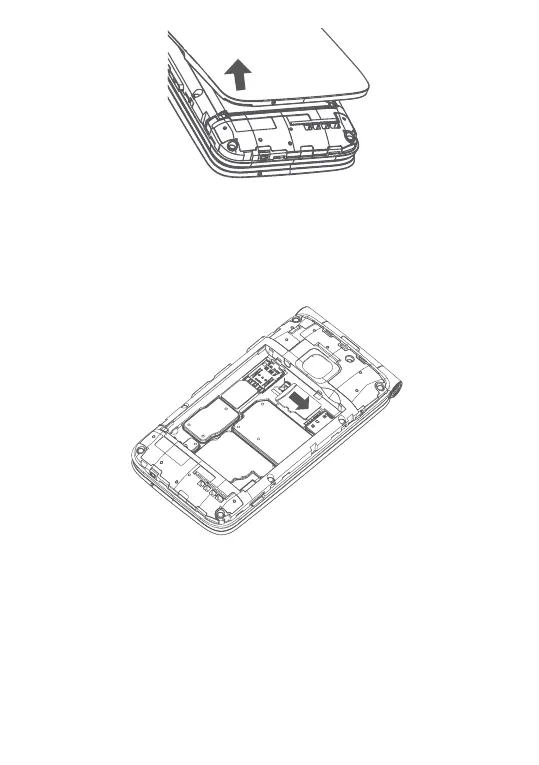

Step 1. With the device facing down, remove the back cover from the
bottom left corner. Use your fingernail to carefully lift the cover away from
the phone body.
Step 2. Remove the battery using your fingernail to lift from the top right
corner.
Step 3. To insert microSD card, push the microSD card into the card slot
with the gold-colored contacts facing down.
To remove the microSD card, push down the plastic tab and slide out the
microSD card.
Step 4. Re-install the battery by aligning the gold contact points of the
battery with the gold contact points of the device. It only fits one way. Press
down to snap in place.
Step 5. Carefully align the back cover with tabs and press into place. It
only fits one direction
Step 6. Charge your device by inserting the small end of the charging cable
into the charger port as shown, then plug the AC adapter into a wall outlet.
Charge your device fully before turning it on and starting the set up
process.
Note: Do not conduct the set up process while the device is charging.
To reduce power consumption and energy waste, disconnect your
charger when the battery is fully charged, and switch off Wi-Fi,
Bluetooth and other wireless connections when they are not in use.
In Settings you can also lower the brightness of the screen, and
shorten the length of time before the screen goes to sleep.
Power on/off your device
To power on your device, press and hold the End key.
To power off your device, press and hold the End key, then press the
Center Soft key to select “Power off”.
