EN 1. OVERVIEW
1.1 Weather station:
WEATHER
ABS REL
ALERT
OUT TEMP
ALERT
RAIN
RESET
AA 1,5V
AA 1,5V
AA 1,5V
AA 1,5V
Hi
Hi
A
m
P
m
SINCE
m
D
D
m
FORECAST
BAROMETER-ABSREL
m
B/
HPA
mm
HG
INHG
KNOTS
K /H
m
m
PH
m
/S
WIND DIRECTION
WIND SPEED
WIND GUSTWINDCHILL
OUTDOOR
24HR
AX
m
IN
m
TOTAL
TODAY
DAYS
AX
m
RAINFALL
mm
INCH
mm
INCH
INDOOR
OUTDOOR
Hi
LO
MODE
SET
RAIN HISTORY
AL ON/OFF
RAIN CLEAR
RAIN SINCE

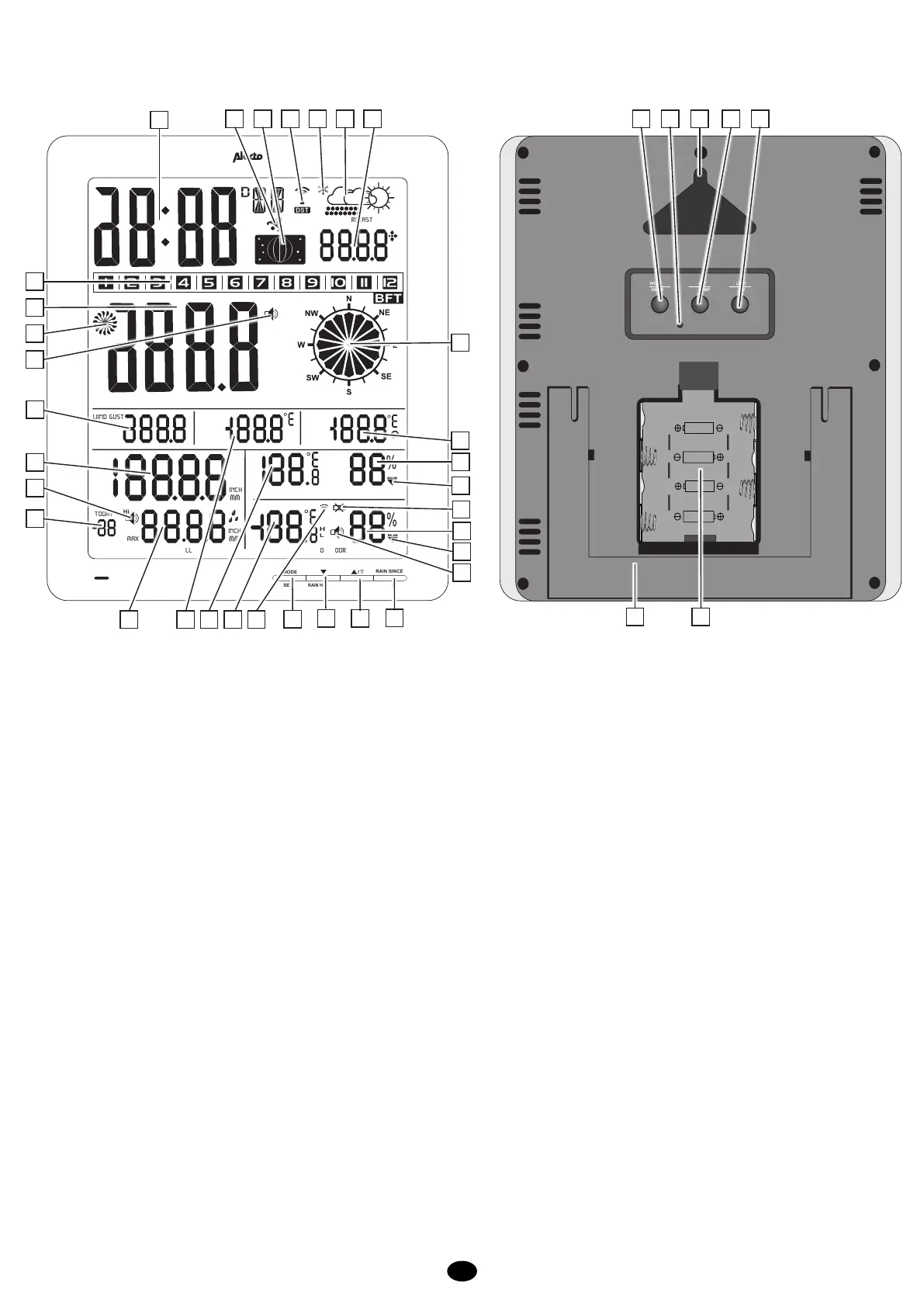

1. time and date display (press mode to exchange)
2. alarm function icon
3. moon phase icon
4. DCF-77 reception icon
5. risk of frost alert icon
6. weather forecast animation icons
7. air pressure display
8. wind force indication in Beaufort
9. wind speed value in knots, km/h, mph or m/s.
10. active wind indication
11. function not available
12. value of actual wind gusts
13. total amount of rainfall in inch or mm.
14. high amount of rainfall alert icon
15. number of days looked back in the history
16. wind direction indication
17. maximum and minimum outdoor temperature va-
lues measured
18. indoor humidity
19. humidity lower than measurement range icon
20. outdoor unit low battery capacity indication
21. outdoor humidity
22. humidity lower than measurement range icon
23. high and low outdoor temperature alert
24. amount of rainfall
25. wind chill
26. indoor temperature
27. outdoor temperature
28. DCF-77 reception icon
29. mode/set button
30. rain history / down button

32. rain since / rain clear button
33. weather / absolute-relative button
34. reset button
35. suspension hole
36. alert / out temp button
37. alert / rain button
38. table stand
39. battery compartment
