Alecto WS-3800 - Technical Specifications; Declaration of Conformity

42
7. TECHNICAL SPECIFICATIONS
Weather station:
indoor temperature measurement range: -10°C ~ +50°C (32°F ~122°F)
humidity measurement range: 20% ~ 99%
clock synchronization signal: DCF-77 Frankfurt.
power: battery 4 x 1,5V type AA (LR6) alkaline
display dimensions:: 165 x 195mm
dimensions:: 210 x 240 x 25mm
Outdoor sensor:
outdoor temperature measurement range: -20 ~ +50°C
humidity measurement range: 20% ~ 99%
mounting on pipe maximum Ø 37mm
cable length: 9,5 meter
power supply: battery 2 x 1.5V size AA (LR6), preferably Lithium batteries
transmission frequency: 868.34 MHz
transmission power: < 1 dBm
range: ± 30 meter
dimensions:: 70 x 135 x 25mm

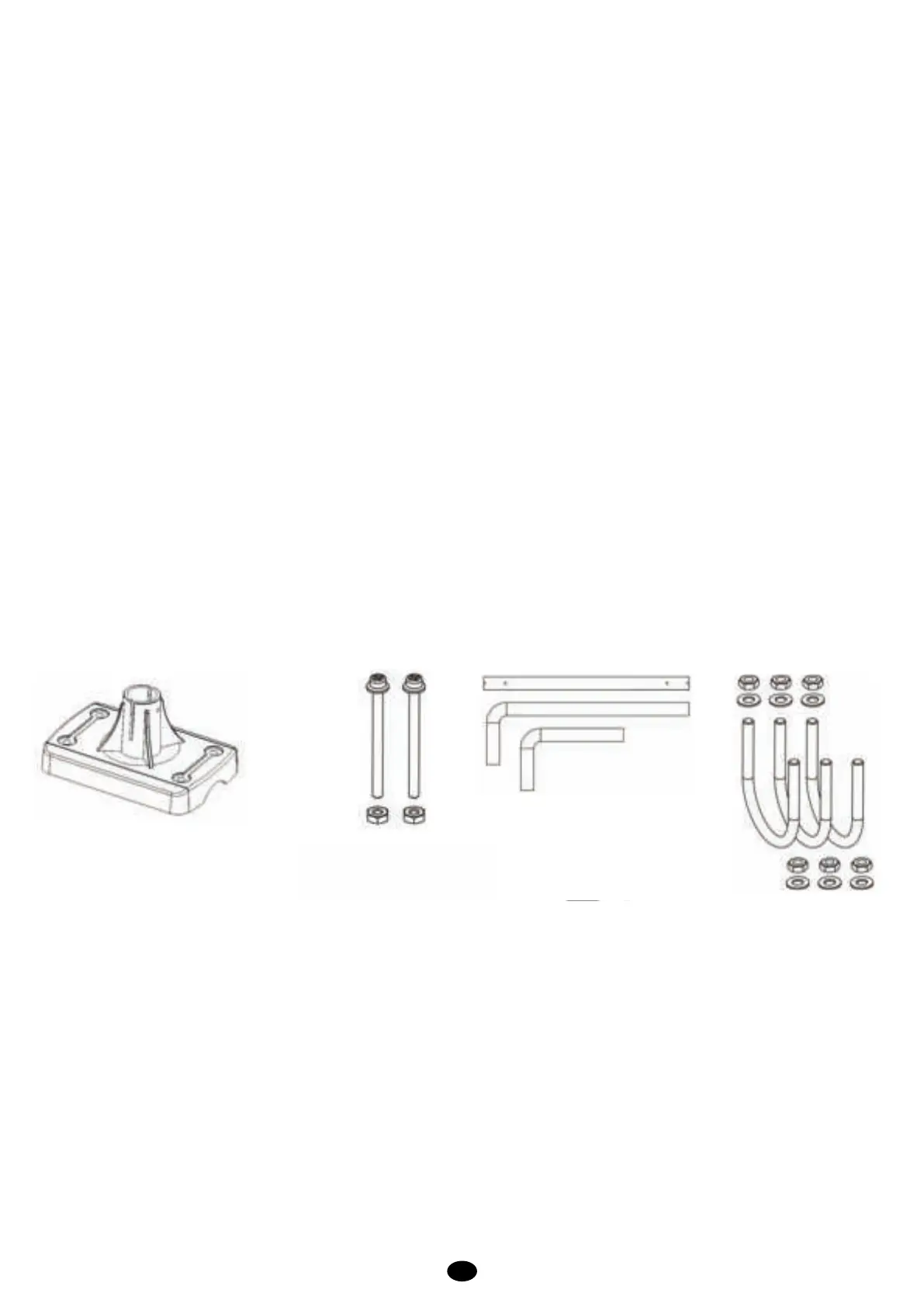

8. ACCESSORIES
9. DECLARATION OF CONFORMITY
Hereby, Hesdo declares that the radio equipment type Alecto WS-3800 is in compliance with directive 2014/53/
EU. The full text of the EU declaration of conformity is available at the following internet address:
http://DOC.hesdo.com/WS-3800-DOC.pdf
