17
WIRING CONNECTIONS

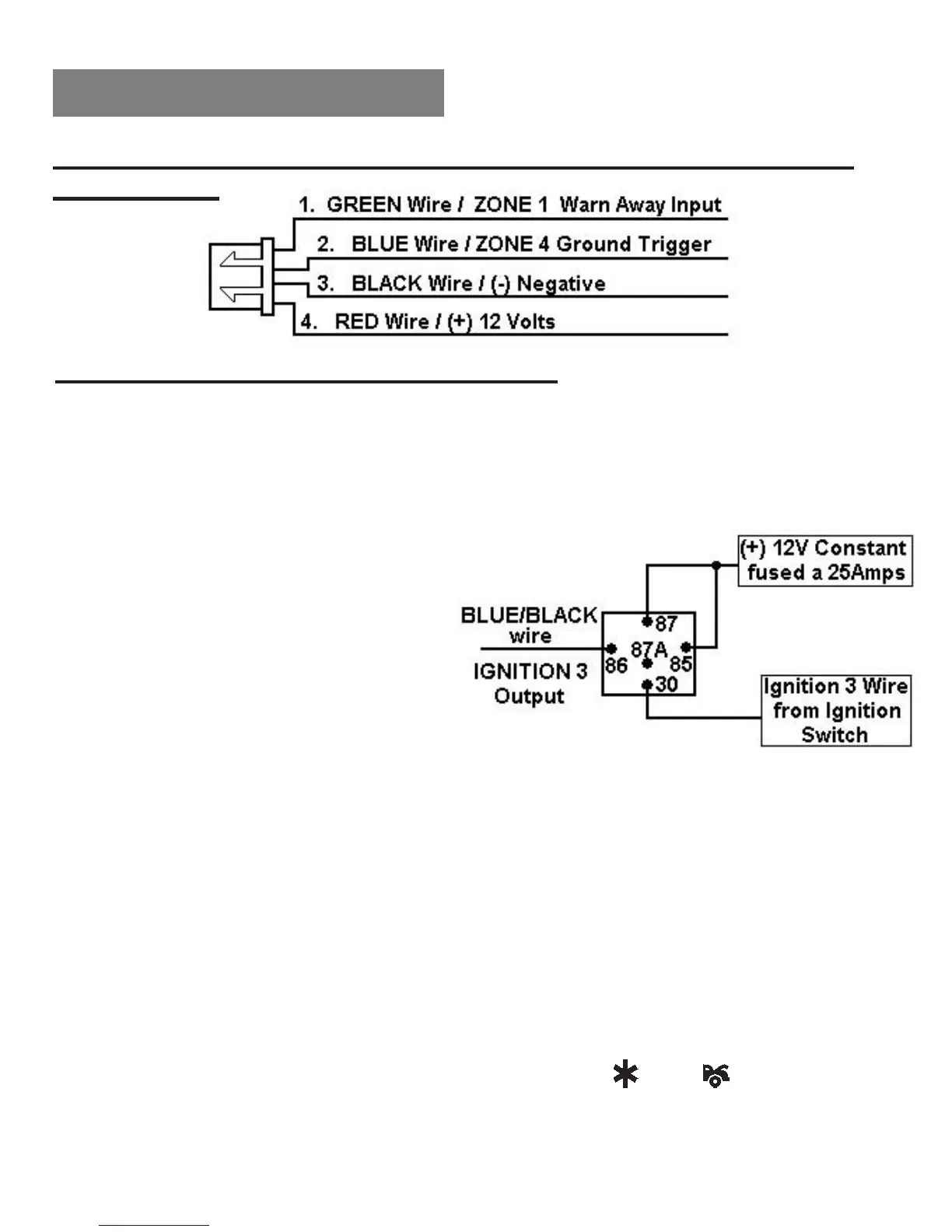

H7: 4 PIN ORANGE CONNECTOR FOR 2 STAGE SHOCK SENSOR
(ZONE 1 / 4)
H8: 10-PIN WHITE WIRING HARNESS:
H8/1 BLUE / BLACK Wire (Ignition 3 Output)
This wire provides a 200mA (-) negative ground output that becomes
active 4 seconds before the remote start unit initializes, and remains
grounded while running.
Ignition 3 output:
Some newer vehicles use a
third ignition wire which is
required to start and keep
the vehicleî s engine running.
If this is the case, wire an
IGN 3 relay (not supplied) as
shown below: Do not connect
any vehicle circuits together, they
are isolated for a resaon.
H8/2 BLACK/VIOLET
Wire
(Timer Control Channel 6 Programmable Output)
The BLACK/VIOLET wire provides a 200mA (-) negative programmable
ground output for a variety of optional devices. The output on the
BLACK/VIOLET wire is programmable from 1 to 120 seconds. (See
programming instructions.) This wire can be used to open a sunroof,
or any power device you choose to control. The BLACK/VIOLET wire
must be wired to a relay when powering any devices. Note: factory
default setting is a 1 second momentary ground. (See operating
instructions.)
To activate this feature press the transmitters
and
buttons at the
same time.
