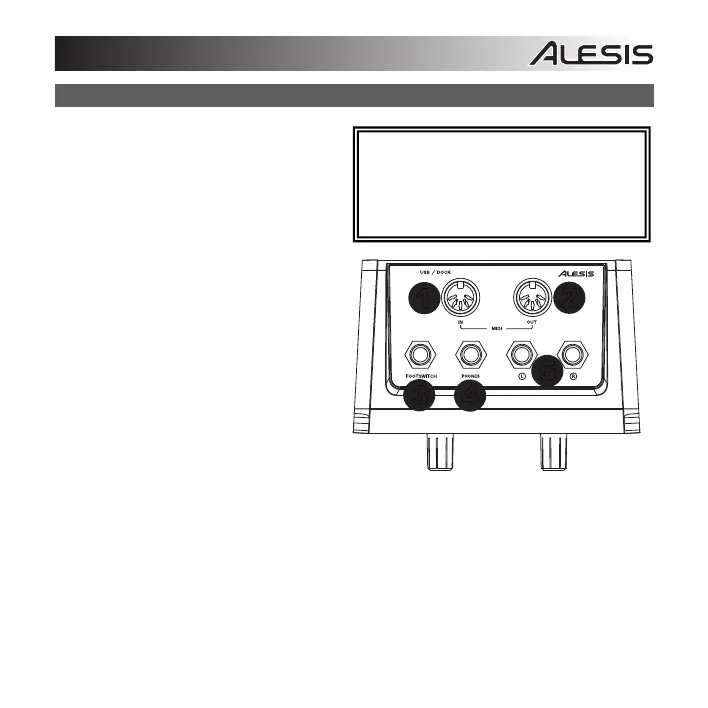

Top Panel
1. MIDI In – Use a standard five-pin MIDI cable
to connect this input to the MIDI OUT of an
external MIDI device.
2. MIDI Out – Use a standard five-pin MIDI
cable to connect this output to the MIDI IN of
an external MIDI device.
3. Footswitch – Use a standard 1/4" TS, or
1/4" TRS dual-button footswitch to send
MIDI messages to the computer. See the
Footswitch Control section for more details.
4. Headphone Output – Connect your 1/4"
headphones to this output.
5. Main L/R Outputs – Use standard 1/4"
cables to connect these outputs to a mixer,
monitor speakers, or amplifier.
Note: Be sure your MIDI sequencing software
is set up to receive MIDI signals from Control
Hub. This can usually be done in your
software's "Preferences" or "Device Setup."
Please consult your software manual for more
information.
