Alesis Fusion User Guide

6. Live Loop Adjustment
The following parameters can now be edited while the voice is playing:
• Sample loop start
• sample loop end
• zone loop start
• zone loop end
• zone loop fine tune.

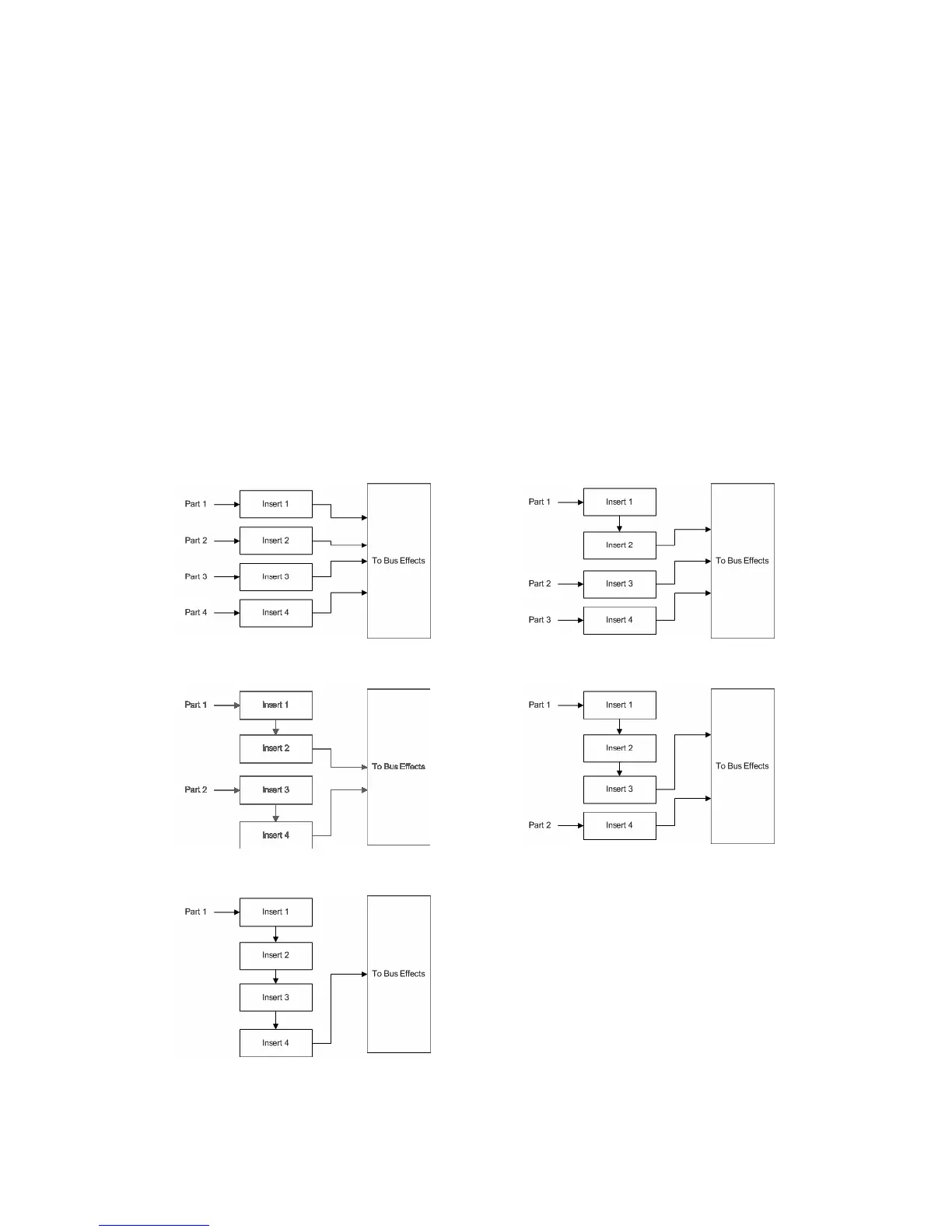

7. Chained Inserts
Up to 4 different Insert effects can now be used simultaneously in series while in
Program mode. Insert effects can also chained in Mix mode using the following
configurations:
'Standard' - Four inserts to different parts '1->2' - insert one routed through insert two. Insert three
and four available as in 'Standard'
'1->2, 3->4' - Insert one routed through two. Insert three
routed through four.
'1->2->3' - Insert one routed through two, which is routed
through three. Insert four available as in 'Standard'
'1->2->3->4' - Insert one routed through two, which is
routed through three, which is routed through four

Alesis Fusion Specifications

General

Type	Workstation
Polyphony	64 voices
Synthesis Types	Sample Playback, Virtual Analog, FM, Physical Modeling
Display	240 x 128 pixel LCD
MIDI	In, Out, Thru
RAM	64MB (expandable to 192MB)
Weight (61-key)	28 lbs
Keyboard	61 or 88 keys
Keyboard Type	Semi-weighted (61-key), Hammer action (88-key)
Effects	Reverb, Chorus, Delay, Flanger, Phaser, Distortion, EQ
Storage	40GB internal hard drive
Sampling	Yes
Inputs	2 x 1/4" inputs, 1 x XLR
Outputs	4 x 1/4" outputs, 1 x Headphone
