DISASSEMBLY PROCEDURES
1.
DISASSEMBLE THE BOTTOM PANEL.

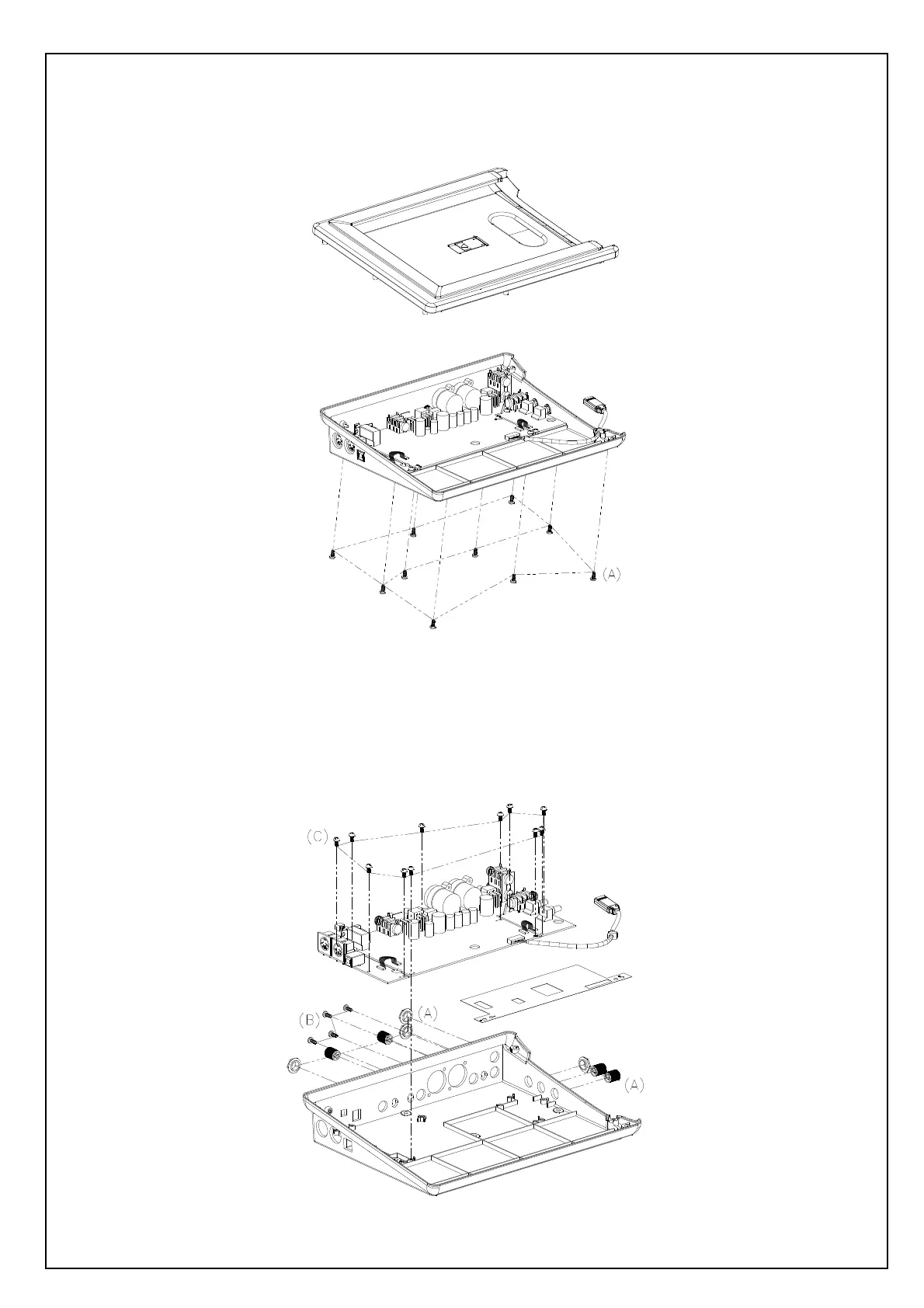

(A)REMOVE 10 SCREWS FROM THE BOTTOM PANEL.
(Fig1)
2.
DISASSEMBLE THE
MAIN PCB ASSEMBLY.
(A)REMOVE 4 NUTS AND 4 KNOBS FROM THE
MAIN PCB ASSEMBLY.
(B)REMOVE 4 SCREWS FROM THE MAIN PCB ASSEMBLY.
(C)REMOVE 11 SCREWS FROM THE MAIN PCB ASSEMBLY.
(Fig2)
