Alesis MULTIMIX 8 USB FX User Guide

MULTIMIX8USBFX
8 CHANNEL MIXER / USB RECORDING INTERFACE
MIC 1
LINE 1
INSERT
LO CUT
80Hz
GAIN
+20dB
L
AUX SEND
R
L
R
L
R
L
RETURN FT SWITCH
LINE 5/6 LINE 7/8
MONITOR
L
R
IN OUT
PHONES
2 TRACK
MAIN OUT
R
L
R
LINE 2
INSERT
GUITAR LO CUT
80Hz
+20dB
GAIN
MIC 2
LO CUT
80Hz
+20dB
GAIN
LINE 3
MIC 3
LO CUT
80Hz
+20dB
GAIN
LINE 4
MIC 4
-15 +15
HI
12kHz
EQ
120Hz 4kHz
-15 +15
-15 +15
LO
80Hz
2.5k
2k
1k
650
300
180
MID
-15 +15
HI
12kHz
EQ
120Hz 4kHz
-15 +15
-15 +15
LO
80Hz
2.5k
2k
1k
650
300
180
MID
-15 +15
HI
12kHz
MID
1kHz
EQ
-15 +15
-15 +15
LO
80Hz
-15 +15
HI
12kHz
MID
1kHz
EQ
-15 +15
-15 +15
LO
80Hz
-15 +15
HI
12kHz
EQ
-15 +15
LO
80Hz
-15 +15
HI
12kHz
EQ
-15 +15
LO
80Hz
+10dB
FX
POST
SEND
+10dB
AUX
PRE
+10dB
FX
POST
SEND
+10dB
AUX
PRE
+10dB
FX
POST
SEND
+10dB
AUX
PRE
+10dB
FX
POST
SEND
+10dB
AUX
PRE
+10dB
FX
POST
SEND
+10dB
AUX
PRE
+10dB
FX
POST
SEND
+10dB
AUX
PRE
+10dB
FX
POST
SEND
+10dB
AUX
PRE
+10dB
PHONES
EFFECTS
CHORUS
DELAY
ROTARY
BYPASS
CHORUS/ROOM
FLANGE
ROOM
PLATE
MAIN TO
MONITOR
2 TRKS/USB
TO MONITOR
2 TRKS/USB
TO MAIN
PAN
1
RL
PEAK
PAN
2
RL
PEAK
PAN
3
RL
PEAK
PAN
4
RL
PEAK
BAL
5/6
RL
BAL
MONITOR MAIN
7/8
RL
L
POWER
CLIP
+6
0
-12
-24
+48V
R
+10dB +10dB +10dB +10dB +10dB +10dB +10dB +10dB
1
1
1
1
1
3
3
2
2
2
2
2
POWER
PHANTOM
POWER
POWER INPUT
USB
18V 0.8A
5. Power on the mixer using the
switch on the rear.

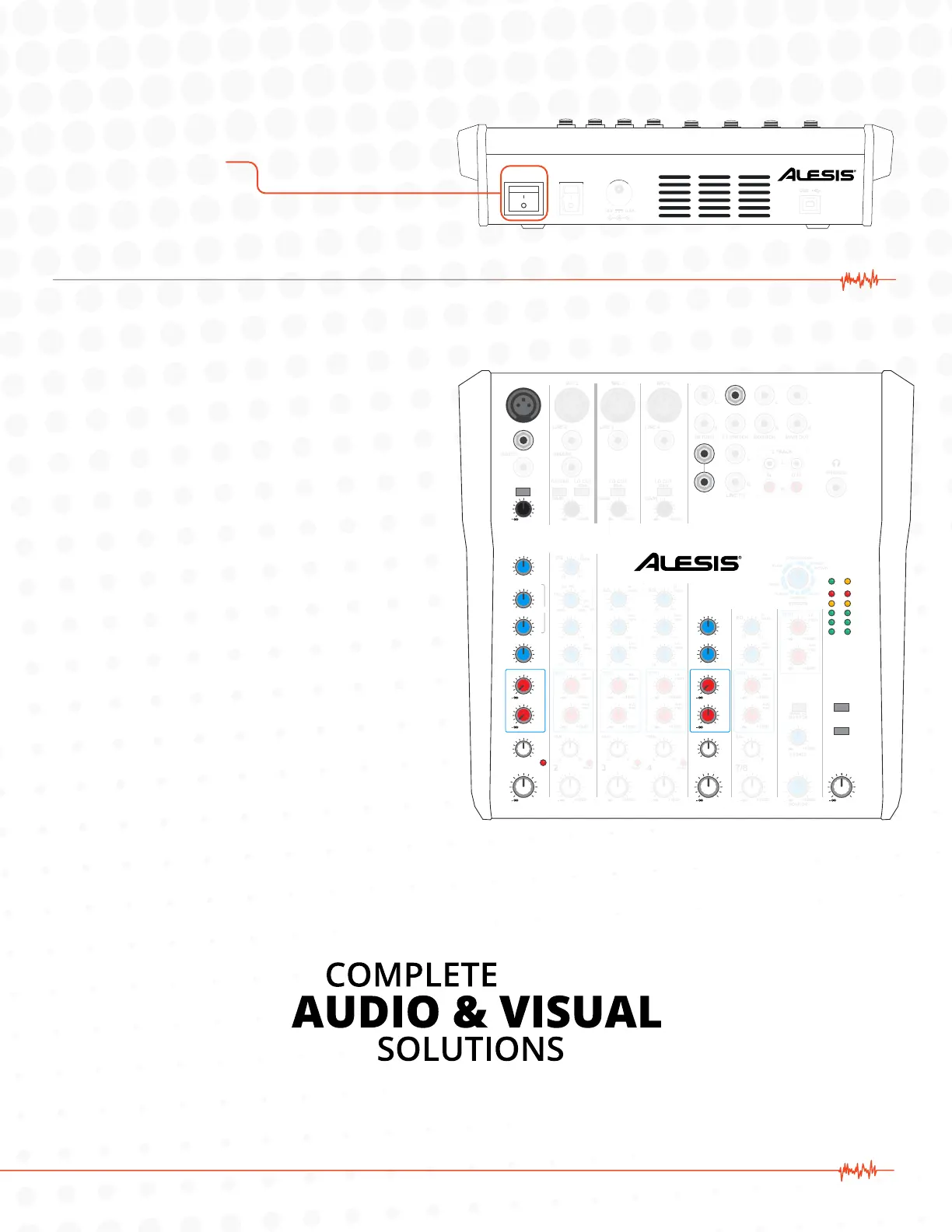

6. Information on knob settings:
A. In this diagram, the knobs shown are the only
ones that aect the sound. The rest can be
ignored. The knobs directly below the MIC 1
input jack only control the microphone signal.
The knob positions shown here are an ideal
starting place.
Generally, the black LEVEL knobs across the bottom control
the level that go to your video. From left to right, the LEVEL
1 knob will control the MIC level. Level 5/6 controls the
MUSIC level. The MAIN MIX knob controls the overall level
of the MIC and MUSIC blended together.
With the MAIN MIX and the LEVEL 1 knobs in the straight
up (noon) position, speak into your microphone and use
the black GAIN knob on channel 1 to set the general level
for your microphone.
Pay attention to the red CLIP lights. If they light up when
you speak into your microphone, the GAIN is set too high.
The red AUX knobs control the level of sound going to the
speakers in the room. This only aects what the instructor
hears and does not aect the sound going into the video
stream for the audience to hear.
The AUX PRE knobs adjust how much of each sound source
go to the speakers.
While playing music from your music player, slowly bringup
the AUX PRE knob on channel 5/6 until you get the desired
sound level in the room.
If microphone signal is needed in the speakers, turn up
the AUX PRE knob on Channel 1 slowly while talking into
the microphone until the desired level is achieved through
the speakers. In most cases, we recommend leaving this
turned down as low as possible to avoid feedback or echo.

Alesis MULTIMIX 8 USB FX Specifications

General

Sample rate	48 kHz
Channels quantity	8 channels
Digital sound processing	16 bit
USB 2.0 ports quantity	1
DJ mixer	-
Video capability	No

Weight and Dimensions

Depth	273 mm
Width	260.35 mm
Height	83 mm
Weight	2222.6 g
