Alesis MultiMix6FX Service Manual

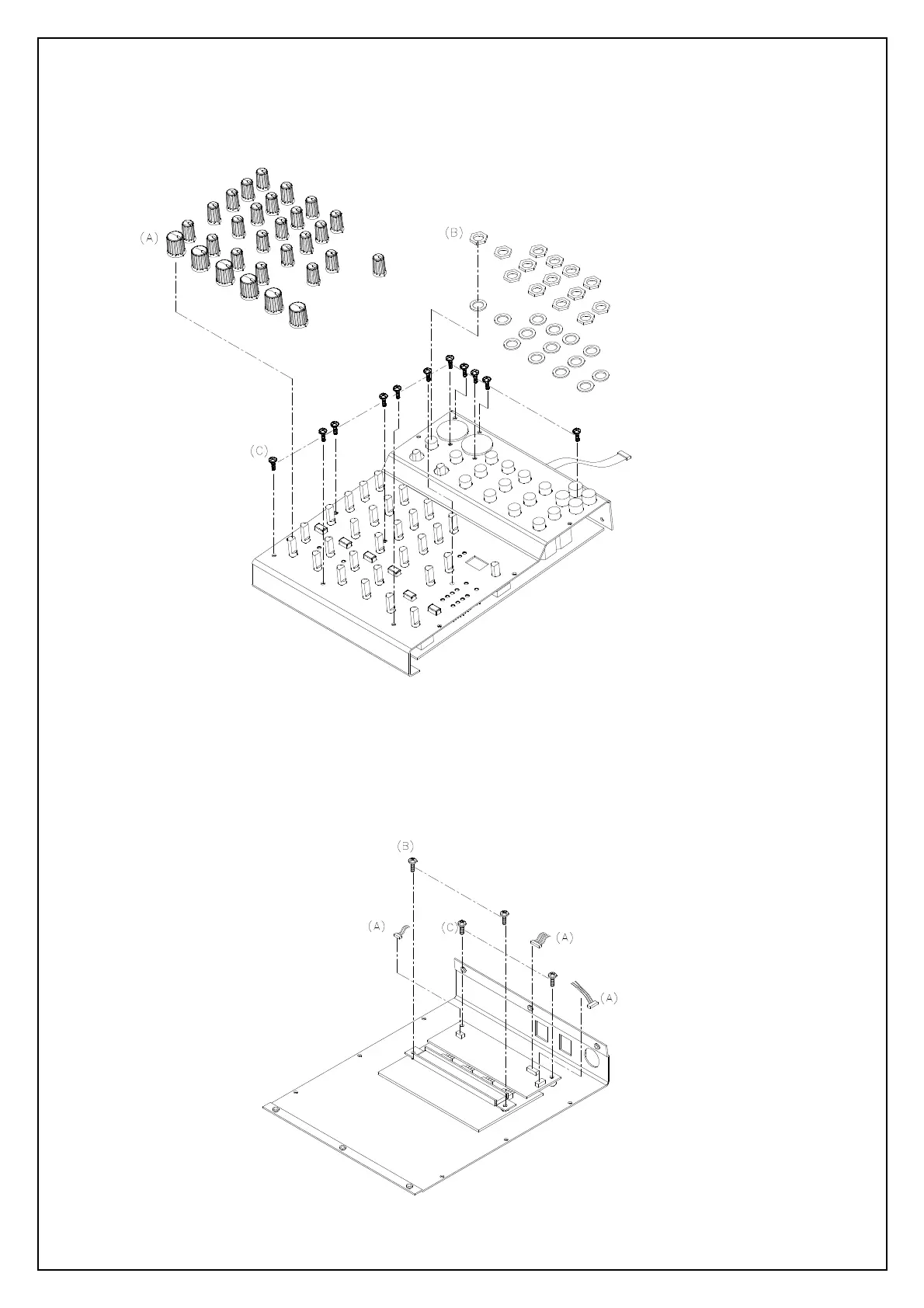

2. REMOVAL OF MAIN P.C.B (Fig2)
(A) REMOVE THE 29 PCS KNOB FROM WHICH THE TOP PANEL
(B) REMOVE THE 14 PCS NUT AND 14 PCS WASHER FROM WHICH THE TOP PANEL
(C) REMOVE THE 13 PCS SCREW FROM WHICH THE TOP PANEL
Fig.2
3.REMOVAL OF POWER P.C.B (Fig.3)
(A) REMOVE THE 2 PCS SCREWS FROM THE POWER P.C.B
(B) REMOVE THE 2 PCS SCREWS FROM THE BRACKET
(C) REMOVE THE 3PC OF CABLE CONNECTOR FROM THE POWER P.C.B
Fig.3
