DISASSEMBLY PROCEDURES

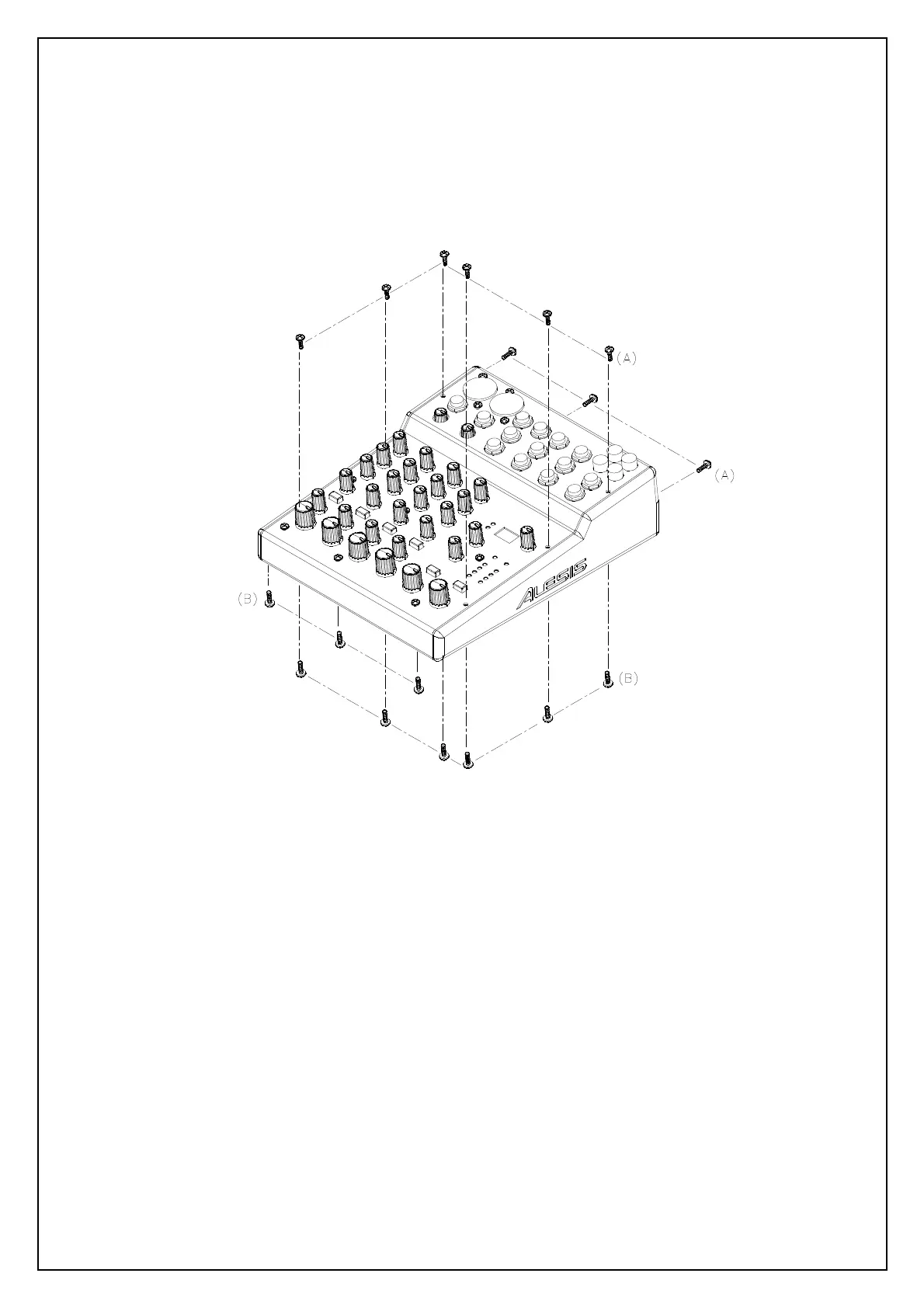

1. REMOVAL OF TOP PANEL/BOTTOM PANEL (Fig1)
(A) TAKE OUT THE 9PCS SCREW FROM WHICH
THE TOP PANEL
(B) TAKE OUT THE 9PCS SCREW FROM WHICH
THE BOTTOM PANEL
Fig.1
