Alesis MultiMix6FX User Manual

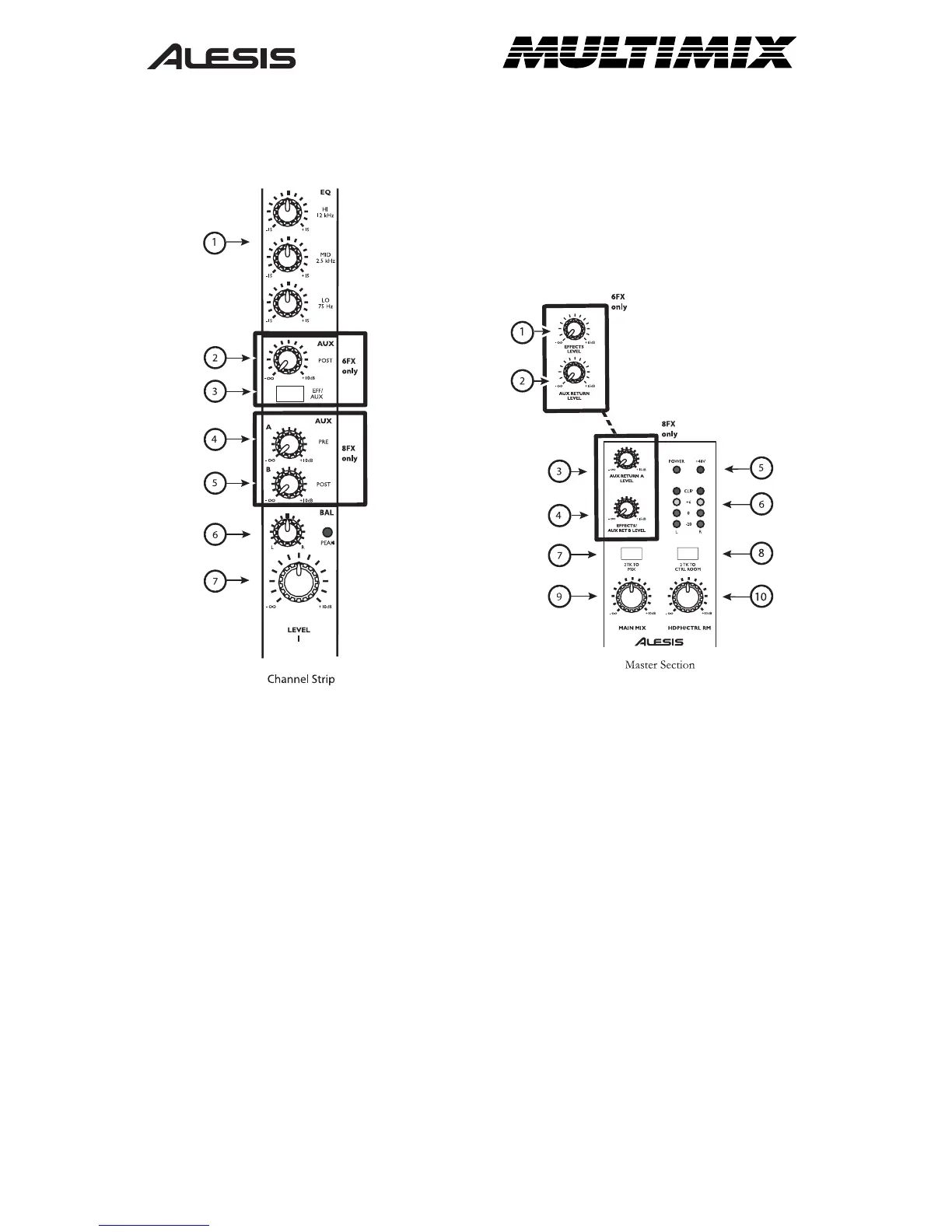

CHANNEL FEATURES
1. EQ: Boosts or cuts the respective frequencies
for each channel.
2. AUX (6FX only): Controls level routed to
internal effects processor or routes channel
signal to an external device like an effects
processor.
3. EFF/AUX (6FX only): Selects whether the
Aux send signal is routed to the internal effects
or the external Aux send.
4. AUX A (8FX only): Routes channel signal to
an external device like an effects processor.
5. AUX B (8FX only): Controls level routed to
internal effects processor or – if a device is
patched into the Aux B returns – routes
channel signal to an external device like an
effects processor.
6. PAN/BALANCE: Assigns the channel signal to
any spot in the mono or stereo spectrum.
7. CHANNEL FADER: Controls the signal level
of the MIC or LINE inputs.
MASTER FEATURES
Note: It is recommended that the MULTIMIX
be turned off before connecting and
disconnecting any sources to the inputs of
the unit.
1. EFFECTS LEVEL (6FX only): Controls the
signal level of the internal effects.
2. AUX RETURN (6FX only): Controls the
signal level that returns from AUX.
3. AUX RETURN A (8FX only): Controls the
signal level that returns from AUX A.
4. EFFECTS/AUX RET B (8FX only): Controls
the signal level of the internal effects or the
level returning from AUX B if in use.
5. +48V LED: Indicates that the PHANTOM
POWER is enabled for the MIC inputs.
6. LED METERS: Monitors the audio signal level.
7. 2TK TO MIX: Routes the 2TK input to the
MAIN faders.
8. 2TK TO CTRL: Routes the 2TK input signal to
the HDPH /CTRL RM output.
9. MAIN MIX: Controls the level of the MAIN
OUTPUTS.
10. HDPH/CTRL RM: Controls the level that is
sent to the PHONES or CTRL RM outputs.
