DISASSEMBLY PROCEDURES

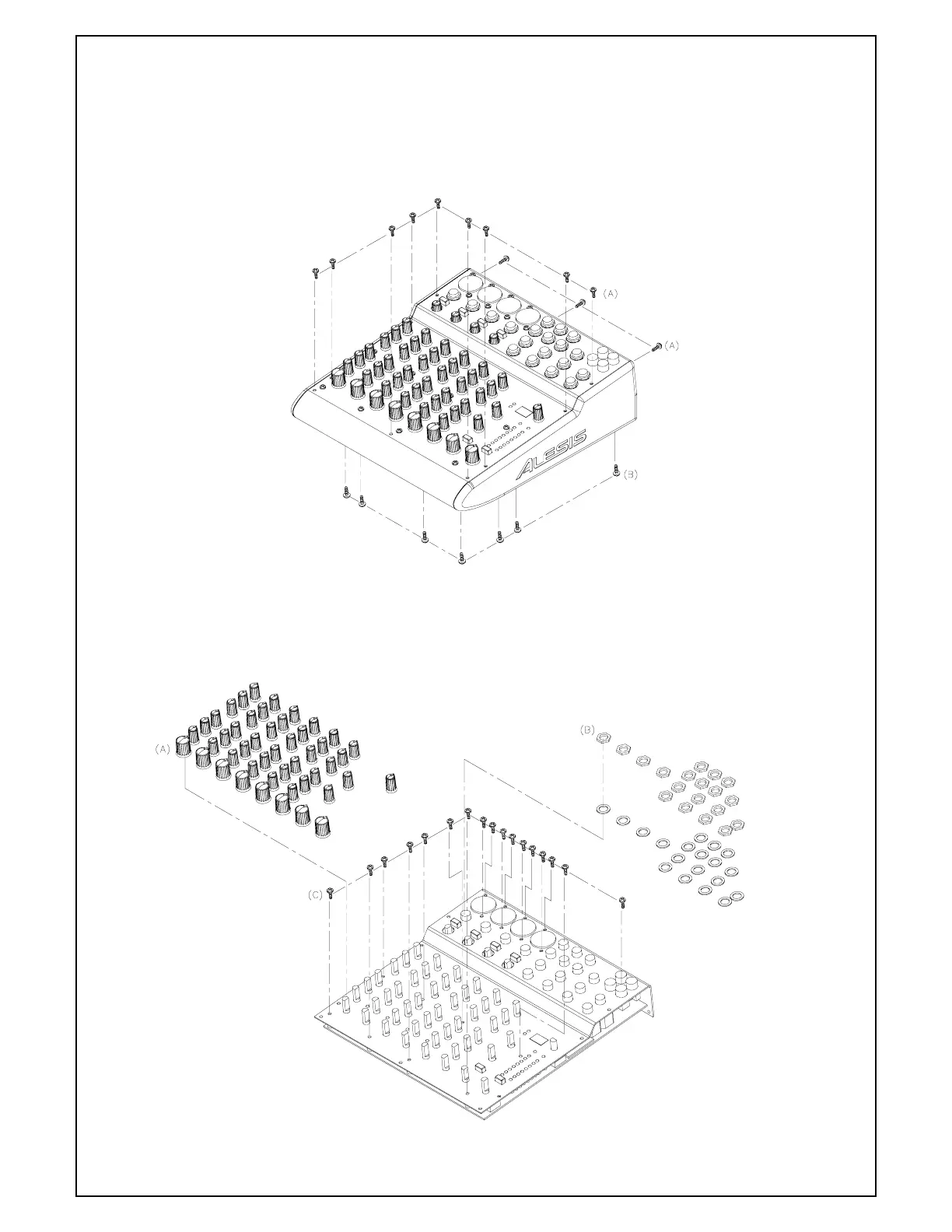

1. REMOVAL OF TOP PANEL/BOTTOM PANEL (Fig1)
(A) TAKE OUT THE 12 PCS SCREW FROM WHICH
THE TOP PANEL
(B) TAKE OUT THE 7 PCS SCREW FROM WHICH
THE BOTTOM PANEL
Fig.1
2. REMOVAL OF MAIN P.C.B (Fig2)
(A) REMOVE THE 47 PCS KNOB FROM WHICH THE TOP PANEL
(B) REMOVE THE 19 PCS NUT AND 19 PCS WASHER FROM WHICH THE TOP PANEL
(C) REMOVE THE 17 PCS SCREW FROM WHICH THE TOP PANEL
Fig.2
