3 Installation
The instruction manual is part of the delivery. Study the instructions carefully.
The items refer to parts list and service kits section.
The valve is supplied as separate parts as standard.
The valve is assembled before delivery, if it is supplied with fittings.
3.1 Unpacking/delivery
Step 1
CAUTION
Alfa Laval cannot be held responsible for incorrect unpacking.
Check the delivery for:
1. Complete valve.
2. Delivery note.

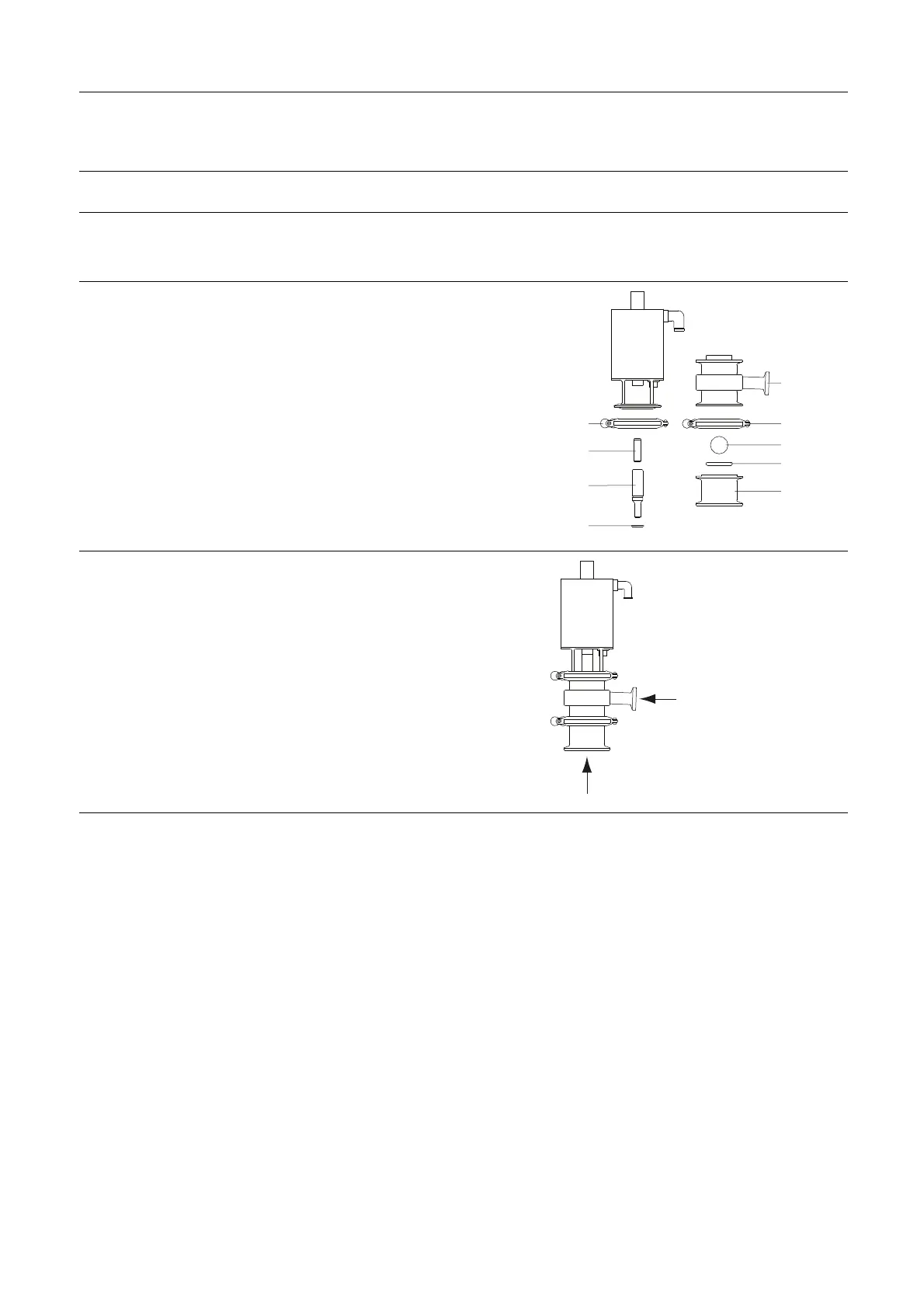

Step 2
Stop valve:
1. Complete actuator.
2. Ball (20).
3. 2 x clamp (21).
4. Stem (15).
5. Valve body (18).
6. O-ring (16).
7. Base (17).
8. Studt (22).
9. O-ring (23).
TD 474-002
21
22
15
16
18
21
20
23
17
Step 3
Inspect the valve/valve parts for visible transport damages.
Avoid damaging the valve/valve parts.
TD 474-003
Inspection!
7
