Alfa Network 233 - Inserting the Bobbin Case into the Shuttle

9

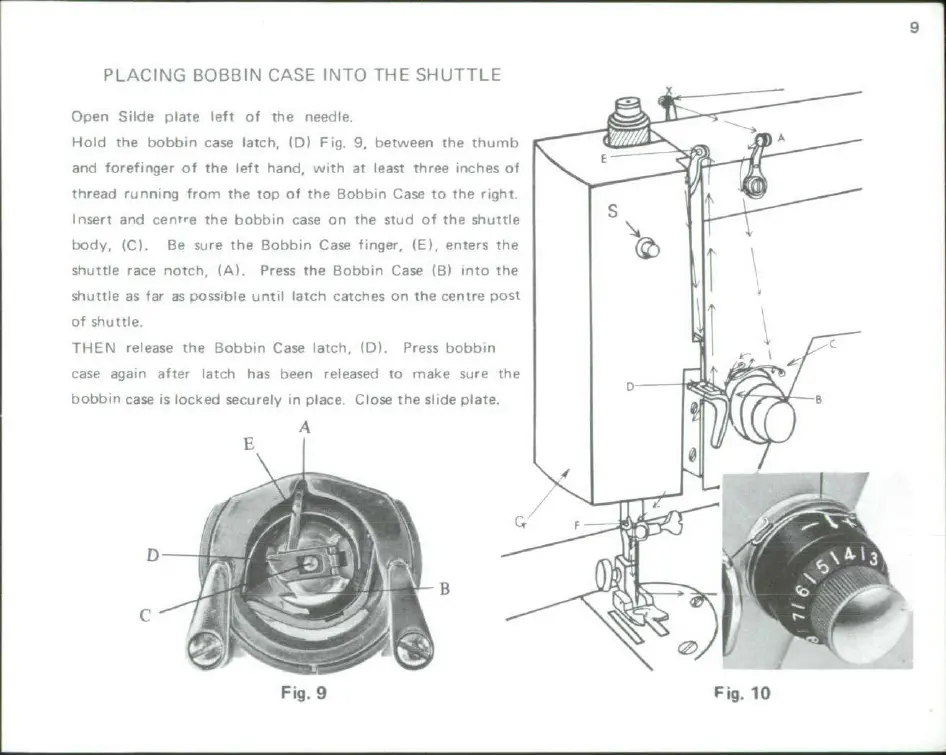

PLACING
BOBBIN
CASE
INTO
THE
SHUTTLE
Open Silde
plate left
of the
needle.
fold
the bobbin
case latch,
iD) Fig
9, between
the thiumbi
and
forefinger
of the left
hand, with
at least
three inches
of
Thread running
from
the top of the
Bobbin
Case to the
right.
Insert
and centre
the bobbin case
on the stud
Of the shuttle
body, (C).
Be sure
the Bobbin
Case finger,
(E), enters
the
shuttle
race
notch (A).
Press the
Bobbin Case
(B) into
the
shuttle as far
as possible
until latch
catches on
the centre
post
of shuttle
THEN release
the Bobbin
Case latch
(D). Press
bobbin
case
again after latch
has been released
to mnake sure the
bobbin
case is locked
securely
in place.
Close the slide
plate,
A
Fig. 9
Fig. 10
