13

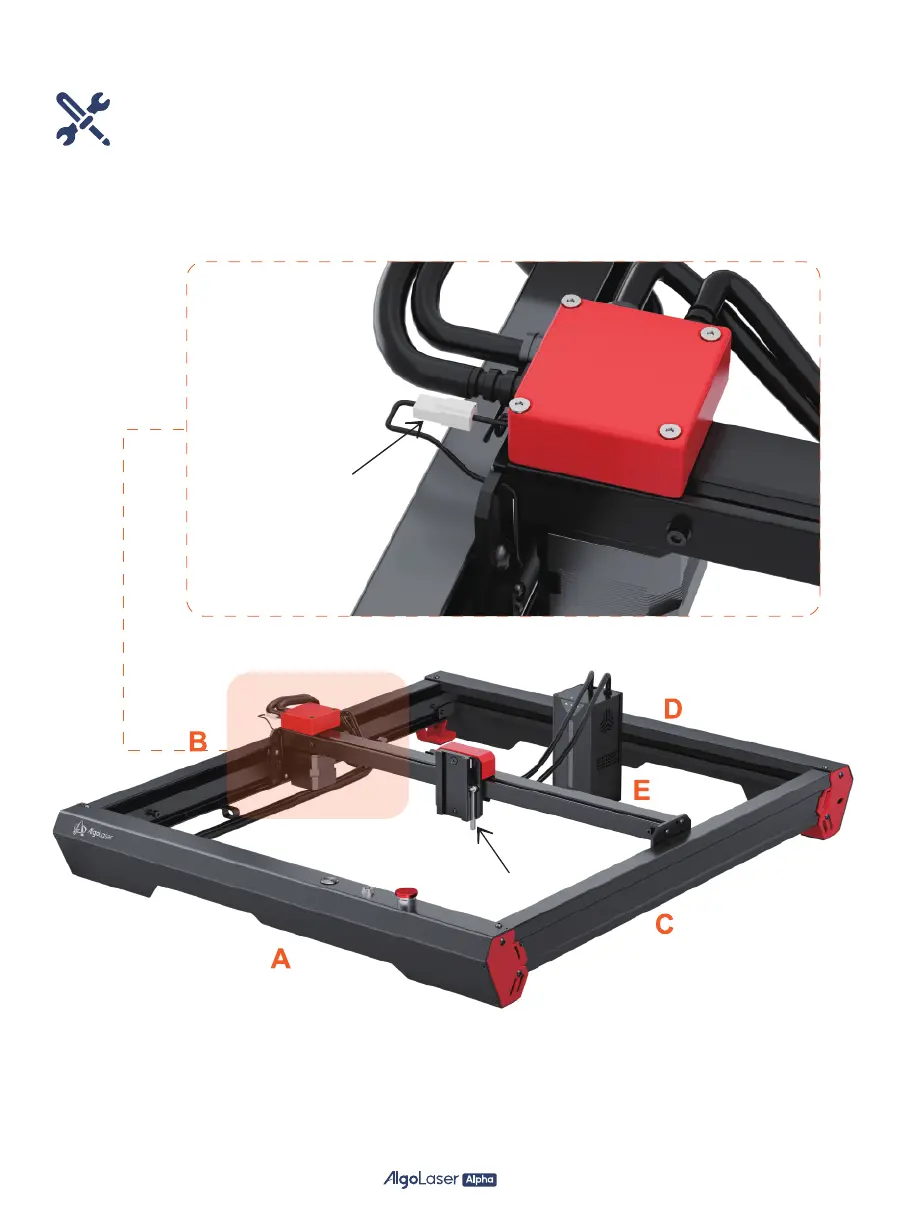

Step 8: Insert the Y-Axis Limit Switch Terminal here into the Interface out of the cable box.
Limit Switch Terminals
and
Interfaces
Lever
Machine Assembly
Link the Limit Switch
08/ 21
