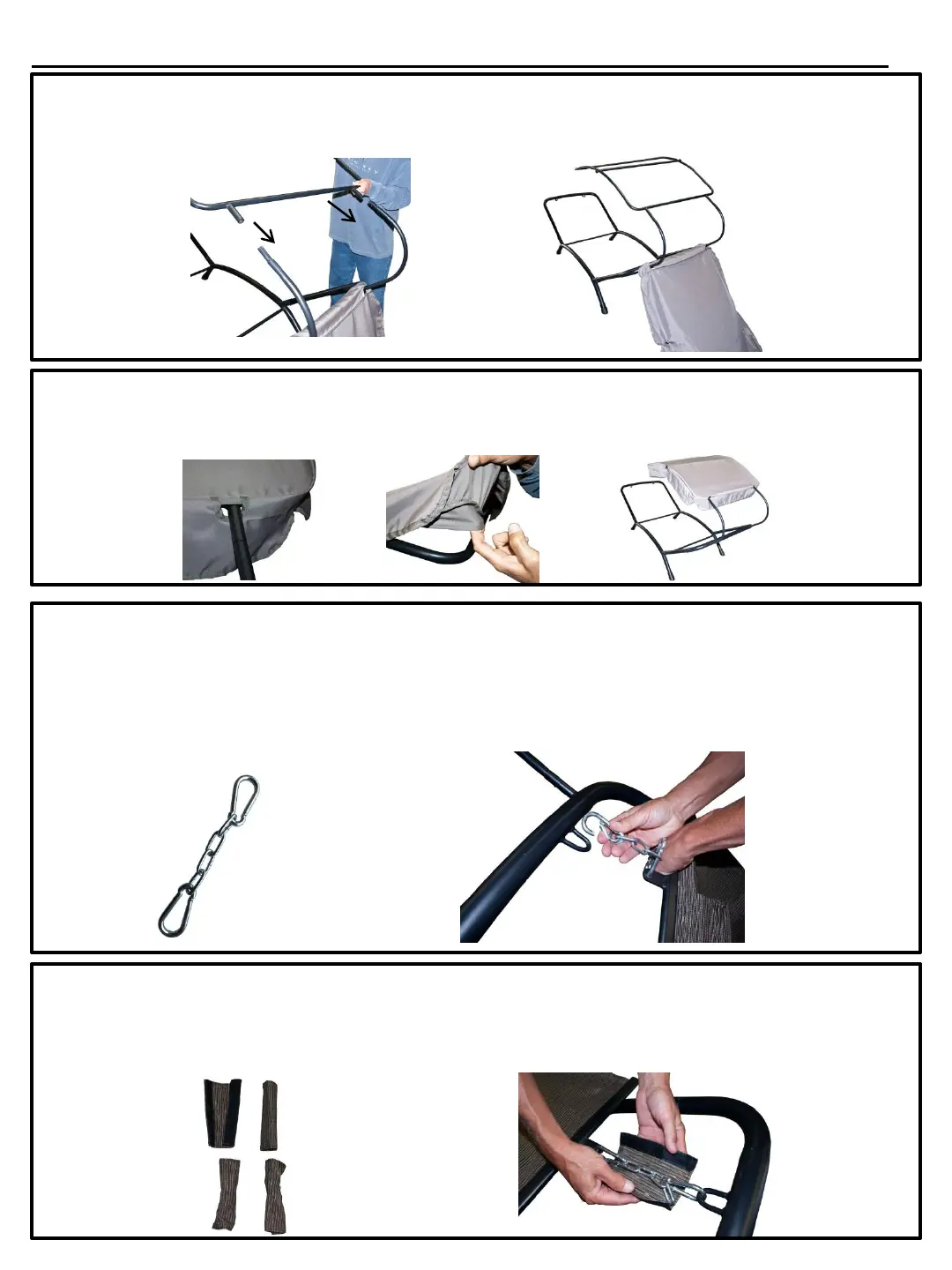

ASSEMBLY INSTRUCTIONS
STEP 11
Locate the 4 hanging chains with lock hooks (Part N). Also locate the hammock bed with attached
pillow (Part O). Hook one end of each chain to the steel attachment brackets on each end of the
hammock bed. Hook the other end of the chain to the welded attachment loops on the head and
foot end stand supports. Pillow end of the hammock should be hooked up under the canopy end
of the hammock. Adjust hook and chain to give the hammock bed a level and taught resting area.
Part N
STEP 12
Once the hanging chains are set where you want them, locate the 4 fabric chain protectors (Part
P). Wrap each chain protector over the hanging chain and secure with the hook and loop strip.
After this is complete, inspect all lock-pins and hooks to assure everything is in place. Enjoy!
Part P
J
I
I
STEP 9
Place completed canopy frame onto the canopy uprights (Part I) by placing the frame protrusions
on the canopy base (Part J) making sure the lock-pins are fully engaged
STEP 10
Pull the fabric canopy up the canopy uprights and over the canopy frame. Attach the fabric canopy
to the canopy frame by tucking the sewn in pockets on the canopy over the canopy frame corners
