ASSEMBLY INSTRUCTIONS

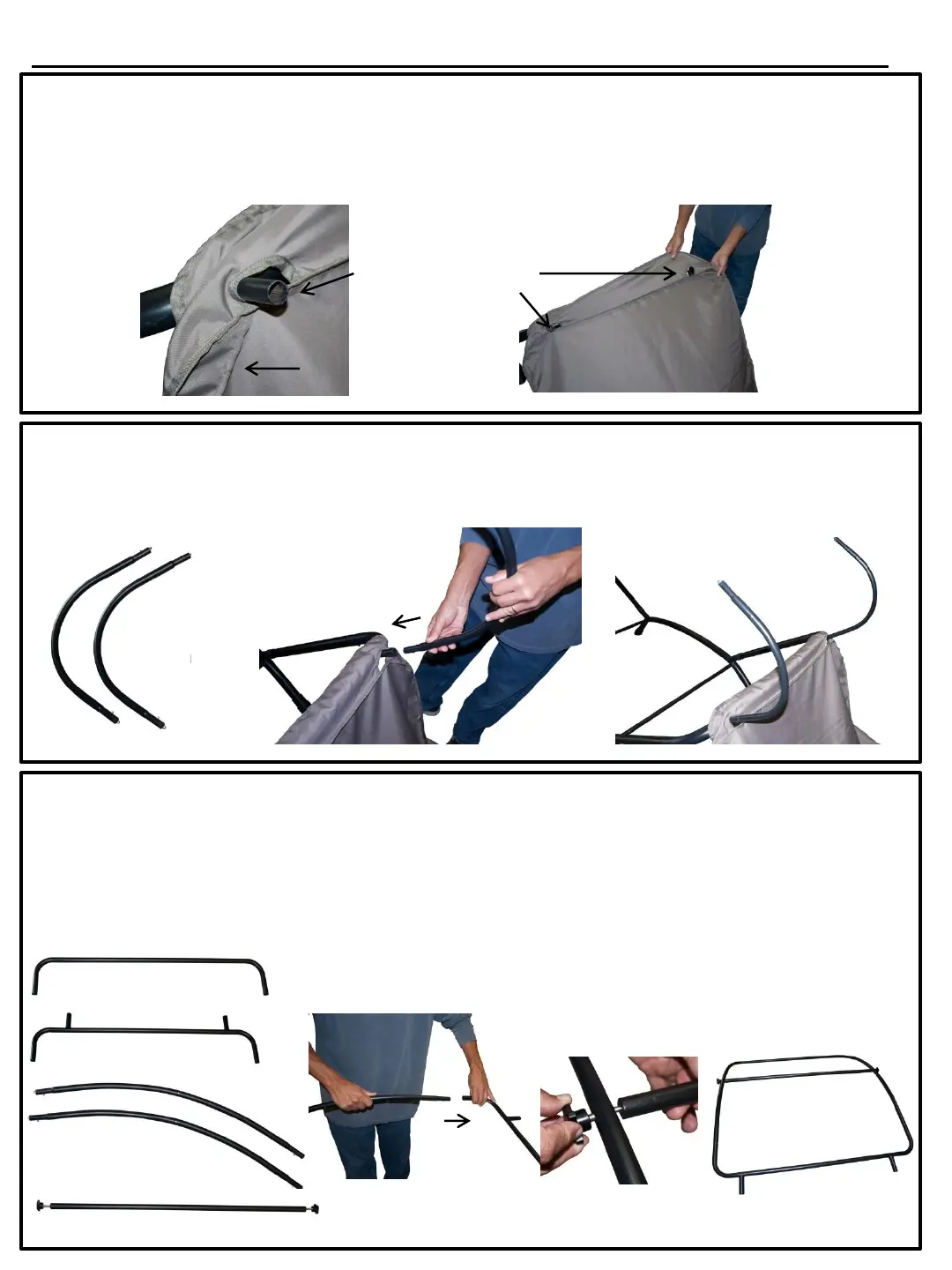

STEP 6
Locate the fabric canopy (Part H). Unfold the canopy and locate the holes on the back end of
the canopy. Place the canopy onto the two upright protrusions of the head end stand support
by having the protrusion supports go through the two holes. Make sure the sewn in corner
pockets on the canopy face away from the frame. Allow the canopy to hang and go to next
step.
STEP 7
Locate the two canopy upright supports (Part I). Slip parts I onto the canopy protrusions on
the head end frame support (Part F) making sure the lock-pins fully engage into the lock-pin
holes.
STEP 8
Locate the canopy frame pieces Parts J, K, L, & M. Slip the canopy frame side supports (Part K) onto
both canopy frame ends (Part J & L) making sure the lock-pins fully engage into the lock pin holes.
Then place the canopy middle support (Part M) and hold it between the holes on the frame side
supports. Place the screw-knob through the side support into the end of the middle support.
Repeat this procedure on the opposite end of the middle canopy support.
Part H
Upright protrusion
Sewn in corner pocket
Part I
Canopy Upright
Supports in place
Part J
Part K
Part L
Part M
K
M
J
M
L
K
K
To Next Page
