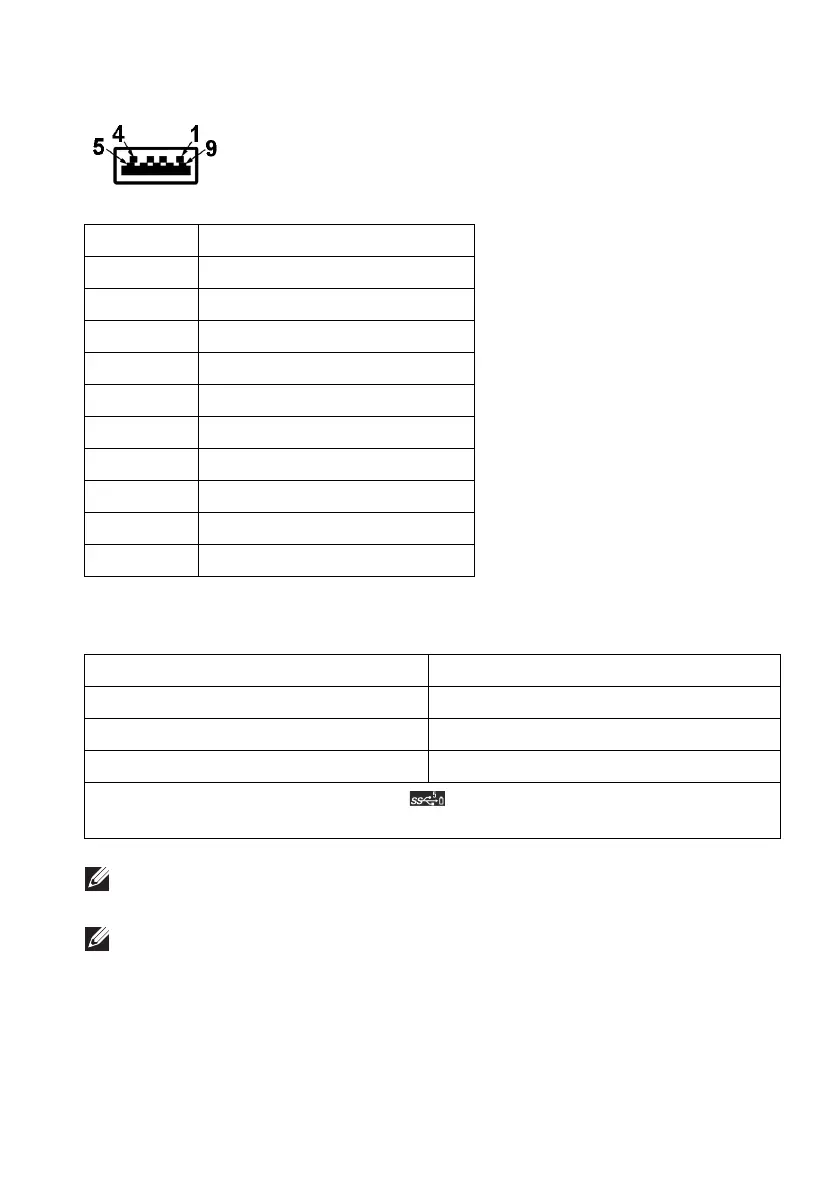

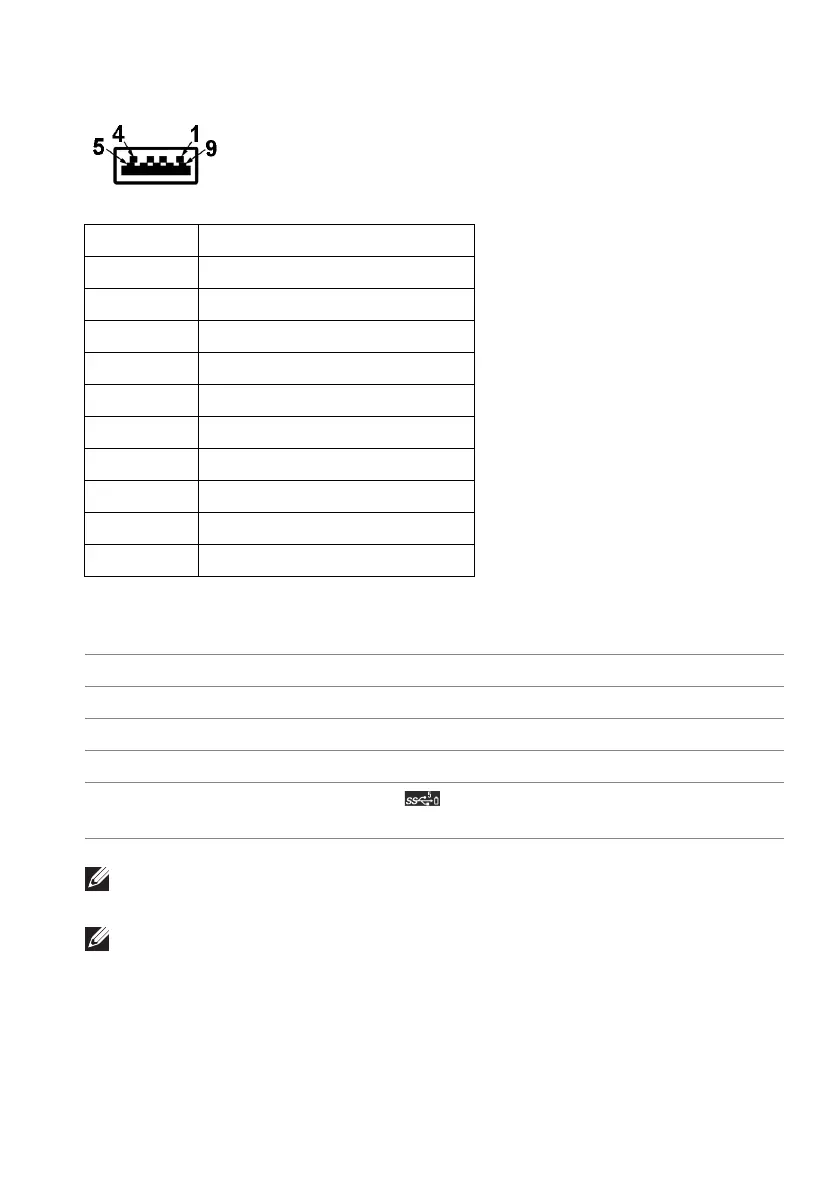

USB 3.2 Gen 1 (5 Gbps) downstream connector
USB ports
NOTE: SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) functionality requires a
SuperSpeed USB 5 Gbps (USB 3.2 Gen 1)-capable computer.
NOTE: The USB ports on the monitor work only when the monitor is
turned on or in Standby mode. If you turn off the monitor and then turn it
on, the attached devices may take a few seconds to resume normal
functionality.
Pin number Signal name
1V
BUS
2D-
3D+
4GND
5 StdA_SSRX-
6 StdA_SSRX+
7GND_DRAIN
8 StdA_SSTX-
9 StdA_SSTX+
Shell Shield
Port Location
1 x upstream Rear
2 x downstream Rear
2 x downstream Bottom
Power charging port - the port with icon; supports up to 2 A fast-charging
capability if the device is BC1.2 compatible.
