4 Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the
wireless card supported by your computer.
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black

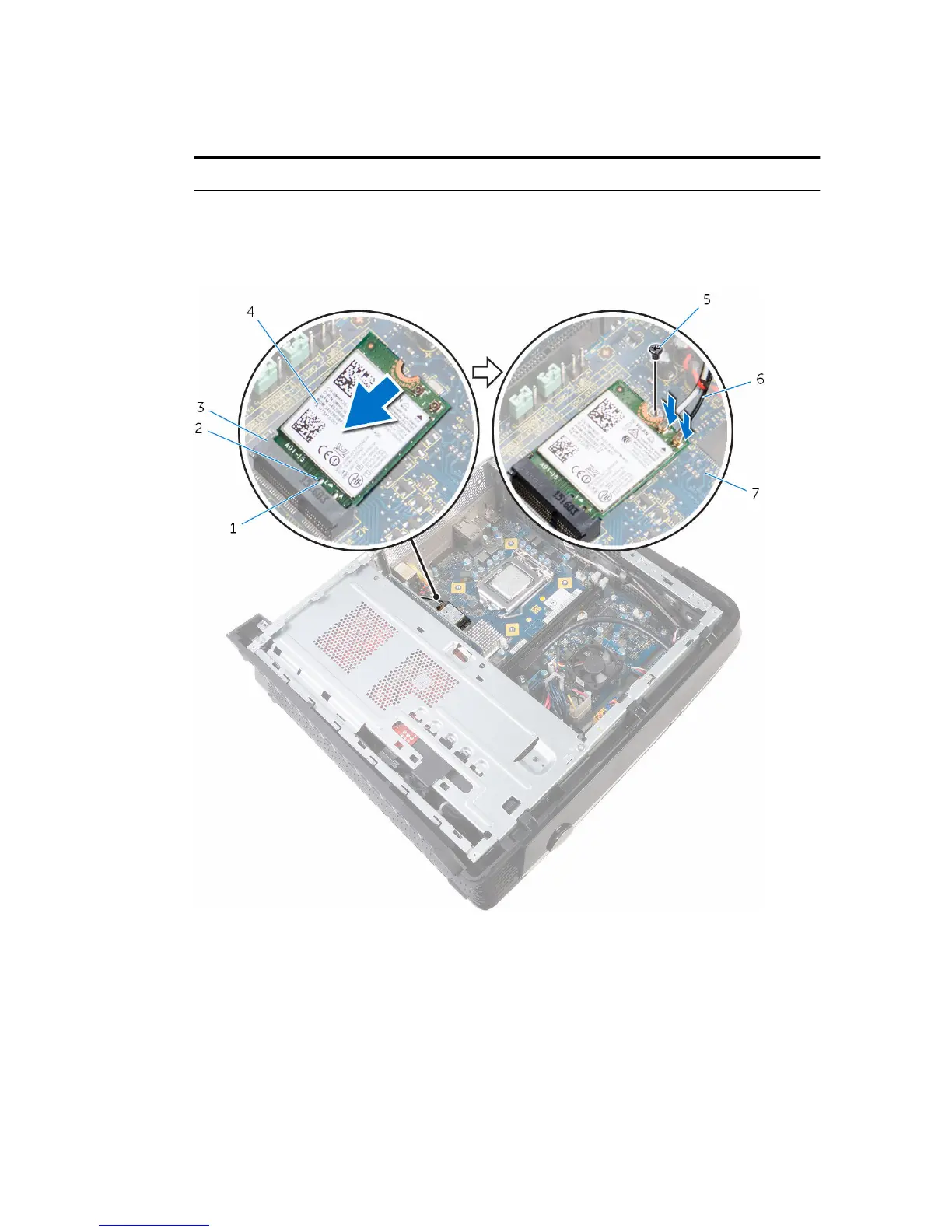

1 tab 2 notch
3 wireless-card slot 4 wireless card
5 screw 6 antenna cables (2)
7 system board
