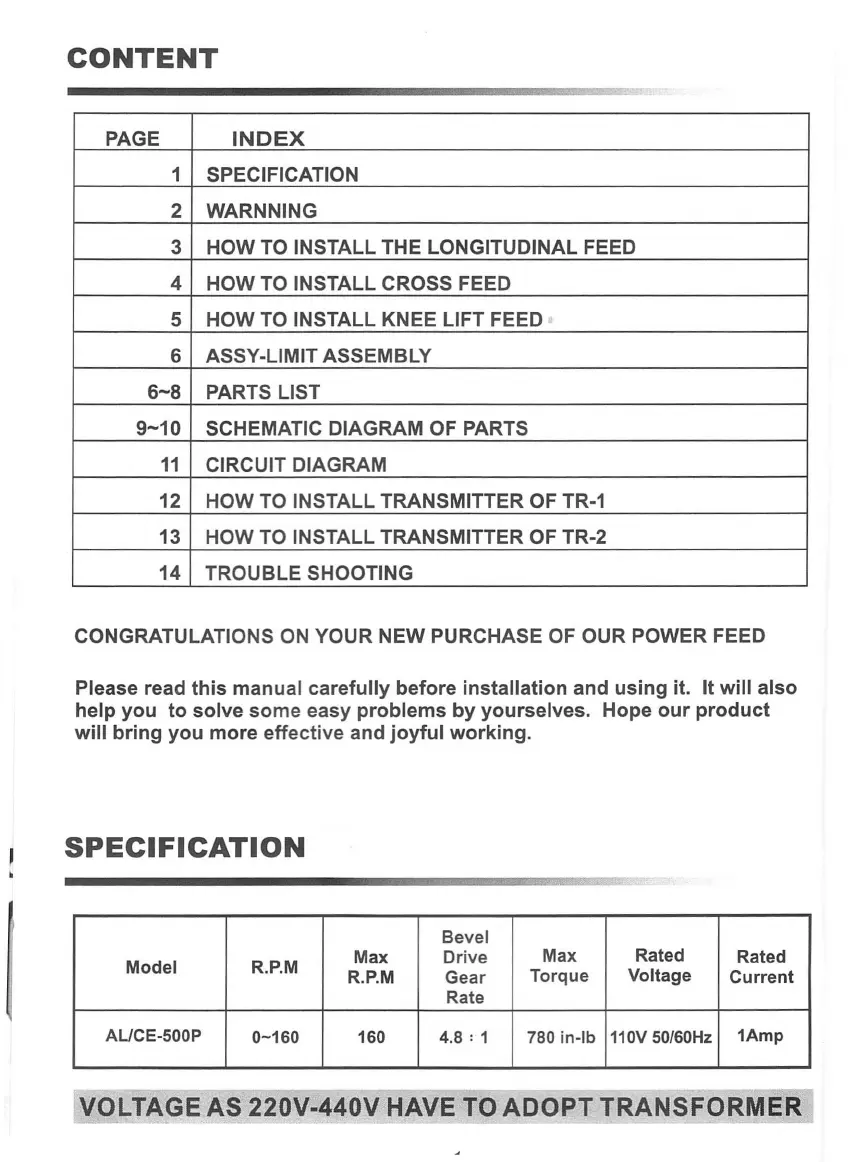

CONTENT
PAGE INDEX
1 SPECIFICATION
2 WARNNING
3
HOW TO INSTALL THE LONGITUDINAL FEED
4 HOW TO INSTALL CROSS FEED
5 HOW TO INSTALL KNEE LIFT FEED
6 ASSY-L1MIT ASSEMBLY
6-8 PARTS LIST
9-10
SCHEMATIC DIAGRAM OF PARTS
11 CIRCUIT DIAGRAM
12 HOW TO INSTALL TRANSMITTER OF TR-1
13
HOW TO INSTALL TRANSMITTER OF TR-2
14 TROUBLE SHOOTING
CONGRATULATIONS ON YOUR NEW PURCHASE OF OUR POWER FEED
Please read this manual carefully before installation and using it. It will also
help you to solve some easy problems by yourselves. Hope our product
will bring you more effective and joyful working.
SPECIFICATION
I
Bevel
Model R.P.M
Max Drive
Max
Rated
Rated
R.P.M Gear
Torque
Voltage
Current
Rate
AUCE-500P
0-160 160
4.8: 1
780 in-Ib 110V 50/60Hz
1Amp
VOLTAGE AS 220V-440V HAVE TO ADOPT TRANSFORMER
