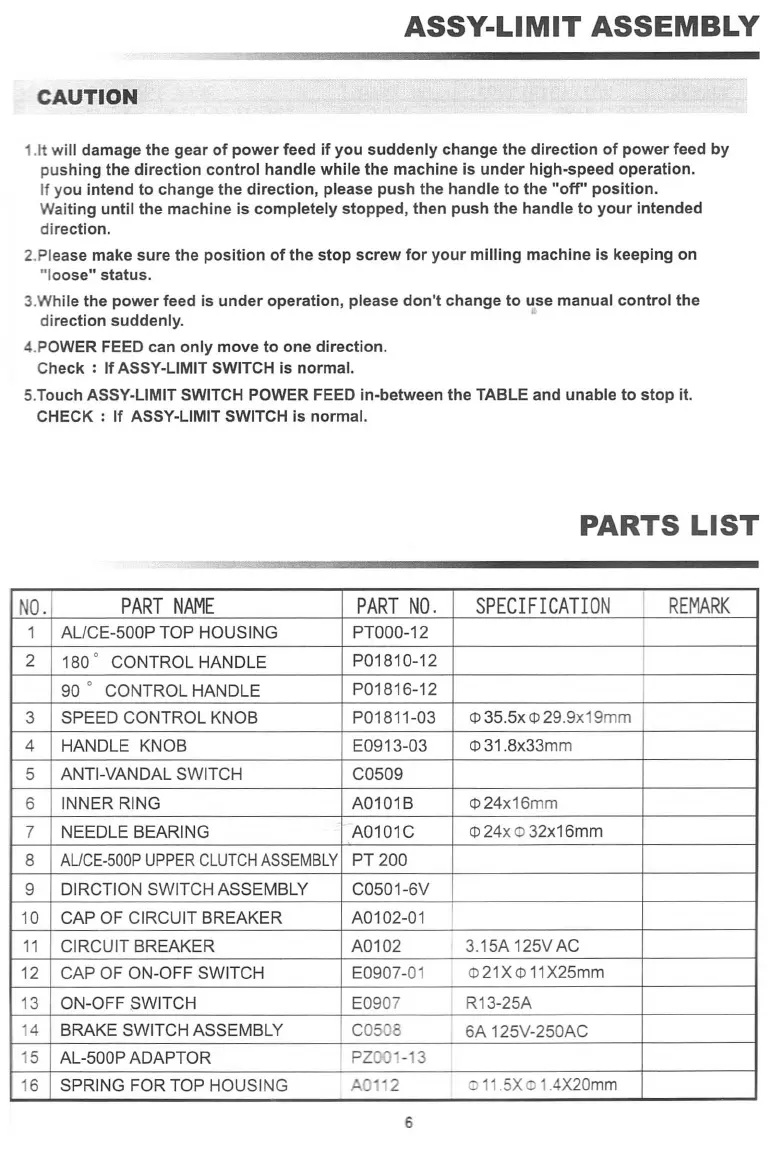

ASSY-LIMIT ASSEMBLY
CAUTION
1.1twill damage the gear of power feed if you suddenly change the direction of power feed by
pushing the direction control handle while the machine is under high-speed operation.
If you intend to change the direction, please push the handle to the "off" position.
Waiting until the machine is completely stopped, then push the handle to your intended
direction.
2.Please make sure the position of the stop screw for your milling machine is keeping on
"loose" status.
3.While the power feed is under operation, please don't change to use manual control the
direction suddenly. I
4.POWER FEED can only move to one direction.
Check: If ASSY-LiMIT SWITCH is normal.
S.Touch ASSY-LiMIT SWITCH POWER FEED in-between the TABLE and unable to stop it.
CHECK: If ASSY-LiMIT SWITCH is normal.
PARTS LIST
NO.
PART NAME
PART NO. SPECIFICATION REMARK
1 ALlCE-500P TOP HOUSING
PTOOO-12
2
180
0
CONTROL HANDLE
P01810-12
I
90
0
CONTROL HANDLE
P01816-12
I
3 SPEED CONTROL KNOB
P01811-03
<t>35.5x <t>29.9x19mm
4 HANDLE KNOB
E0913-03
<t>31.8x33mm
5
ANTI-VANDAL SWITCH
C0509
6
INNER RING A0101B
<t>24x16mm
7 NEEDLE BEARING A0101C
<t>24x <D 32x16mm
8
AUCE-500P UPPER CLUTCH ASSEMBLY
PT200
9
DIRCTION SWITCH ASSEMBLY C0501-6V
10
CAP OF CIRCUIT BREAKER A0102-01
I
11 CIRCUIT BREAKER
A0102 3.15A 125VAC
12
CAP OF ON-OFF SWITCH E0907-01
<D 21 X <D 11X25mm
13 ON-OFF SWITCH E0907
R13-25A
14
BRAKE SWITCH ASSEMBLY
C0508
6A 125V-250AC
15 AL-500P ADAPTOR
PZOO~-13
16
SPRING FOR TOP HOUSING
A01·2
11.5X
1.4X20mm
