Align AL/CE-500P - Page 9

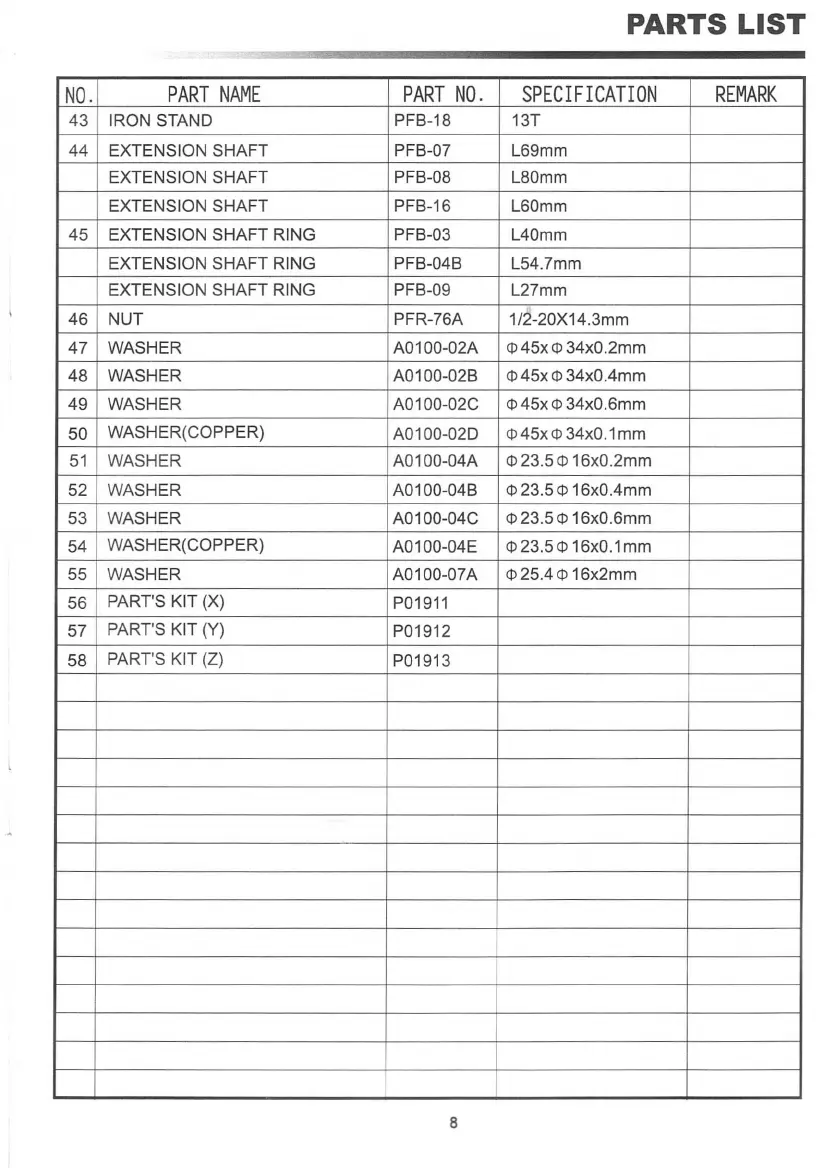

PARTS LIST
NO.
PART NAME PART NO.
SPECIFICATION REMARK
43 IRON STAND
PFB-18 13T
44 EXTENSION SHAFT
PFB-07
L69mm
EXTENSION SHAFT
PFB-08
L80mm
EXTENSION SHAFT PFB-16 L60mm
45
EXTENSION SHAFT RING PFB-03
L40mm
EXTENSION SHAFT RING PFB-04B
L54.7mm
EXTENSION SHAFT RING PFB-09
L27mm
"
46 NUT
PFR-76A
1/2-20X14.3mm
47
WASHER A0100-02A
<1>45x <1>34xO .2mm
48 WASHER
A0100-02B
<1>45x <1>34xO .4mm
49 WASHER A0100-02C
<1>45x <1>34xO.6mm
50
WASHER(COPPER)
A0100-02D
<1>45x <1>34xO.1 mm
51 WASHER
A0100-04A
<1>23.5 <1>16xO.2mm
52 WASHER
A0100-04B
<1>23.5 <1>16xO.4mm
53
WASHER A0100-04C
<1>23.5<1>16xO.6mm
54
WASHER(COPPER)
A0100-04E
<1>23.5<1>16xO.1mm
55 WASHER A0100-07A
<1>25.4 <1>16x2mm
56
PART'S KIT (X)
P01911
57
PART'S KIT (Y)
P01912
58
PART'S KIT (Z)
P01913
