ALINKER R-volution - Adjust the Brake if Needed

19

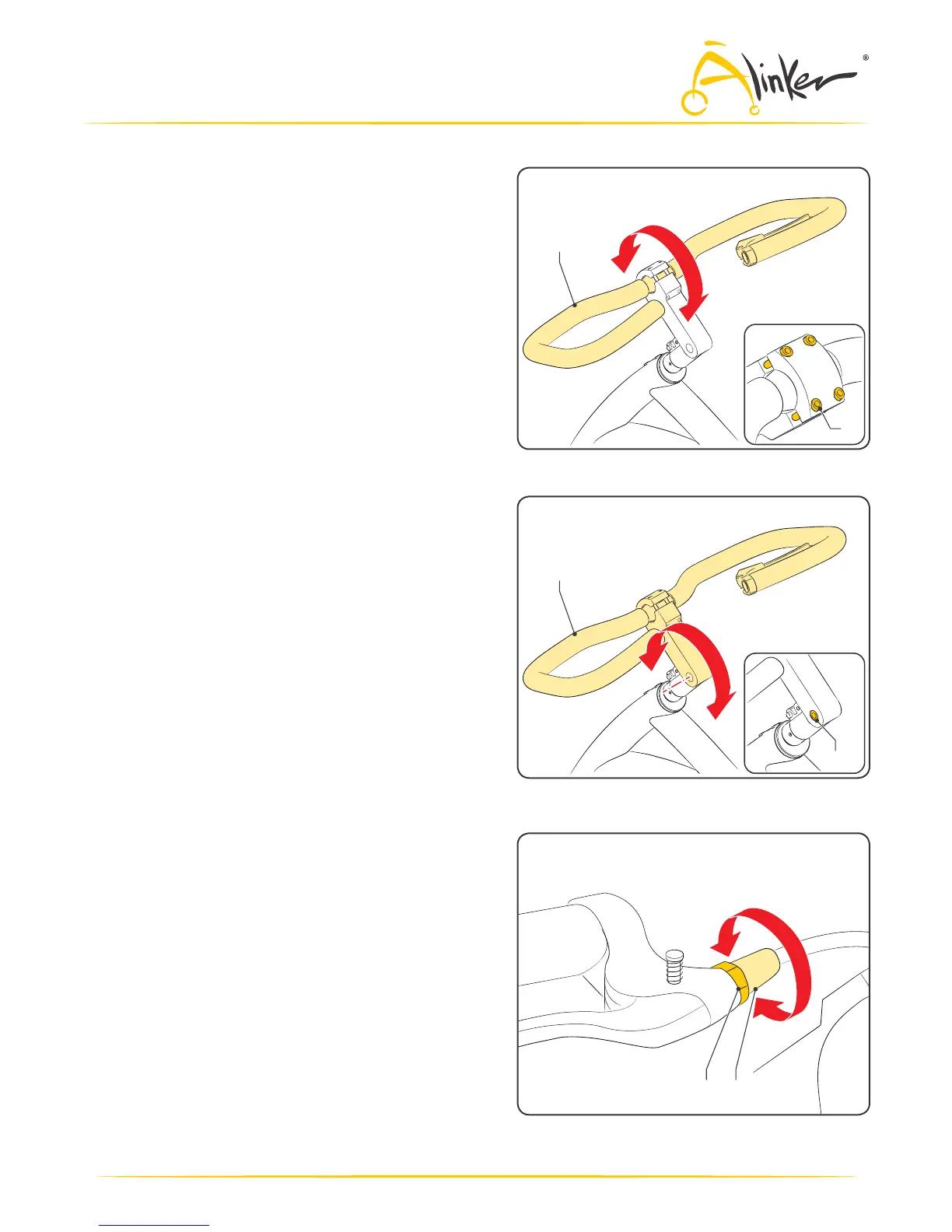

Adjust the handlebar
1. Loosen the 4 bolts (A) with a 4mm allen key.
2. Adjust the handlebar (B) to the correct position.
3. Tighten the 4 bolts (A) with a 4mm allen key.
A
B
Adjust the handlebar stem riser
1. Loosen the bolt (A) with a 5mm allen key.
2. Adjust the handlebar (B) to the correct position.
3. Tighten the bolt (A) with a 5mm allen key.
A
B
3.3 Adjust the brake if needed
Tighten the brake
1. Loosen the ring (A).
2. Unscrew the catch (B).
3. Tighten the ring (A) again.
Make the brake less tight
1. Loosen the ring (A).
2. Screw in the catch (B).
3. Tighten the ring (A) again.
A B
+
_
Adjust the Alinker
