4) The earbud is now in the correct position.
3) Following the arrow marks on Jawbone’s barrel,
rotate the earbud counter-clockwise a quarter turn (90
degrees) until it is pointing left.

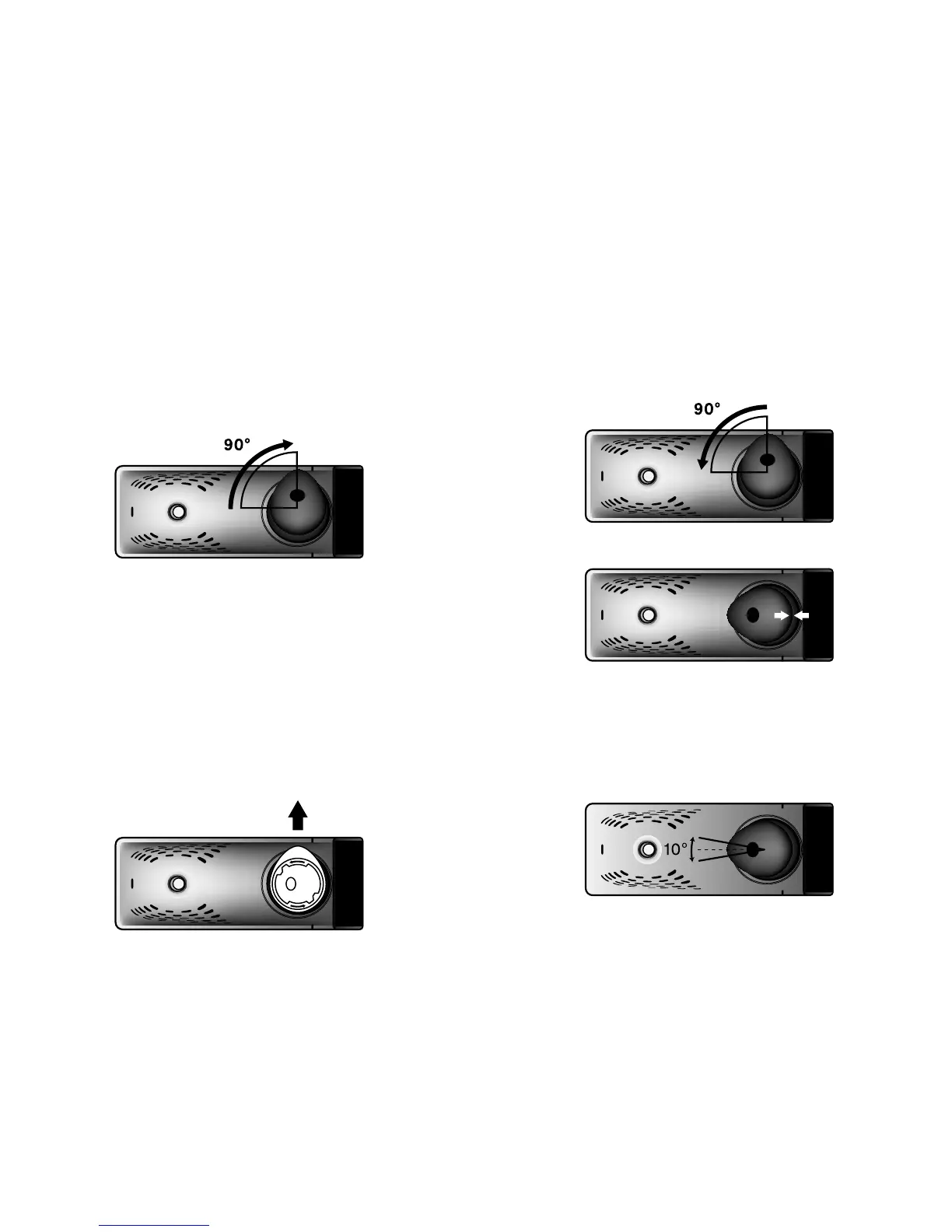

Attaching the Earbud (see figures below)
1) Hold Jawbone in your hand with the barrel facing you
(see figure).
2) With the earbud pointing upwards (see figure), push
the earbud onto the barrel. The positioning marks on
the earbud and the Jawbone barrel will align.
Removing the Earbud
1) Rotate the earbud a quarter turn (90 degrees)
clockwise.
2) Pull the earbud off Jawbone’s barrel vertically.
22 23
