CLEANING
Connect the hose of the air pump with
the brass connector on the side of the
device. Then fill the appropriate
amount of smoking material e.g. chips
into the device. Light the chips through
the holes on both sides of the
chamber. A storm lighter is best for
this. Hold the lighter for a few seconds
on both sides, so that smoke is formed
immediately. The smoker must be
placed on a non-flammable surface.
Small amounts of hot ash or charred
chips may fall out of the lighting holes.
The smoke can also be directed into
the grill at various points using the
hose. When doing so, do not heat the
hose. Different types of chips can also
be used for smoking. An extension
piece (e.g. a flexible metal hose) can
be attached to the smoker tube.
STRUCTURE
The glowing wood creates ash, which
collects at the bottom of the smoker.
This can be easily removed by
disassembling the device. To do this,
loosen the nuts on the bottom of the
device. This will make it easier for you
to remove the accumulated tar and
other soiling that occurs during the
firing process.
Insert the flue pipe through the hole
on the side of the steel cylinder. Make
sure that the hole in the pipe points
downwards and is inside the cylinder.
Tighten the flue pipe with the brass
connector, making sure that the hole
in the pipe continues to point
downward.
Connect the hook to the smoke pipe.
Push the hook through the hole in the
first steel plate, making sure that the
edges of the plate are bent upwards.
Position the other steel plate so that
the undersides of the plates face each
other.
Attach the plates and tighten them
with the wing nut.
Connect the narrow hose to the small
diameter of the smoke pipe to the
smoker. Connect the narrow hose to
the Y-connector. Connect the two
narrow hoses of the Y-connection to
the diaphragm pump. Likewise,
connect the large hose to the
intended location of the smoker.
The unit is now ready for use.

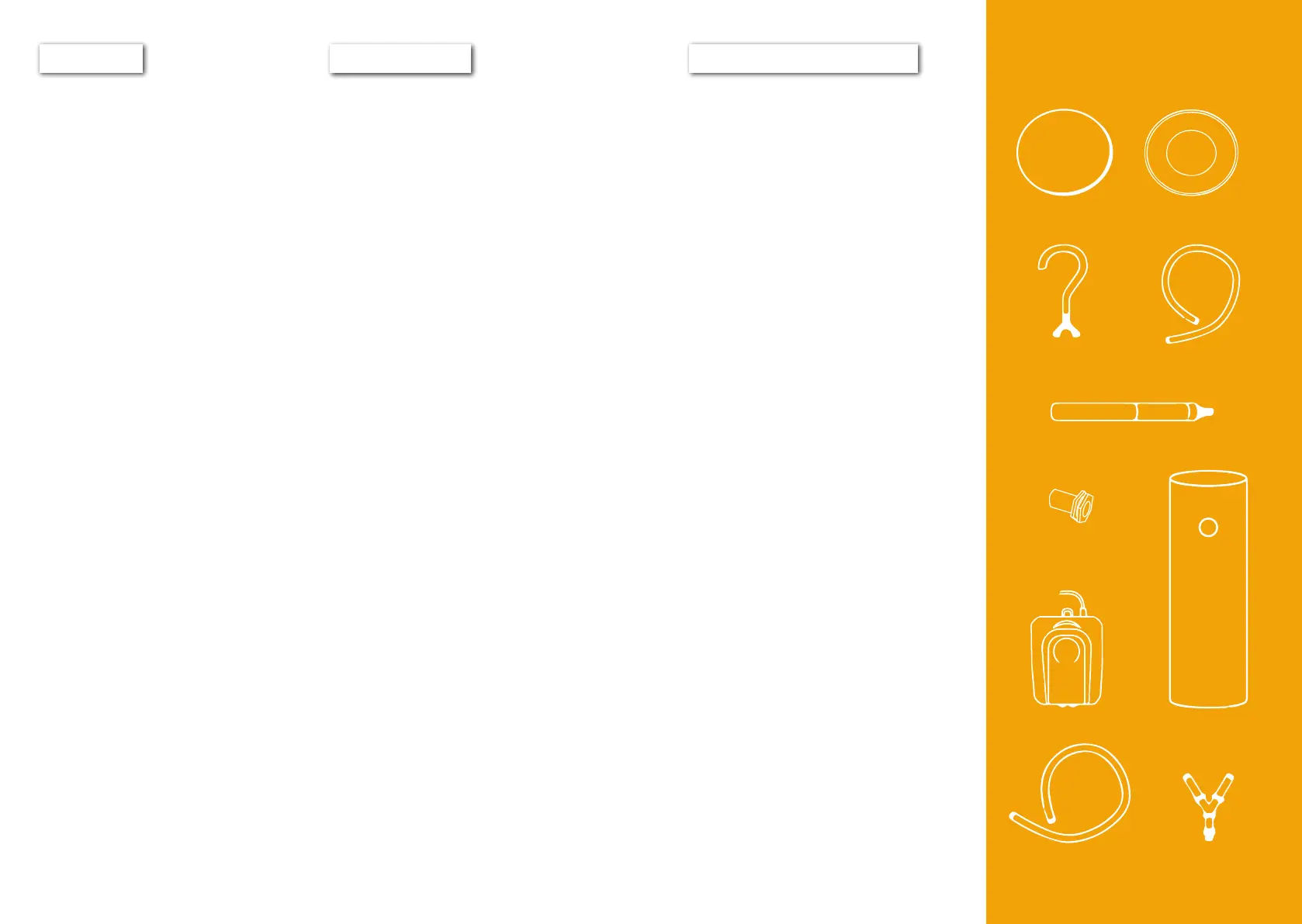

ASSEMBLY SMOKER
Hardwood lid
Steel plate 2x
Membrane pump
Steel cylinder /
Smoker
Y-connection
Flue pipe and brass connection
Hook & Wing Nut Hose
3x
q
w
r
e
t
y
u
i
Hose for smoke
supply
Smo
ke adapter for
hose attachment
