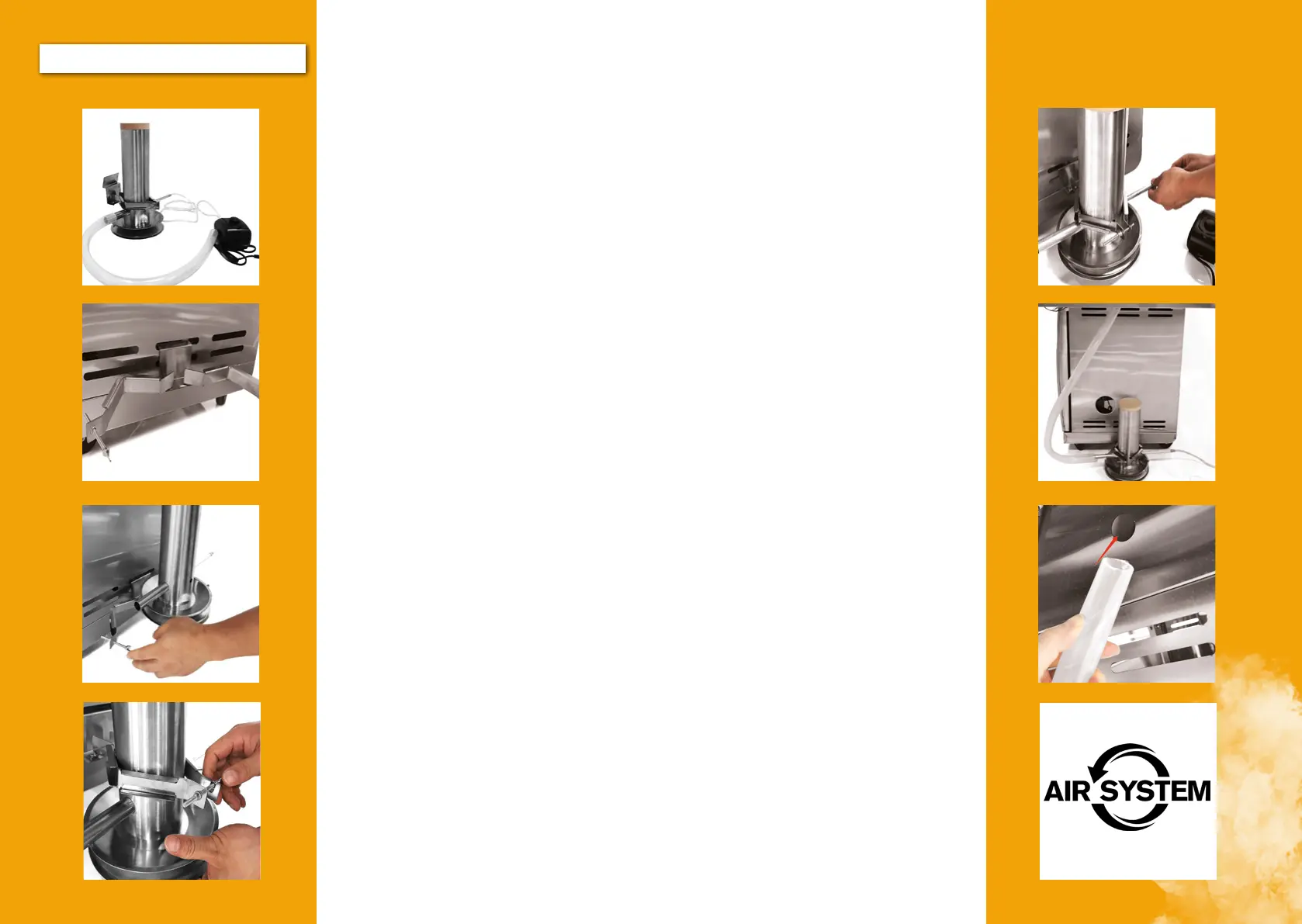

ASSEMBLY FOR HOLDER
r
e
w
q
Completely assemble the smoker to
attach it to the grill with the bracket.
Please mount the pump in the grill
base to protect it from weather
damage.
The smoker holder is specially
designed for all ALL'GRILL Chef
models from the Top-Line. Mount the
mounting sleeve on the side wall of the
grill.
Hold the smoker straight against the
holder and place the gripper arms
around the smoker.
Fasten the smoker with the screws.
The two gripping arms must be
connected in the process
t
y
u
i
Connect the narrow hose to the small
diameter of the smoke pipe to the
smoker. The narrow hose is connected
to the Y-connector. The two narrow
hoses of the Y-connector are connected
to the diaphragm pump.
L
ikewise, connect the large hose to the
designated place of the smoker.
a) Insert the brass screw for attaching
the hose to the side opening through
the grill and screw it tight. Attach the
large hose to the brass screw.
Tip especially for the ALL'GRILL Chef
gas grill: In combination with the
ALL'GRILL Air System, smoking offers
many more advantages. Try it out! Of
course, cold smoking is also possible.
a)
