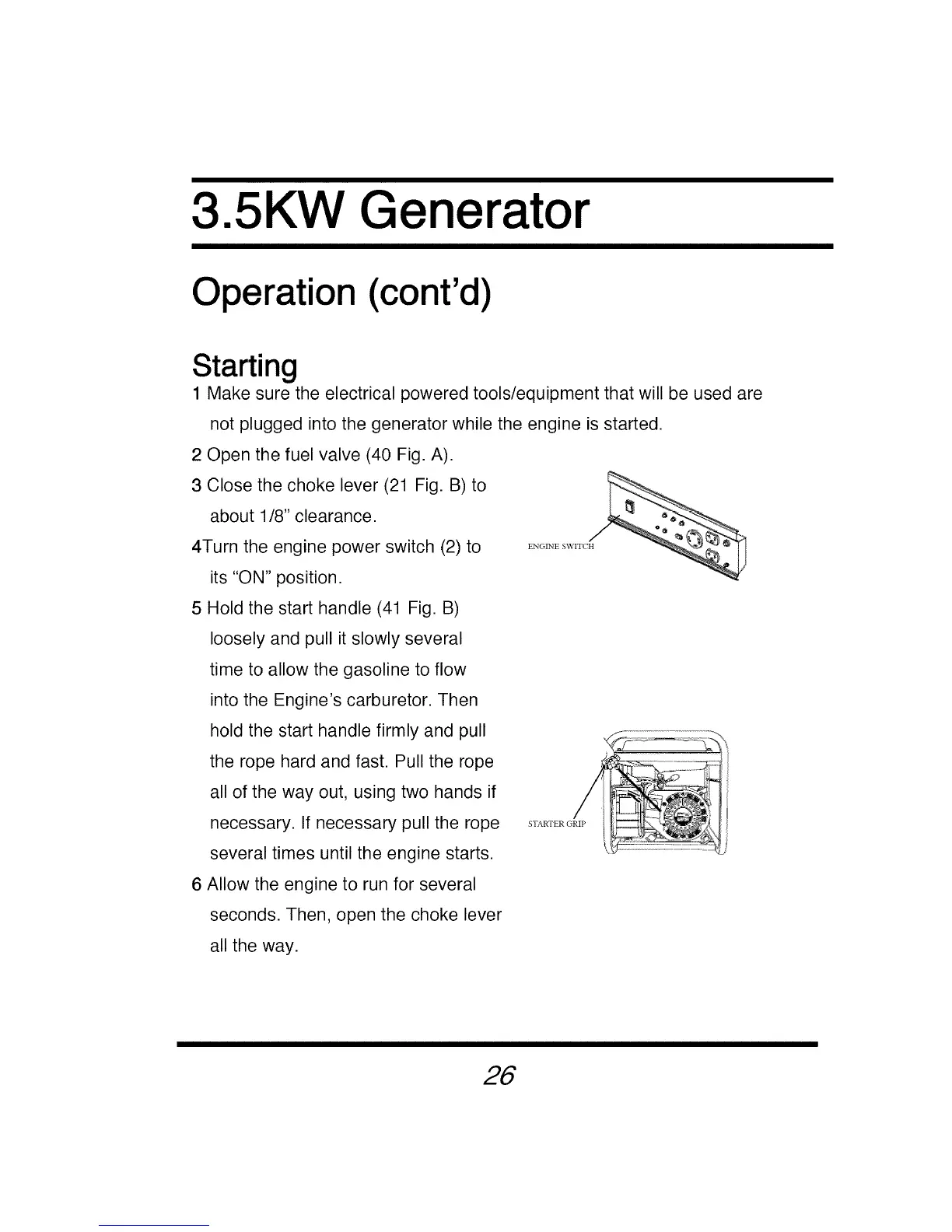

3.5KW Generator
Operation (cont'd)
Starting
1 Make sure the electrical powered tools/equipment that will be used are
not plugged into the generator while the engine is started.
2 Open the fuel valve (40 Fig. A).
3 Close the choke lever (21 Fig. B) to
about 1/8" clearance.
4Turn the engine power switch (2) to
its "ON" position.
5 Hold the start handle (41 Fig. B)
loosely and pull it slowly several
time to allow the gasoline to flow
into the Engine's carburetor. Then
hold the start handle firmly and pull
the rope hard and fast. Pull the rope
all of the way out, using two hands if
necessary. If necessary pull the rope
several times until the engine starts.
6 Allow the engine to run for several
seconds. Then, open the choke lever
all the way.
26
