All-Power APGG10000 User Manual

10000W Generator

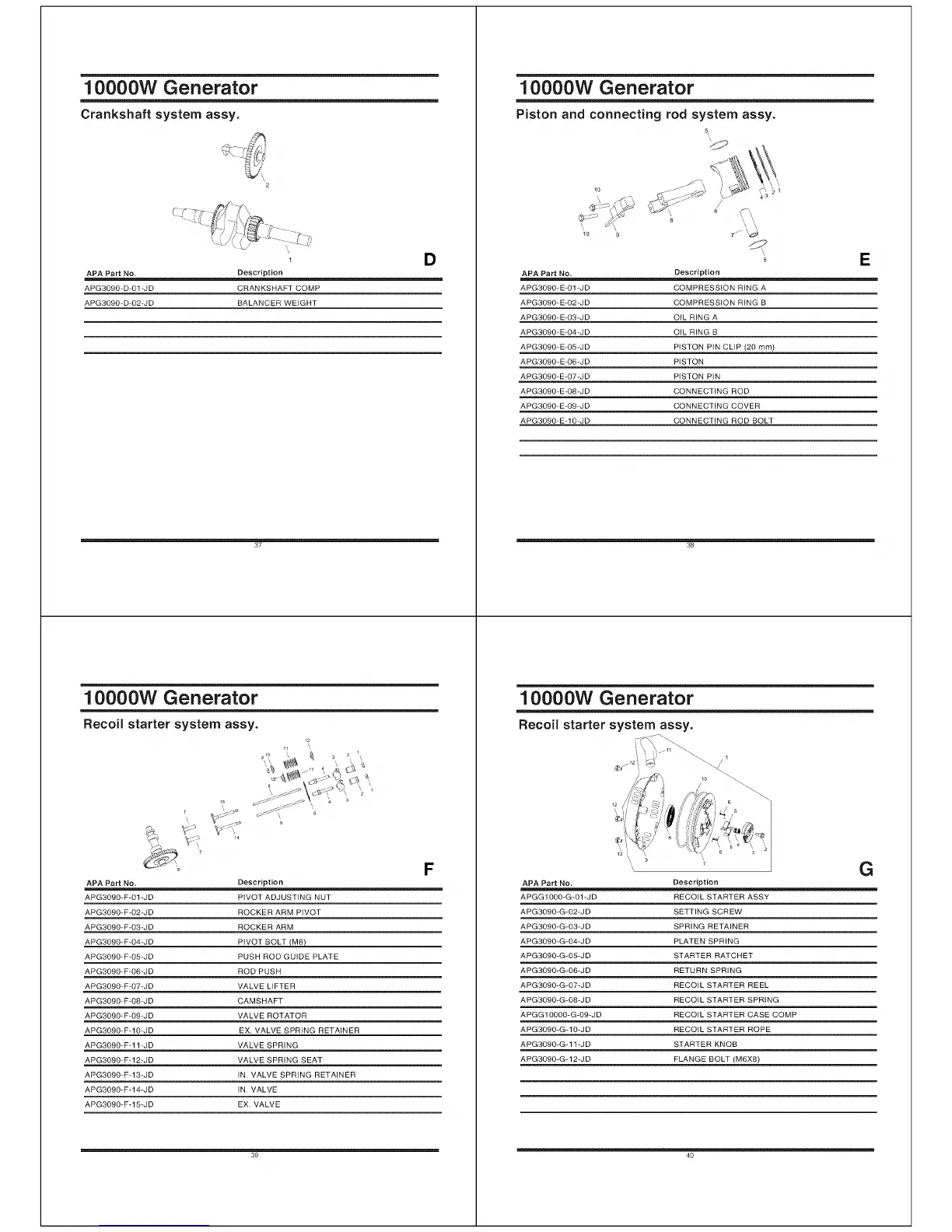

Crankshaft system assy.
\
t
APA Part No. Description
APG3090-D-01-JD CRANKSHAFT COMP
APG3090-D-02-JD BALANCER WEIGHT
D
10000W Generator
Piston and connecting rod system assy.
5,
<J
10000W Generator
Recoil starter system assy.
\
APA Part No.
APG3090-F-01-JD
APG3090-F-02-JD
APG3090-F-03-JD
APG3090-F-04-JD
APG3090-F-05-JD
APG3090-F-06-JD
APG3090-F-07-JD
APG3090-F-08-JD
APG3090-F-09-JD
APG3090-F-10-JD
APG3090-F-11-JD
APG3090-F-12-JD
APG309O-F-13-JD
APG3090-F-14-JD
APG3090-F-15-JD
Description
PIVOT ADJUSTING NUT
ROCKER ARM PIVOT
ROCKER ARM
PIVOT BOLT M_
PUSH ROD GUIDE PLATE
ROD PUSH
VALVE LIFTER
CAMSHAFT
VALVE ROTATOR
EX. VALVE SPRING RETAINER
VALVE SPRING
VALVE SPRING SEAT
iN. VALVE SPRING RETAINER
IN. VALVE
EX. VALVE
F
APA Part No. Description
APG3090-E-01-JD COMPRESSION RING A
APG3090-E-02-JD COMPRESSION RING B
APG3090-E-03-JD OIL RING A
APG3090-E-04-JD OIL RING B
APG3090-E-05-JD PISTON PIN CLIP (20 mm)
APG3090-E-06-JD PISTON
APG3090-E-07-JD PISTON PIN
APG3090-E-08-JD CONNECTING ROD
APG3090-E-09-JD CONNECTING COVER
APG3090-E-10-JD CONNECTING ROD BOLT
10000W Generator
Recoil starter system assy.
APA Part No. Description
APGG1000-G-01-JD RECOIL STARTER ASSY
APG3090-G-02-JD SETTING SCREW
APG3090-G-03-JD SPRING RETAINER
APG3090-G-04-JD PLATEN SPRING
APG3090-G-05-JD STARTER RATCHET
APG3090-G-06-JD RETURN SPRING
APG3090-G-07-JD RECOIL STARTER REEL
APG3090-G-08-JD RECOIL STARTER SPRING
APGG10000-G-09-JD RECOIL STARTER CASE COMP
APG3090-G-10-JD RECOIL STARTER ROPE
APG3090-G-11 -JD STARTER KNOB
APG3090-G-12-JD FLANGE BOLT (M6X8)
40
E
G

All-Power APGG10000 Specifications

General

Brand	All-Power
Model	APGG10000
Category	Portable Generator
Language	English
