All-Power APGG10000 User Manual

10000W Generator

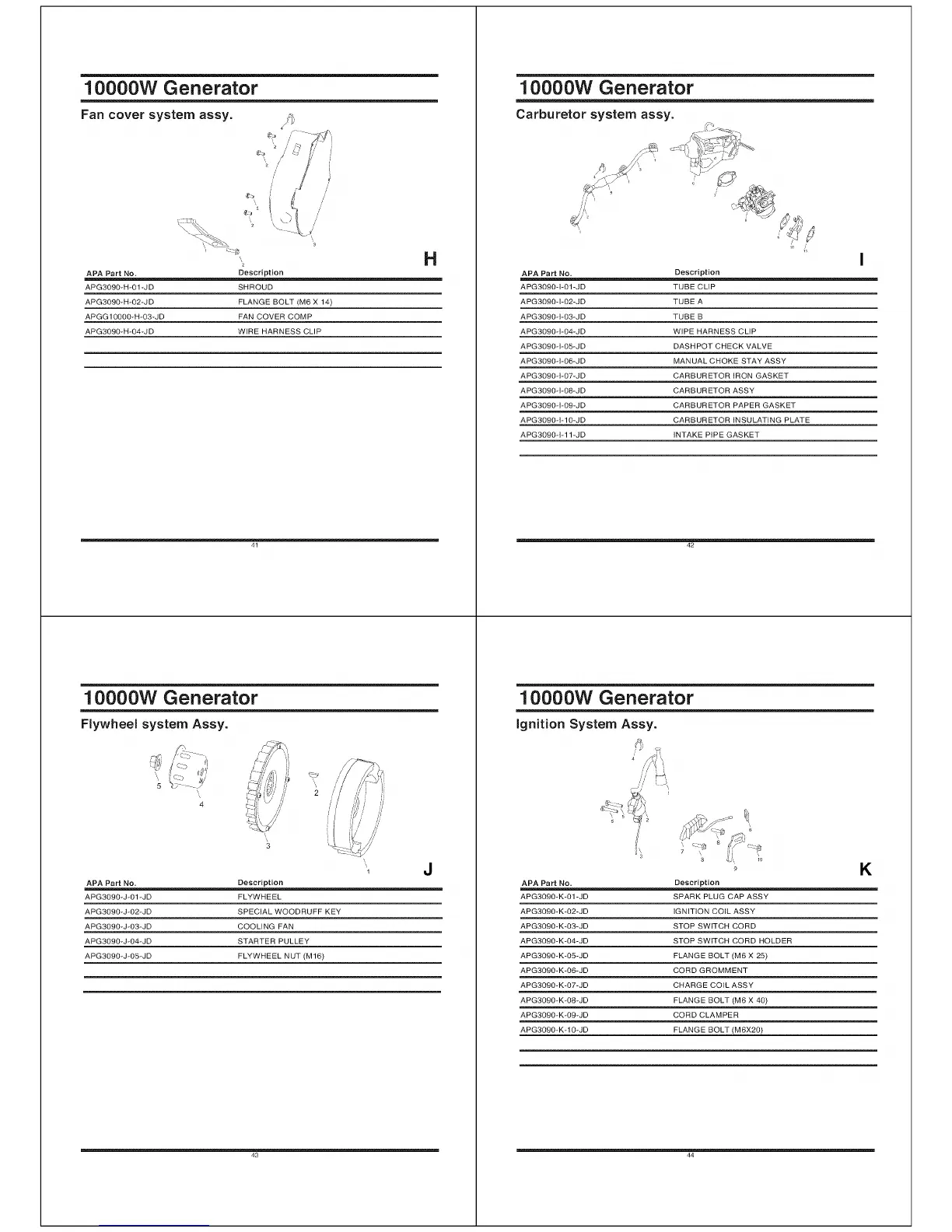

Fan cover system assy.
/
/
/
/
H
1O000W Generator
Carburetor system assy.
APA Part No. Description
APG3090-H-01-JD SHROUD
APG3090-H-02-JD FLANGE BOLT (M6 X 14)
APGG10000-H-03-JD FAN COVER COM P
APG3090-H-04-JD WIRE HARNESS CLIP
10000W Generator
Flywheel system Assy.
APA Part No. Description
APG309oq-o1-JD TUBE CLiP
APG309oq-o2-JD TUBE A
APG309oq-o3-JD TUBE B
APG309oq-o4-JD WiPE HARNESS CLiP
APG309oq-o5-JD DASHPOT CHECK VALVE
APG309oq-o6-JD MANUAL CHOKE STAY ASSY
APG309oq-oT-JD CARBURETOR iRON GASKET
APG309oq-o8-JD CARBURETOR ASSY
APG309oq-o9-JD CARBURETOR PAPER GASKET
APG309Oq-10-JD CARBURETOR iNSULATiNG PLATE
APG309oq-11-JD iNTAKE PiPE GASKET
10000W Generator
Ignition System Assy.
2
APA Part No. Description
APG3090-J-01-JD FLYWHEEL
APG3090-J-02-JD SPECIAL WOODRUFF KEY
APG3090-J-03-JD COOLING FAN
APG3090-J-04-JD STARTER PULLEY
APG3090-J-05-JD FLYWHEEL NUT (M16)
J
APA Part No.
APG3090-K-01-JD
APG3090-K-02-JD
APG3090-K-03-JD
APG3090-K-04-JD
APG3090-K-05-JD
APG3090-K-06-JD
APG3090-K-07-JD
APG3090-K-08-JD
APG3090-K-09-JD
APG3090-K-10-JD
_0
9
Description
SPARK PLUG CAP ASSY
iGNiTiON COiL ASSY
STOP SWITCH CORD
STOP SWITCH CORD HOLDER
FLANGE BOLT (M6 X 25)
CORD GROMMENT
CHARGE COiL ASSY
FLANGE BOLT (M6 X 40)
CORD CLAMPER
FLANGE BOLT (M6X20)
K
