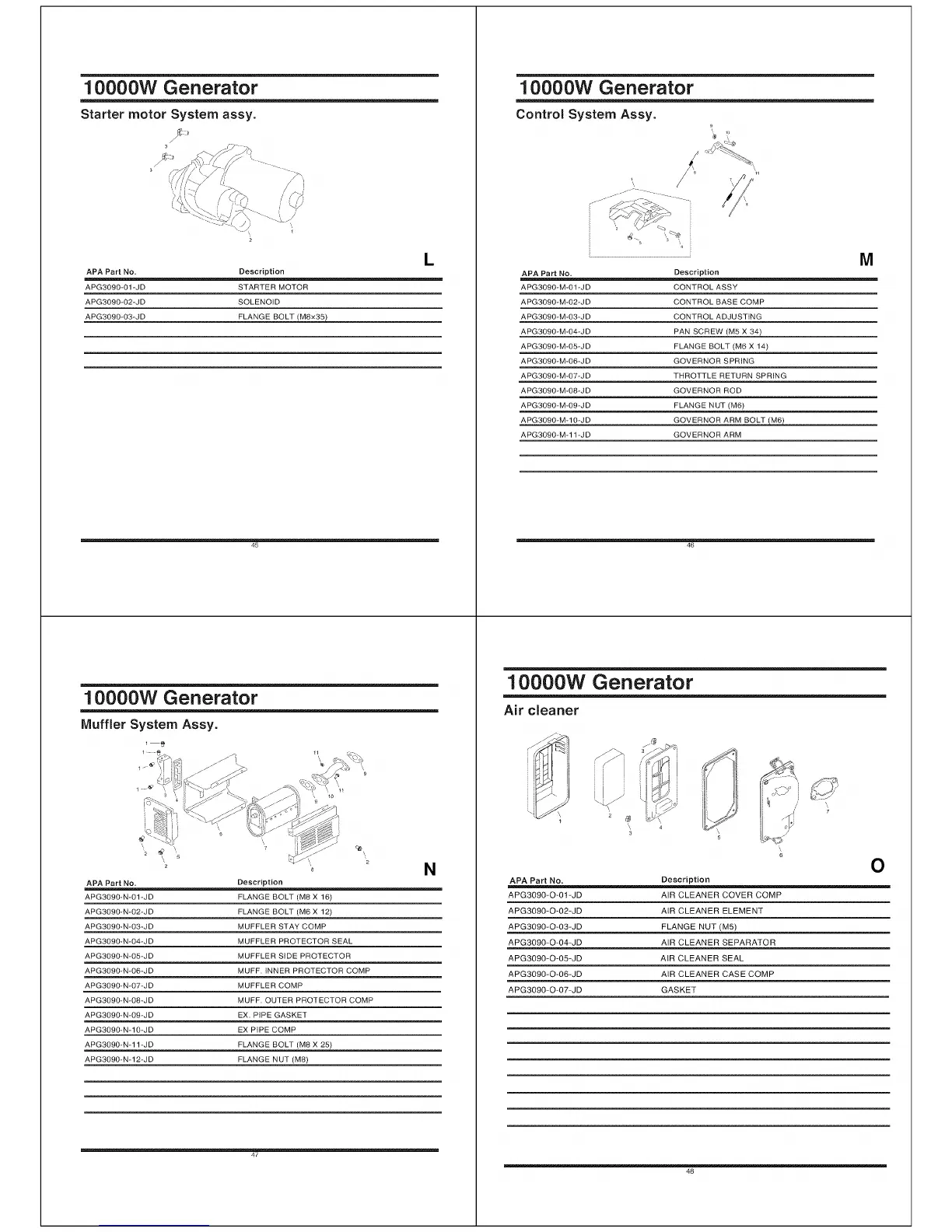

All-Power APGG10000 User Manual

10000W Generator
Starter motor System assy.
APA Part No. Description
APG3090-01-JD STARTER MOTOR
APG3090-02-JD SOLENOID
APG3090-03-JD FLANGE BOLT (M8x35)
L
10000W Generator
Control System Assy.
APA Part No.
APG3090-M-01-JD
APG3090-M-02-JD
APG3090-M-03-JD
APG3090-M-04-JD
APG3090-M-05-JD
APG3090-M-06-JD
APG3090-M-07-JD
APG3090-M-08-JD
APG3090-M-09-JD
APG3090-M-10-JD
APG3090-M-11-JD
Description
CONTROLASSY
CONTROLBASECOMP
CONTROLADJUSTING
PAN SCREW (MS X 34)
FLANGE BOLT (M6 X 14)
GOVERNOR SPRING
THROTTLE RETURN SPRING
GOVERNOR ROD
FLANGE NUT(M6)
GOVERNOR ARM BOLT M_6).
GOVERNOR ARM
M
10000W Generator
10000W Generator
Air cleaner
Muffler System Assy.
,, 5
', 2
2 '8 N
APA Part No. Description
APG3090-N-O1-JD FLANGE BOLT (M8 X 16)
APG3090-N-O2-JD FLANGE BOLT (M6 X 12)
APG3090-N-O3-JD MUFFLER STAY COMP
APG3090-N-O4-JD MUFFLER PROTECTOR SEAL
APG3090-N-OS-JD MUFFLER SIDE PROTECTOR
APG3090-N-O6-JD MUFF. INNER PROTECTOR COMP
APG3090-N-O7-JD MUFFLER COMP
APG3090-N-O8-JD MUFF. OUTER PROTECTOR COMP
APG3090-N-O9-JD EX. PiPE GASKET
APG3090-N-10-JD EX PiPE COMP
APG3090-N-11-JD FLANGE BOLT (M8 X 25)
APG309O-N-12-JD FLANGE NUT (M8)
47
APA Part No. Description
APG3090=O=01=JD AiR CLEANER COVER COMP
APG3090=O=02=JD AiR CLEANER ELEMENT
APG3090=O=03=JD FLANGE NUT (M5)
APG3090=O=04=JD AiR CLEANER SEPARATOR
APG3090=O=05=JD AiR CLEANER SEAL
APG3090=O=06=JD AiR CLEANER CASE COMP
APG3090=O=07=JD GASKET
48
