All-Power APGG10000 User Manual

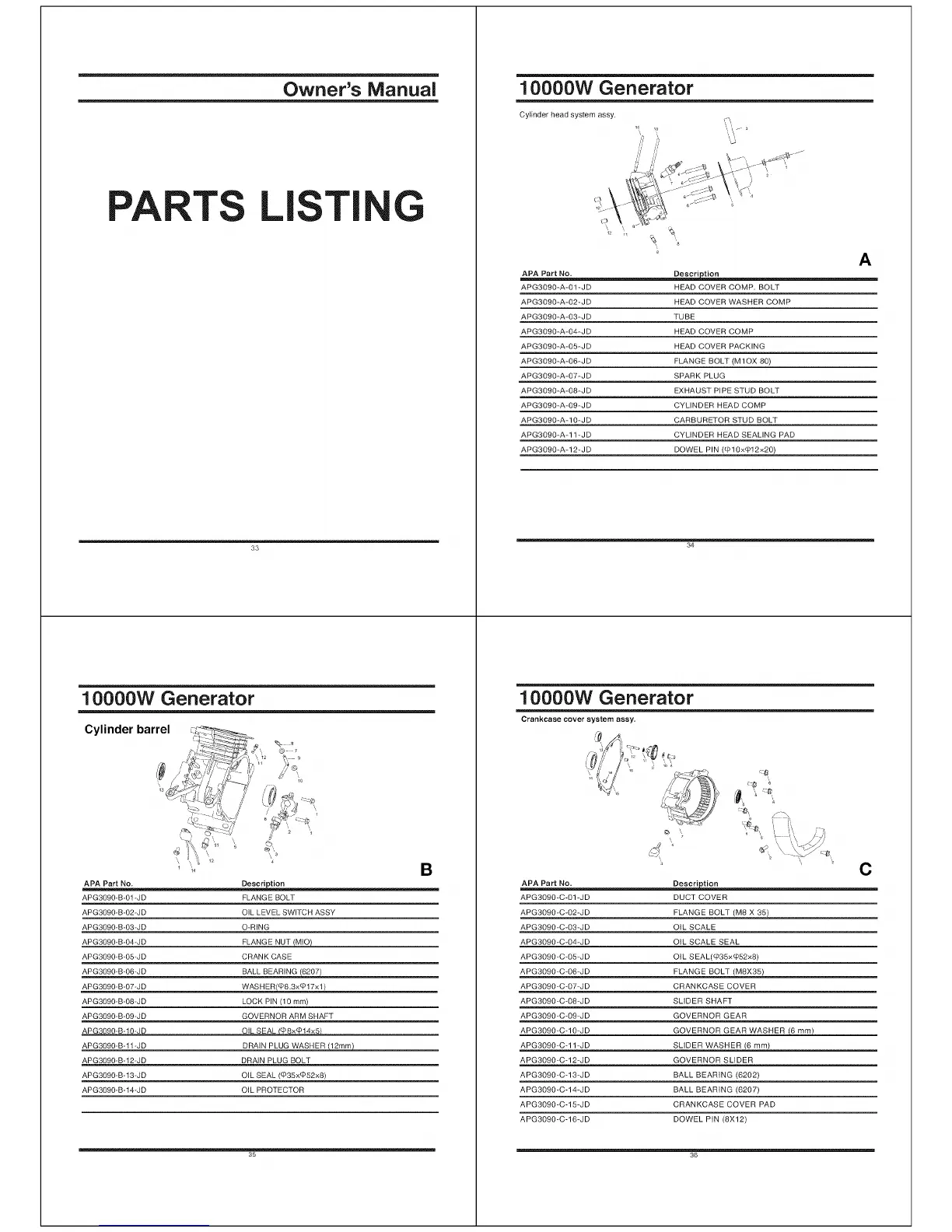

PARTS
Owner's Manual
LISTI G
10000W Generator
Cylinder head system assy.
10000W Generator
8
12
14
', 3
B
Cylinder barrel
Description
FLANGE BOLT
OIL LEVEL SWITCH ASSY
O-RING
FLANGE NUT MI(MLO)
CRANK CASE
BALL BEARING (6207)
WASHER(q_8.3x@17x1)
LOCK PIN (10 mm)
GOVERNOR ARM SHAFT
OIL SEAL q_8xq)14x5
APA Part No.
APG3090-B-01-JD
APG3090-B-02-JD
APG3090-B-03-JD
APG3090-B-04-JD
APG3090-B-05-JD
APG3090-B-06-JD
APG3090-B-07-JD
APG3090-B-08-JD
APG3090-B-09-JD
APG3090-B-10-JD
APG3090-B-11-JD
APG3090-B-12-JD
APG3090-B-13-JD
APG3090-B-14-JD
DRAIN PLUG WASHER
DRAIN PLUG BOLT
OIL SEAL ((P35xq)52x8)
OIL PROTECTOR
A
APA Part No. DescN tion
APG3090-A-01-JD HEAD COVER COMP. BOLT
APG3090-A-02-JD HEAD COVER WASHER COMP
APG3090-A-03-JD TUBE
APG3090-A-04-JD HEAD COVER COMP
APG3090-A-05-JD HEAD COVER PACKING
APG3090-A-06-JD FLANGE BOLT (M1OX 80)
APG3090-A-07-JD SPARK PLUG
APG3090-A-08-JD EXHAUST PIPE STUD BOLT
APG3090-A-09-JD CYLINDER HEAD COMP
APG3090-A-10-JD CARBURETOR STUD BOLT
APG3090-A-11-JD CYLINDER HEAD SEALING PAD
APG3090-A-12-JD DOWEL PIN (q} 10xCPl 2x20)
34
10000W Generator
Crankcase cover system assy.
C
APG3090-C-01-JD DUCT COVER
APG3090-C-02-JD FLANGE BOLT (M8 X 35)
APG3090-C-03-JD OIL SCALE
APG3090-C-04-JD OIL SCALE SEAL
APG3090-C-05-JD OIL SEAL(q)35xq)52x8)
APG3090-C-06-JD FLANGE BOLT (M8X35)
APG3090-C-07-JD CRANKCASE COVER
APG3090-C-08-JD SLIDER SHAFT
APG3090-C-09-JD GOVERNOR GEAR
APG3090-C-10-JD GOVERNOR GEAR WASHER
APG3O9O-C-11-JD SLIDER WASHER (6 mm)
APG309O-C-12-JD GOVERNOR SLIDER
APG309O-C-13-JD BALL BEARING (6202)
APG309O-C-14-JD BALL BEARING (6207)
APG309O-C-15-JD CRANKCASE COVER PAD
APG309O-C-16-JD DOWEL PIN (8X12)
APA Part No. Descri tion

All-Power APGG10000 Specifications

General

Brand	All-Power
Model	APGG10000
Category	Portable Generator
Language	English
