REPLACING THE CROSSFADER

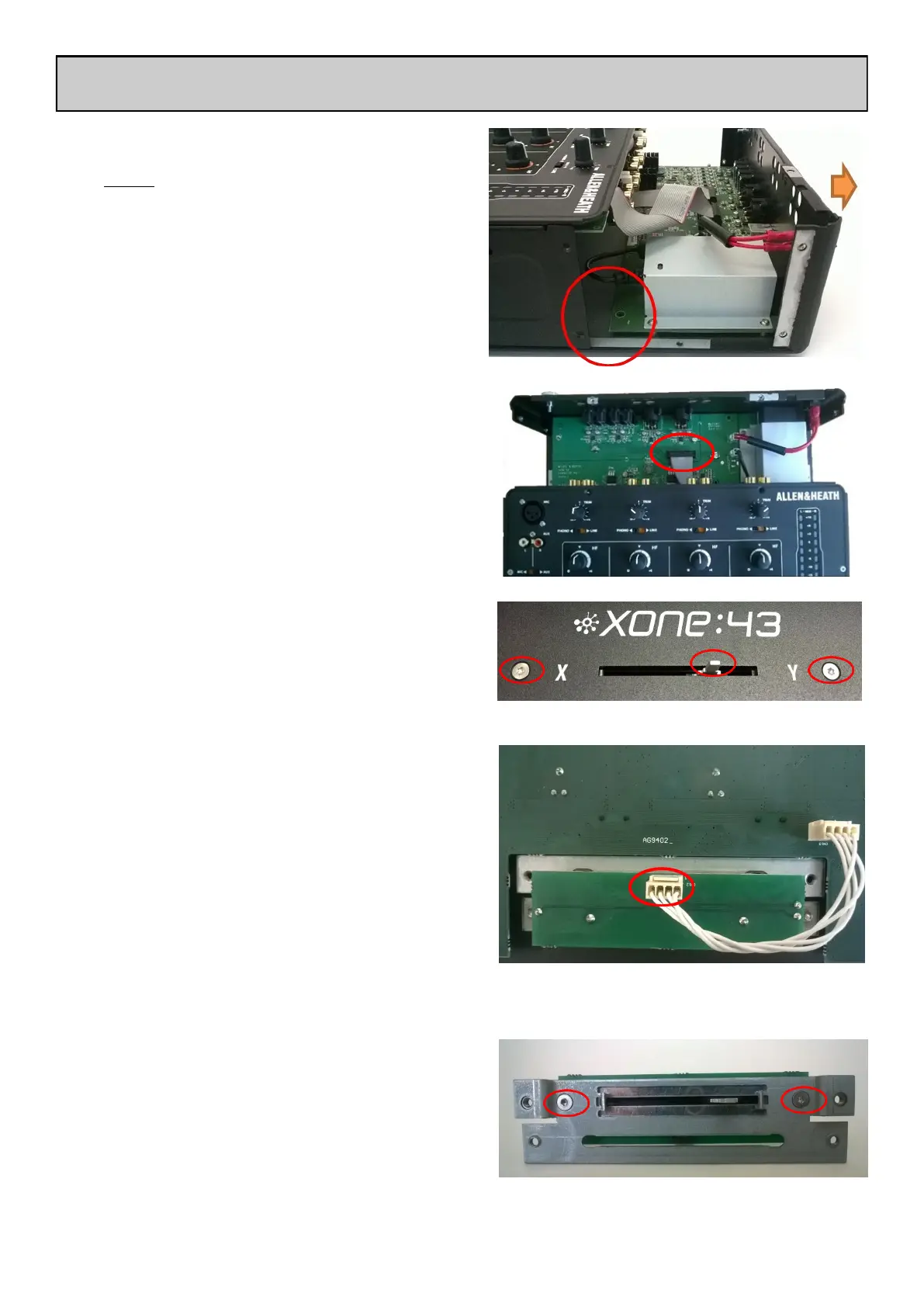

Step 4:
 Gently slide the two halves of the console
apart until the rear connector PCB is wholly
visible.
Step 5:
 With care unplug the grey flat wireform from
the connector PCB.
 The console base and front panel can now be
separated.
Step 7:
 With care unplug the white harness from the
connector PCB.
 The cross fader and plate can now be sepa-
rated.
Step 8:
 Remove and retain 2 screws from crossfader
plate.
 Note that these 2 screws from the cross fad-
er plate are a different size length, do not mix
them up with the other screws.
Step 6:
 Remove the crossfader cap.
 Remove and retain 2 screws from crossfader
front panel.
