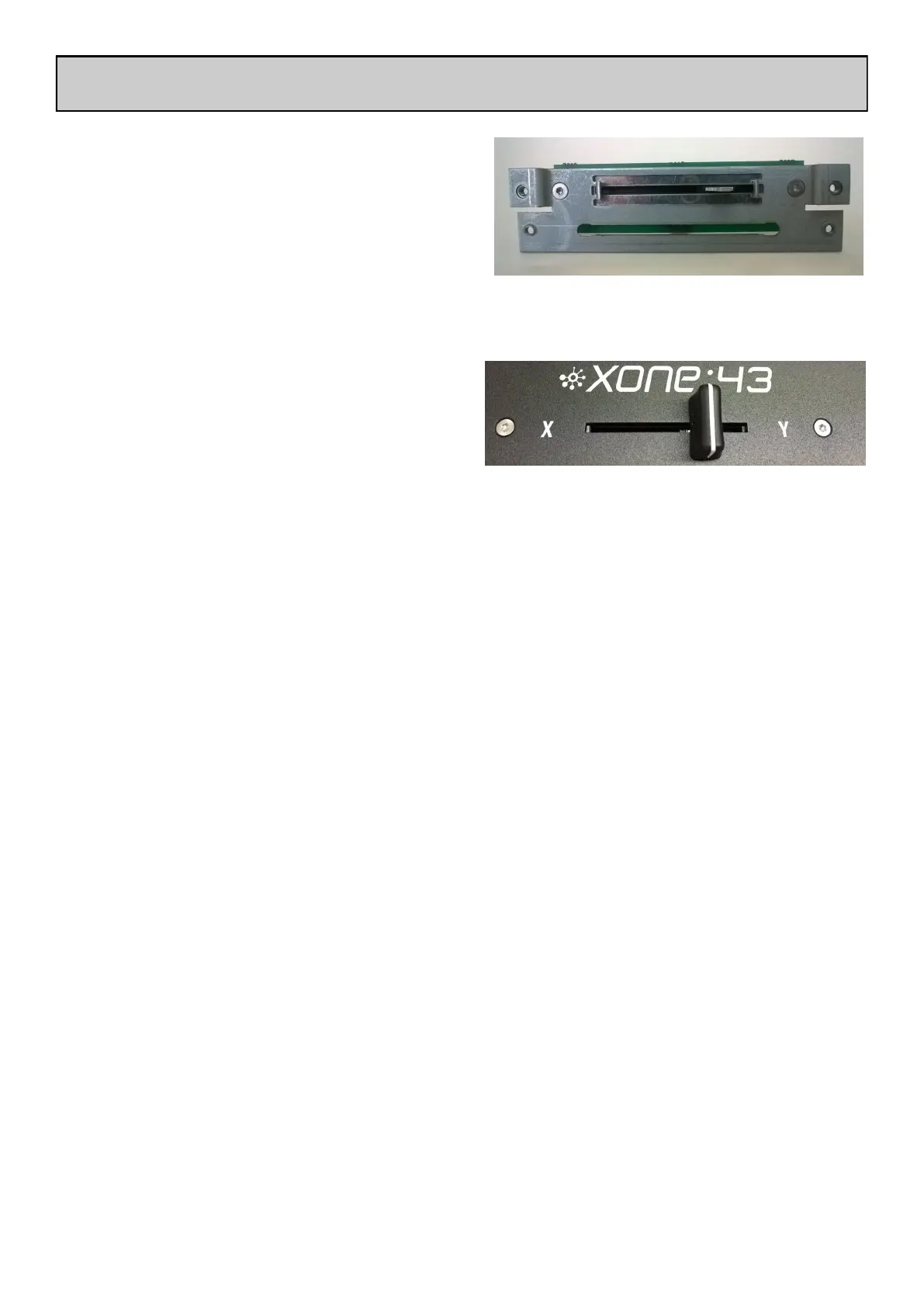

REPLACING THE CROSSFADER
Step 9:
 Fit the new replacement crossfader to the
bracket as shown (slot 1).
 The longer (slot 2) beneath is for mounting
the optional Innofader (not supplied).
The standard crossfader must be fitted to slot
1 and not slot 2.
Step 10:
 Screw the crossfader plate back to the con-
sole.
 Replace the crossfader cap.
 Connect the white harness from the connect-
or PCB.
Step 11:
 Re-assembly of the console is the reverse of
steps 1-5. When re-assembling the console
take great care to refit the wireform fully into
the socket.
