Publication 1336 IMPACT-5.5ML – May, 1999 5
1336 IMPACT Quick Start Guide

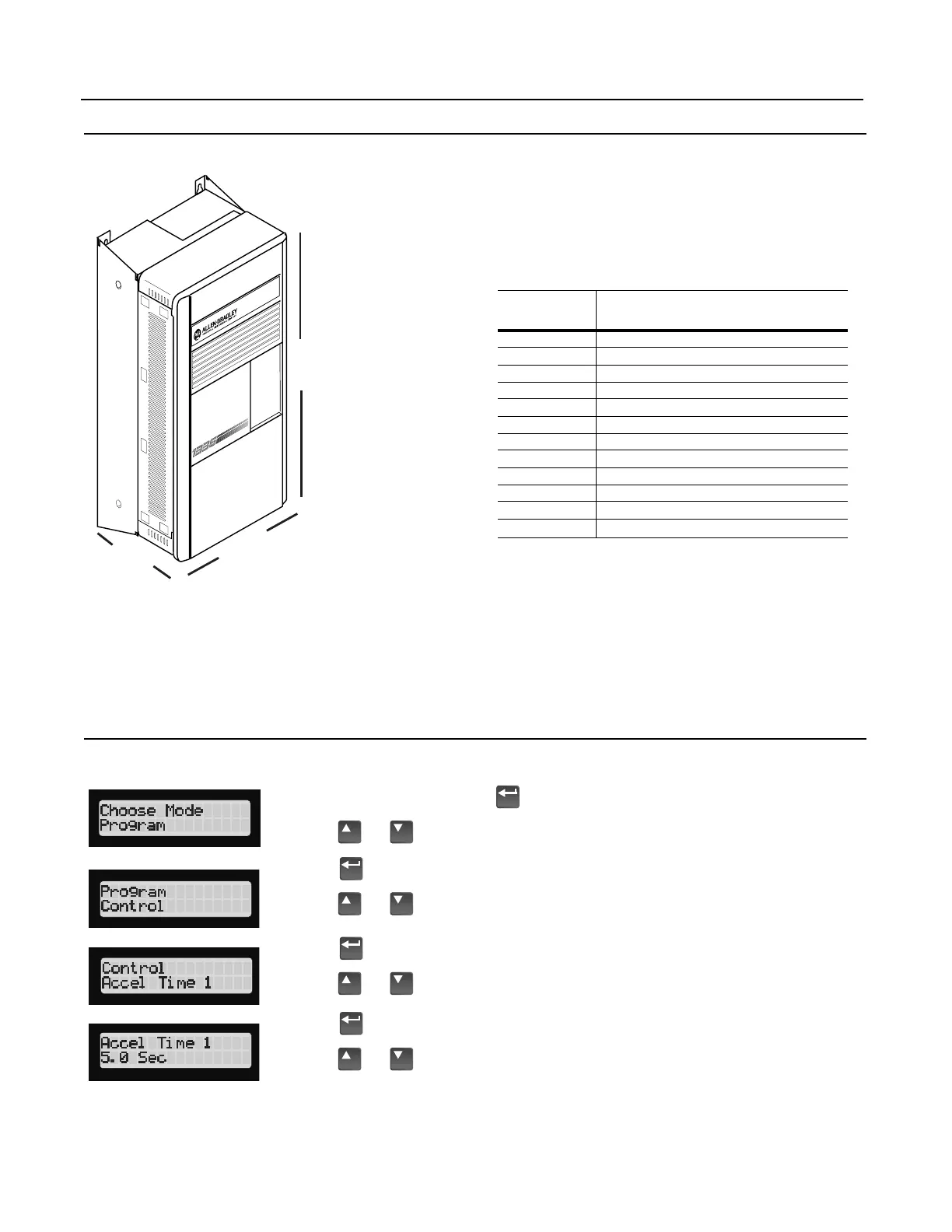

Drive Dimensions
To determine the size of your drive, refer to the following illustration and table.
HIM Operation
Parameter programming or viewing is accomplished through the Program or Display modes shown below.
1. From the Status Display, press to display “Choose Mode.”
2. Press or to display “Program” (or “Display”).
3. Press .
4. Press or until the desired file is displayed.
5. Press .
6. Press or until the desired group is displayed.
7. Press .
8. Press or to scroll to the desired parameter.
Width
Depth
Height
Frame
Width x Height x Depth
Millimeters (inches)
A1
215.9 (8.50) x 290.0 (11.42) x 160.0 (6.30)
A2
215.9 (8.50) x 290.0 (11.42) x 180.5 (7.10)
A3
215.9 (8.50) x 290.0 (11.42) x 207.0 (8.15)
A4
260.0 (10.24) x 350.0 (13.78) x 212.0 (8.35)
B
276.4 (10.88) x 476.3 (18.75) x 225.0 (8.86)
C
301.8 (11.88) x 701.0 (27.60) x 225.0 (8.86)
D
381.5 (15.02) x 1240.0 (48.82) x 270.8 (10.66)
E-Enclosed
511.0 (20.12) x 1498.6 (59.00) x 477.5 (18.80)
E-Open
511.0 (20.12) x 1498.6 (59.00) x 372.6 (14.67)
F
762.0 (30.00) x 2286.0 (90.00) x 635.0 (25.00)
G
762.0 (30.00) x 2387.6 (94.0) x 635.0 (25.00)
H
1270.0 (50) x 2324.1 (91.50)
➀
x 635.0 (25)
➀
Fan height (635.0 (25.00)) not included.
