34 Discrete I/O Modules
Publication 1746-IN005A-US-P

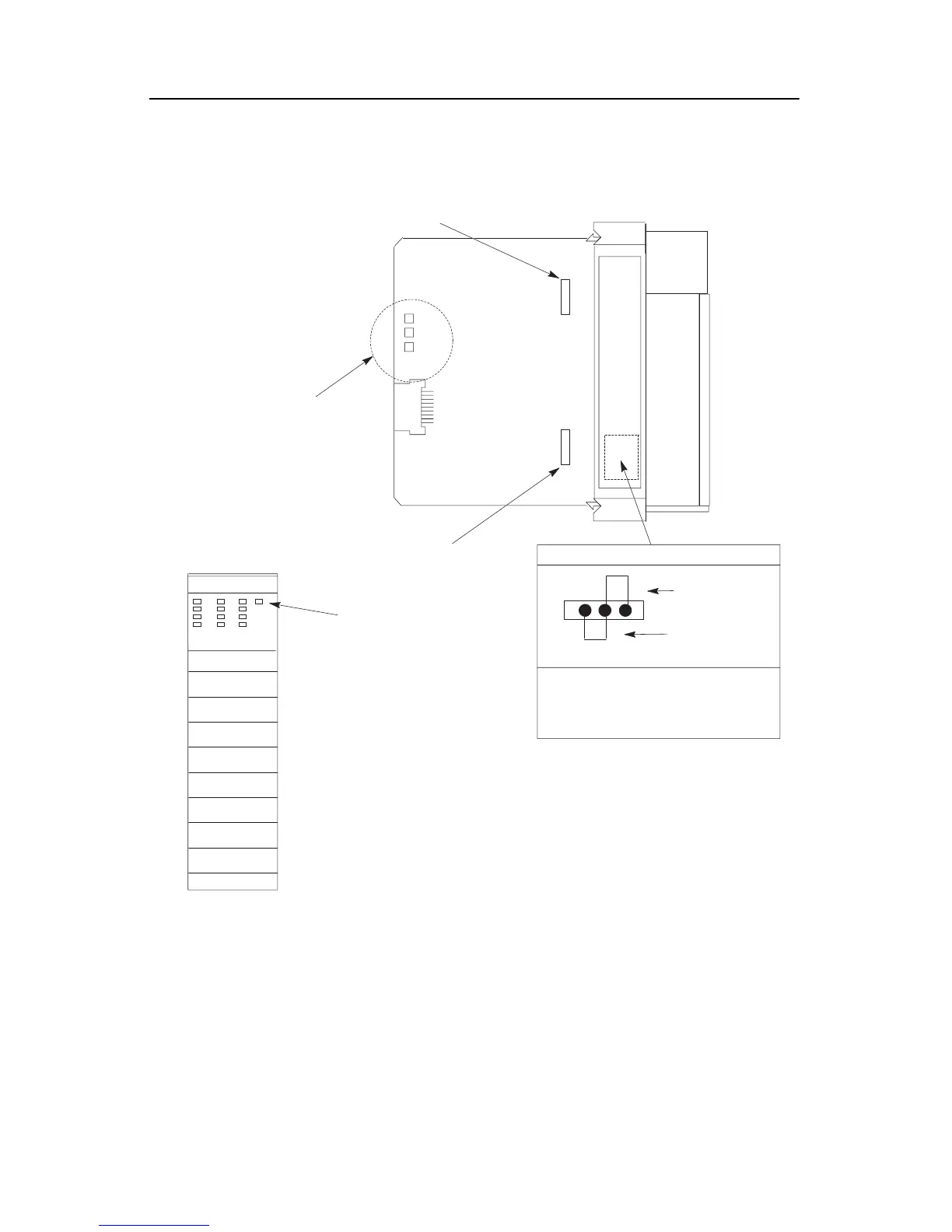

Figure 3:Location of Jumpers and Fuses for 1746-OAP12
1
WHEN FUSE OPENS
2
23
OUTPUT
1
JP1
23
JP1
F
U
S
E
F1
Left Side View
Jumper for processor
notification (JP1)
F2
PROCESSOR
CONTINUES
PROCESSOR
FAULTS
REPLACEMENT FUSE:
SAN-O HQ 6.3A
A-B CAT. NO. 1746-F9
Jumper Settings and
Fuse Replacement
Information
Blown Fuse LED
Front View
