1769 Compact I/O Communication Bus Expansion Cables 5
Publication 1769-IN014B-EN-P - May 2002
Cable Types and Lengths
Table 1
Catalog Number Cable Type
Length
(1)
(1)
Approximate cable length is measured from end-to-end of the cable only.
1769-CLL1 Left bank-to-left bank expansion 1 ft. (305 mm)
1769-CLL3 Left bank-to-left bank expansion 3.28 ft. (1 m)
1769-CRR1 Right bank-to-right bank expansion 1 ft. (305 mm)
1769-CRR3 Right bank-to-right bank expansion 3.28 ft. (1 m)
1769-CRL1 Right bank-to-left bank expansion 1 ft. (305 mm)
1769-CRL3 Right bank-to-left bank expansion 3.28 ft. (1 m)
18 mm
(0.71 in.)
15 mm
(0.59 in.)
15 mm
(0.59 in.)
118 mm
(4.65 in.)
118 mm
(4.65 in.)
118 mm
(4.65 in.)
32 mm
(1.26 in.)
18 mm
(0.71 in.)
32 mm
(1.26 in.)

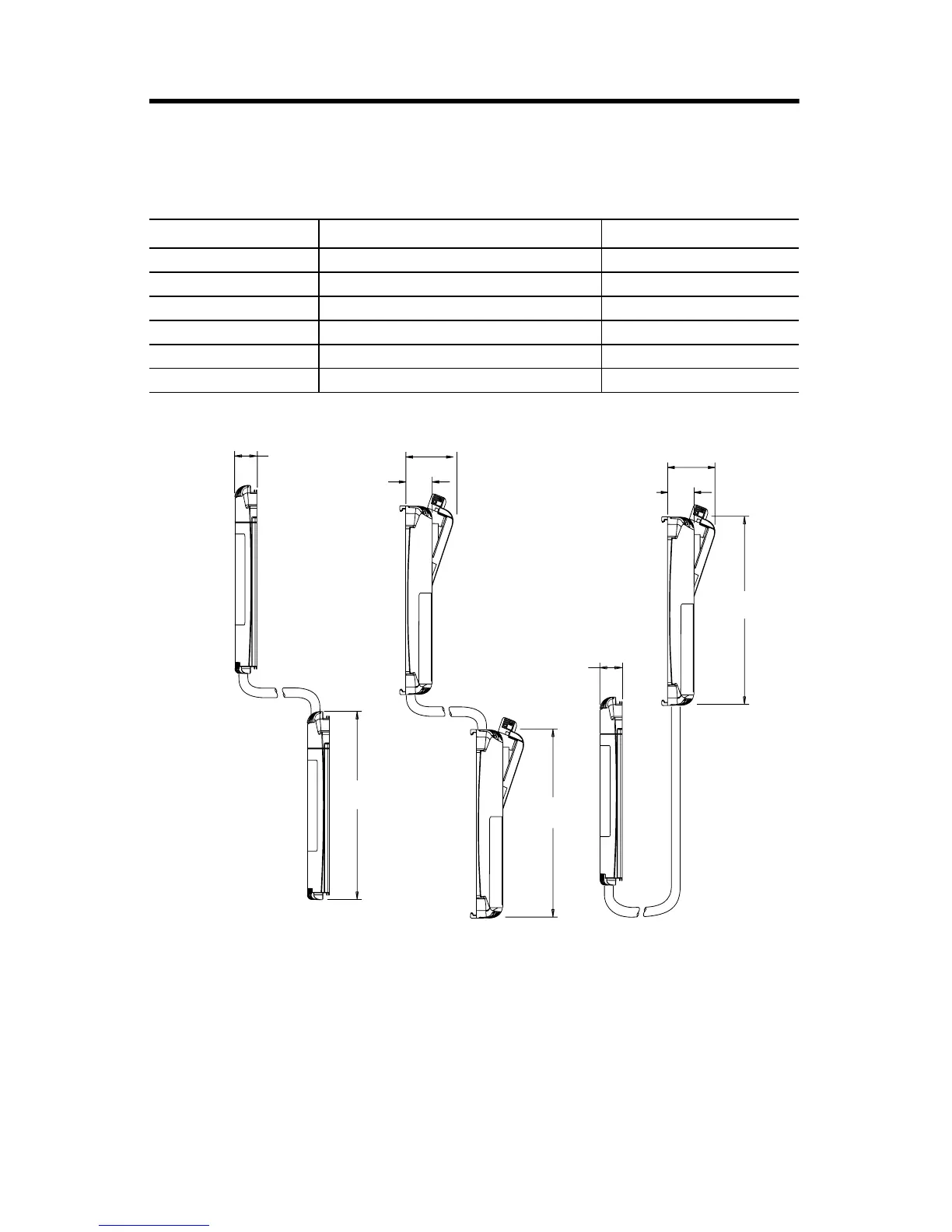

1769-CLLx
1769-CRRx 1769-CRLx
