Rockwell Automation Publication 22C-UM001J-EN-E - January 2017 145
Accessories and Dimensions Appendix B

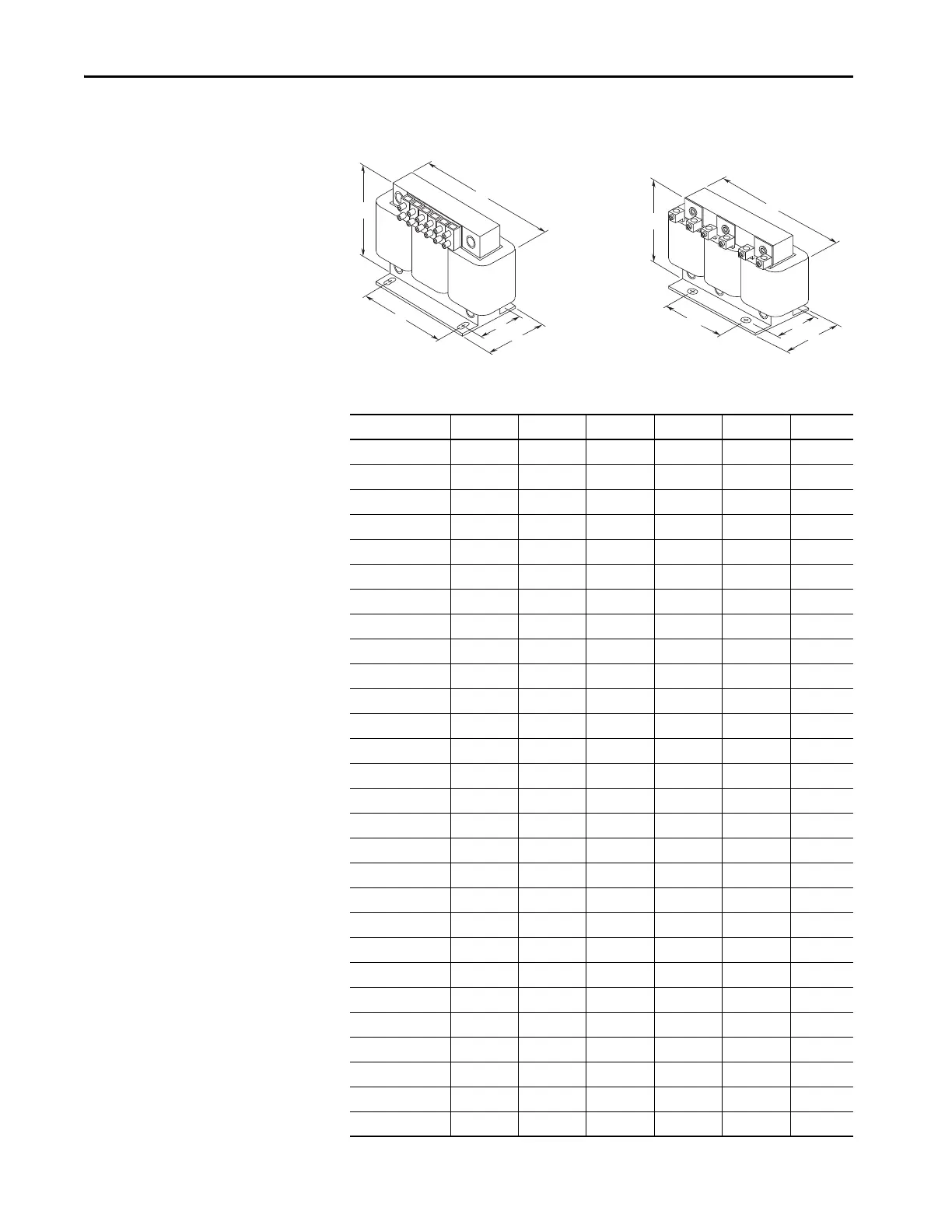

Figure 25 - Bulletin 1321-3R Series Line Reactors
Catalog Number A B C D E Weight
1321-3R8-C 152 (6.00) 122 (4.80) 86 (3.40) 67 (2.62) 51 (2.00) 5.0 (11)
1321-3R8-D 152 (6.00) 122 (4.80) 86 (3.40) 63 (2.48) 51 (2.00) 5.9 (13)
1321-3R12-A 152 (6.00) 127 (5.00) 84 (3.30) 53 (2.10) 51 (2.00) 4.1 (9)
1321-3R12-B 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 4.5 (10)
1321-3R12-C 152 (6.00) 127 (5.00) 91 (3.60) 69 (2.73) 51 (2.00) 8.2 (18)
1321-3R18-B 152 (6.00) 135 (5.30) 89 (3.50) 63 (2.48) 51 (2.00) 5.5 (12)
1321-3R18-C 183 (7.20) 146 (5.76) 92 (3.63) 66 (2.60) 76 (3.00) 7.3 (16)
1321-3R25-A 183 (7.20) 146 (5.76) 85 (3.35) 60 (2.35) 76 (3.00) 4.9 (11)
1321-3R25-B 183 (7.20) 146 (5.76) 85 (3.35) 60 (2.35) 76 (3.00) 6.3 (14)
1321-3R25-C 183 (7.20) 146 (5.76) 105 (4.10) 79 (3.10) 76 (3.00) 8.1 (18)
1321-3R35-A 193 (7.60) 146 (5.76) 91 (3.60) 66 (2.60) 76 (3.00) 6.3 (14)
1321-3R35-B 183 (7.20) 147 (5.80) 95 (3.75) 79 (3.10) 76 (3.00) 7.3 (16)
1321-3R35-C 229 (9.00) 187 (7.35) 118 (4.66) 80 (3.16) 76 (3.00) 13.6 (30)
1321-3R45-A 229 (9.00) 187 (7.35) 118 (4.66) 80 (3.16) 76 (3.00) 10.4 (23)
1321-3R45-B 229 (9.00) 184 (7.25) 118 (4.66) 80 (3.16) 76 (3.00) 12.7 (28)
1321-3R45-C 229 (9.00) 187 (7.35) 135 (5.30) 93 (3.66) 76 (3.00) 17.7 (39)
1321-3R55-A 229 (9.00) 187 (7.35) 118 (4.66) 80 (3.16) 76 (3.00) 10.9 (24)
1321-3R55-B 229 (9.00) 187 (7.35) 118 (4.66) 80 (3.16) 76 (3.00) 12.3 (27)
1321-3R55-C 229 (9.00) 184 (7.25) 142 (5.60) 99 (3.90) 76 (3.00) 18.6 (41)
1321-3R80-A 274 (10.80) 216 (8.50) 139 (5.47) 88 (3.47) 92 (3.63) 19.5 (43)
1321-3R80-B 274 (10.80) 216 (8.50) 139 (5.47) 88 (3.47) 92 (3.63) 23.1 (51)
1321-3R80-C 274 (10.80) 210 (8.26) 156 (6.16) 106 (4.16) 92 (3.63) 25.0 (55)
1321-3R100-A 274 (10.80) 217 (8.55) 139 (5.48) 84 (3.30) 92 (3.63) 21.3 (47)
1321-3R100-B 274 (10.80) 210 (8.26) 144 (5.66) 93 (3.66) 92 (3.63) 23.1 (51)
1321-3R100-C 274 (10.80) 210 (8.26) 156 (6.16) 106 (4.16) 92 (3.63) 33.6 (74)
1321-3R130-A 229 (9.00) 179 (7.04) 118 (4.66) 80 (3.16) 76 (3.00) 13.2 (29)
1321-3R130-B 274 (10.80) 213 (8.40) 144 (5.66) 93 (3.66) 92 (3.63) 25.9 (57)
1321-3R130-C 279 (11.00) 216 (8.50) 156 (6.16) 106 (4.16) 92 (3.63) 29.0 (64)
D
C
B
A
E
A1
A2
B1
B2
C1
C2
B
A
E
D
C
IP00 (Open) –
45 Amps (fundamental) and Below
IP00 (Open) –
55 Amps (fundamental) and Above
Dimensions are in millimeters and (inches). Weights are in kilograms and (pounds).
