140 Rockwell Automation Publication 22C-UM001J-EN-E - January 2017
Appendix B Accessories and Dimensions

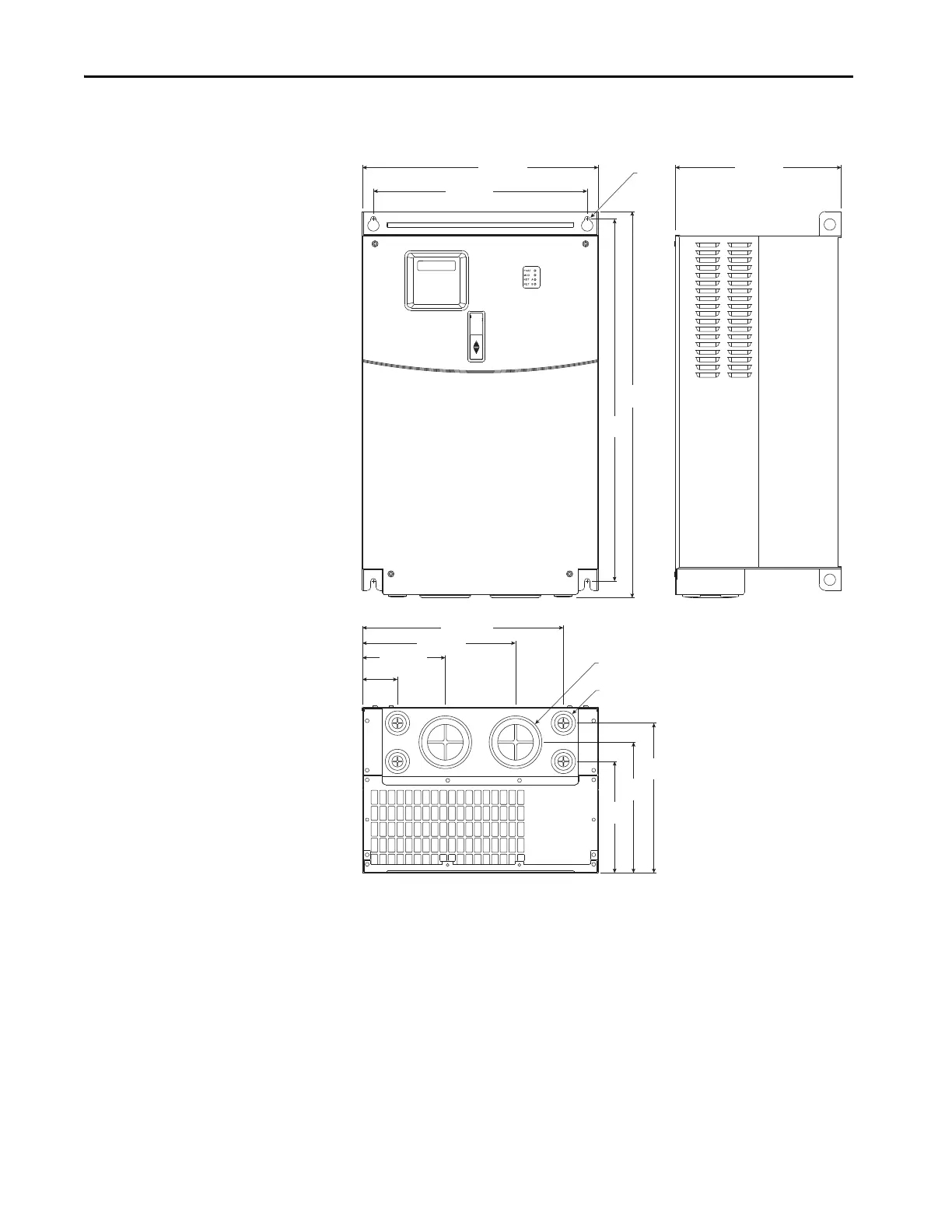

Figure 20 - PowerFlex 400 Frame E Drive
Dimensions are in millimeters and (inches)
130.2 (5.13)
240.2 (9.46)
315.2 (12.41)
55.2 (2.17)
174.9
(6.89)
234.9
(9.25)
204.9
(8.07)
∅ 22.2
(0.87)
∅ 62.7
(2.47)
567.4
(22.34)
605.5
(23.84)
335.0 (13.19)
370.0 (14.57) 259.2 (10.21)
∅ 8.5
(0.33)
