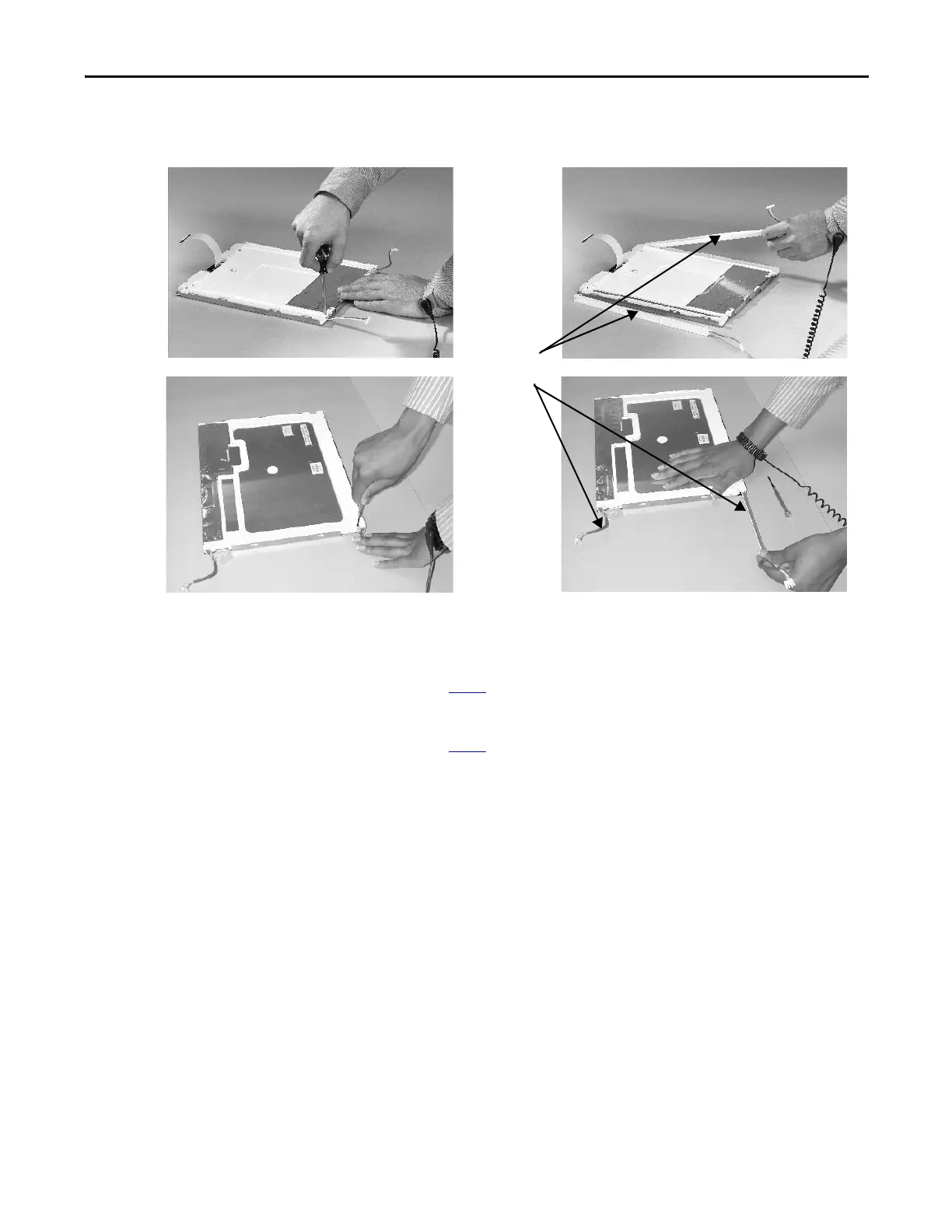

For the 1500 series B displays, remove the tape, then remove the
backlights.
b. Insert the new backlights then secure each with the same screws from
the previous step, and torque to 0.117 N•m (1.04 lb•in).
8. Attach the LCD display connector to the circuit board.
Refer to step 4
.
9. Attach the backlight connector to the circuit board.
Refer to step 5
.
10. Secure the LCD display.
a. Attach the display bracket then secure the display in the bracket for the
700 series C display.
b. Attach the four screws for all other displays.
Tighten the screws and torque to 0.58 N•m (5…7 lb•in).
11. Replace the display module bezel.
