Bulletin 700S-P
Safety Control Relays

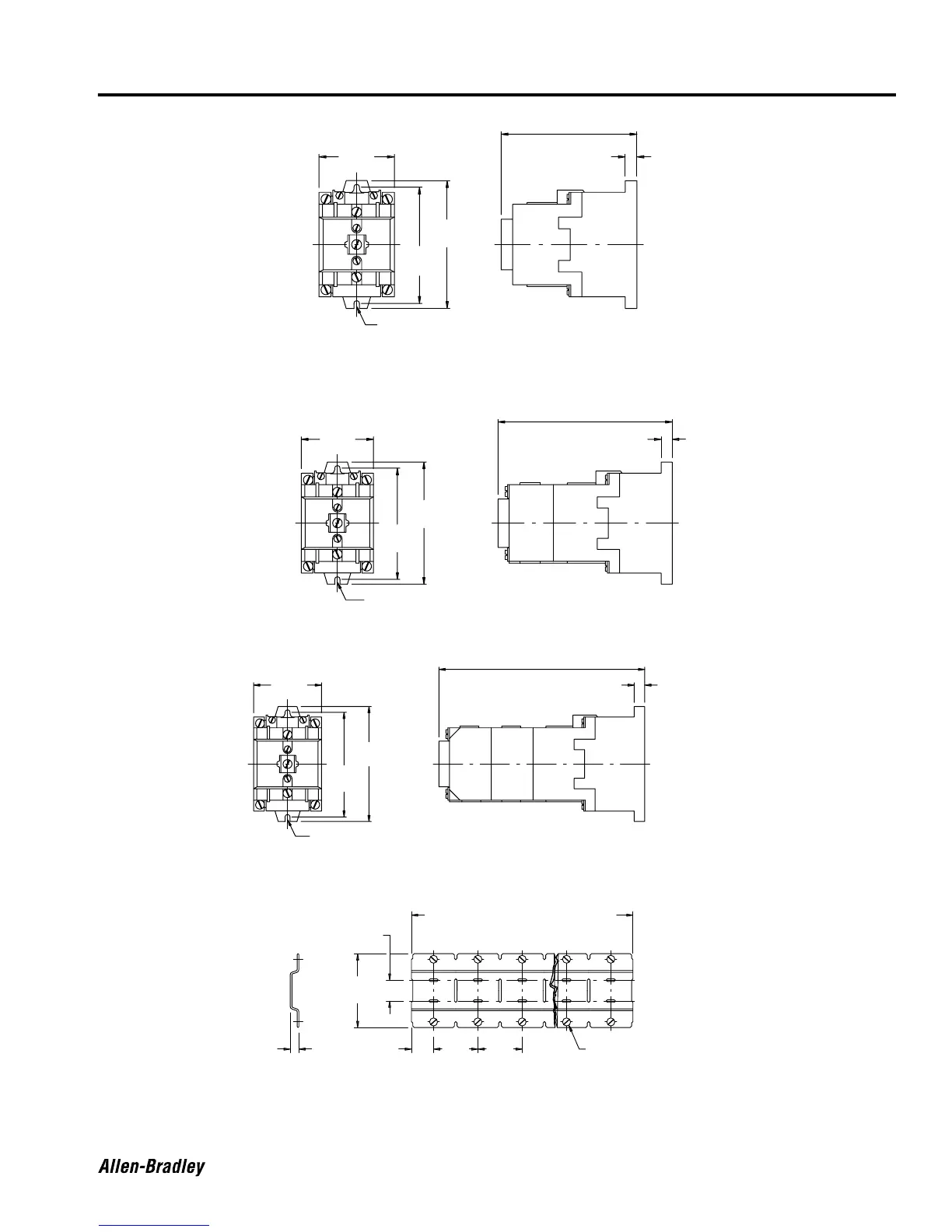

Approximate Dimensions
Dimensions in millimeters (inches). Dimensions are not intended to be used for manufacturing purposes.
AC – 97.63 (3-27/32)
7.94
(5/16)
DC – 120.49 (4-3/4)
89.69
(3-17/32)
79.38
(3-1/8)
57.15
(2-1/4)
Provision for 2–#8/#10 Mfg. Screws
2-pole and 4-pole Bulletin 700S-P Relay
Approximate Shipping Weight AC – 0.68 kg (1.5 lbs.),
DC – 1.34 kg (2.95 lbs.)
AC – 130.97 (5-5/32)
7.94
(5/16)
DC – 153.83 (6-1/16)
89.63
(3-17/32)
79.38
(3-1/8)
57.15
(2-1/4)
Provision for 2–#8/#10 Mfg. Screws
6- and 8-pole Bulletin 700S-P Relay
Approximate Shipping Weight AC – 0.79 kg (1.75 lbs.),
DC – 1.45 k
g
(
3.20 lbs.
)
AC – 164.31 (6-15/32)
7.94
(5/16)
DC – 187.17 (7-3/8)
89.69
(3-17/32)
79.38
(3-1/8)
57.15
(2-1/4)
Provision for 2–#8/#10 Mfg. Screws
10- and 12-pole Bulletin 700S-P Relay
Approximate Shipping Weight AC – 1.02 kg (2.25 lbs.),
DC – 1.68 kg (3.7 lbs.)
(Captive)
#8 Screws
{
Cat. No. 700
57.15
28.58
(2-1/4)
(1-1/8)
92.08
(3-5/8)
12.7
(1/2)
34.93
(1-3/8)
-MP4 229 (9)
-MP8 457 (18)
-MP12 686 (27)
-MP16 914 (36)
57.15
(2-1/4)
Secure the mounting strip with 2 screws at each end relay position.
Use a minimum of one screw at the 3rd, 5th, 7th, etc., relay positions.
Alternate between upper and lower horizontal slots.
Universal Mounting Rail for Bulletin 700-P, -PH, -PK, and 700S-P relays.
